Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-03-04JSCMC 450UH 3A 2LN TH |
90 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 450 µH @ 1 kHz | 3A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SSHB21H-R031580CMC 158MH 300MA 2LN TH |
93 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 158 mH @ 10 kHz | 300mA | 3.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R25044CMC 4.4MH 2.5A 2LN TH |
83 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 4.4 mH @ 10 kHz | 2.5A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-15080CMC 8MH 1.5A 2LN TH |
97 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 10 kHz | 1.5A | 310mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21H-30024CMC 2.4MH 3A 2LN TH |
93 |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.4 mH @ 10 kHz | 3A | 80mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

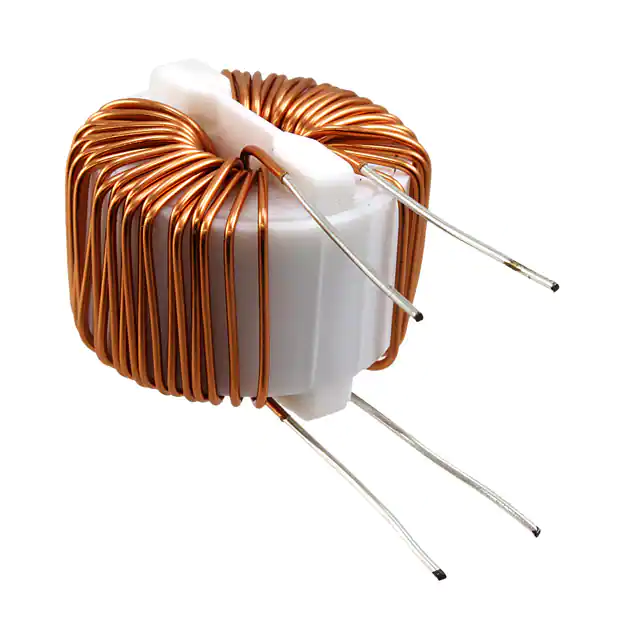

SC-02-300CMC 3MH 2A 2LN TH |
1 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

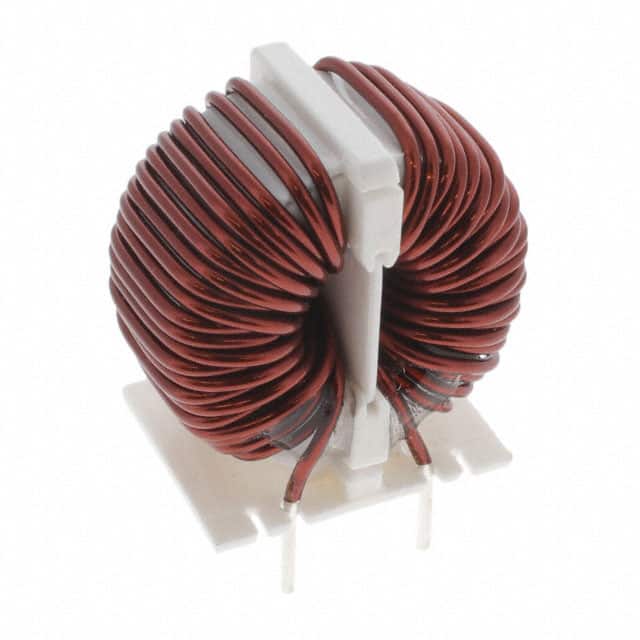

SC-08-20JCMC 2MH 8A 2LN TH |
88 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 8A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-800CMC 8MH 2A 2LN TH |
49 |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 2A | 150mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-03-30JCMC 3MH 3A 2LN TH |
42 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 3A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-101CMC 1MH 6A 2LN TH |
60 |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-204A4CMC 500MA 4LN 600 OHM TH |
99 |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 600 Ohms @ 7 MHz | - | 500mA | 120mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
|
SC-11-16JCMC 1.6MH 11A 2LN TH |
28 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 11A | 13mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
SC-05-21JCMC 2MH 5A 2LN TH |
55 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-42JCMC 4.2MH 7A 2LN TH |
100 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 7A | 42mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-14JCMC 1.4MH 10A 2LN TH |
99 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.4 mH @ 100 kHz | 10A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SN16P-130NMC 10.0UH 10.0A 0.0050 OHM TH |
98 |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-18-095JCMC 950UH 18A 2LN TH |
46 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 950 µH @ 10 kHz | 18A | 5.5mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-150-1R3A006JHCMC 220UH 15A 2LN TH AEC-Q200 |
46 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR-040-0R8A100JCMC 10MH 4A 2LN TH |
70 |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 4A | 66mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SC-07-50JCMC 5MH 7.3A 2LN TH |
36 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 7.3A | 27mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
