Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H16103JVCAP FILM 10000PF 5% 1.6KVDC RAD |
52,593 |
|
Datasheet | Radial | 10000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.315" W (23.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

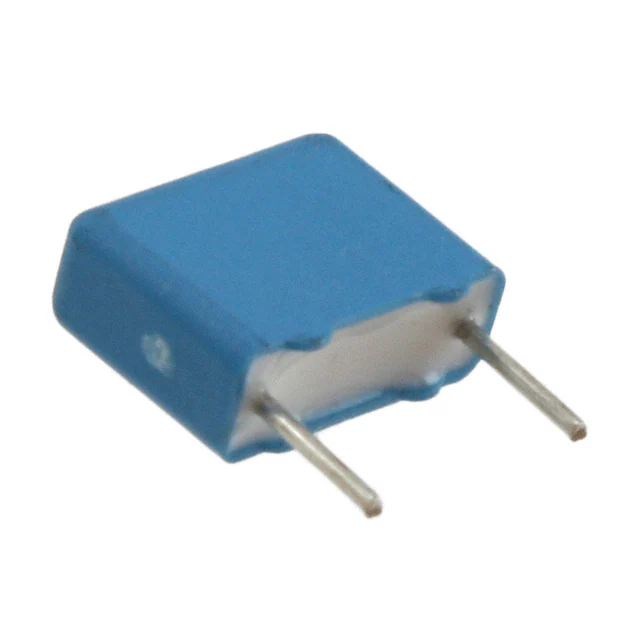

PHE450KK5100JR05CAP FILM 10000PF 5% 400VDC RAD |
4,091 |
|
Datasheet | Radial | 10000 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
ECH-U1H222JB5CAP FILM 2200PF 5% 50VDC 0805 |
3,562 |
|
Datasheet | 0805 (2012 Metric) | 2200 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
R76PI24705050JFILM, RADIAL, PULSE, DOUBLE META |
2,902 |
|
Datasheet | Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F862BP224K310ZCAP FILM 0.22UF 10% 630VDC RAD |
1,989 |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-UBAF472V5CAP FILM 0.0047UF 10% 300VAC RAD |
1,510 |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R71VF31004030KCAP FILM 0.1UF 10% 520VDC RADIAL |
5,636 |
|
Datasheet | Radial | 0.1 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
PHE840MA6100KA04R17CAP FILM 0.1UF 10% 760VDC RADIAL |
2,261 |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R46KN322000M1MCAP FILM 0.22UF 20% 560VDC RAD |
4,557 |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R82EC4100DQ70KCAP FILM 1UF 10% 100VDC RADIAL |
1,505 |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R46KI347000N0MCAP FILM 0.47UF 20% 560VDC RAD |
68,442 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2W105KCAP FILM 1UF 10% 450VDC RADIAL |
40,542 |
|
Datasheet | Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1H273GX5CAP FILM 0.027UF 2% 50VDC 1210 |
18,793 |
|
Datasheet | 1210 (3225 Metric) | 0.027 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R413I222050T0KCAP FILM 0.022UF 10% 1.5KVDC RAD |
2,102 |
|
Datasheet | Radial | 0.022 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-UAAF474KCAP FILM 0.47UF 10% 275VAC RAD |
1,723 |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R82CC4100AA60JCAP FILM 1UF 5% 50VDC RADIAL |
2,802 |
|
Datasheet | Radial | 1 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
PHE426HJ6220JR05CAP FILM 0.22UF 5% 250VDC RADIAL |
4,114 |
|
Datasheet | Radial | 0.22 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1H333GX5CAP FILM 0.033UF 2% 50VDC 1210 |
111,623 |
|
Datasheet | 1210 (3225 Metric) | 0.033 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E6104JFCAP FILM 0.1UF 5% 630VDC RADIAL |
23,300 |
|
Datasheet | Radial | 0.1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.248" W (18.50mm x 6.30mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
 Series.jpg)
|
ECW-FE2W105JCAP FILM 1UF 5% 450VDC RADIAL |
13,162 |
|
Datasheet | Radial | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
