Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

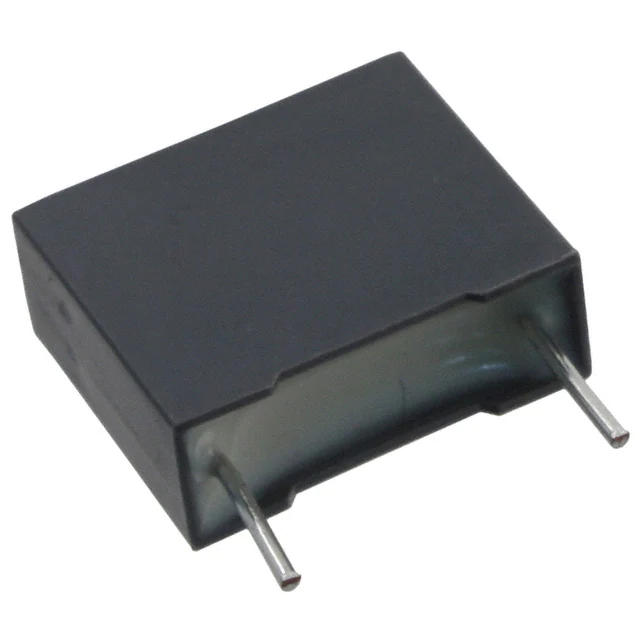

R46KF310000P1MCAP FILM 0.1UF 20% 560VDC RADIAL |
14,633 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UBAF103MCAP FILM 0.01UF 20% 300VAC RADIA |
3,601 |
|
Datasheet | Radial | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
R82DC4150AA60JCAP FILM 1.5UF 5% 63VDC RADIAL |
3,263 |
|
Datasheet | Radial | 1.5 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
-H-2.jpg)
|
ECW-U1682JX5CAP FILM 6800PF 5% 100VDC 1210 |
3,475 |
|
Datasheet | 1210 (3225 Metric) | 6800 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E6154KFCAP FILM 0.15UF 10% 630VDC RAD |
2,242 |
|
Datasheet | Radial | 0.15 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.295" W (18.50mm x 7.50mm) | 0.646" (16.40mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECH-U1H123GX5CAP FILM 0.012UF 2% 50VDC 1210 |
3,535 |
|
Datasheet | 1210 (3225 Metric) | 0.012 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
R463I322000M2KCAP FILM 0.22UF 10% 630VDC RAD |
3,006 |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|
ECH-U1H153GX5CAP FILM 0.015UF 2% 50VDC 1210 |
11,842 |
|
Datasheet | 1210 (3225 Metric) | 0.015 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
 Series Style Straight 18x7.jpg)
|
ECW-FA2J224JCAP FILM 0.22UF 5% 630VDC RADIAL |
4,507 |
|
Datasheet | Radial | 0.22 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.280" W (18.20mm x 7.10mm) | 0.484" (12.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
MMK5105K100J06L16.5TR18CAP FILM 1UF 10% 100VDC RADIAL |
2,170 |
|
Datasheet | Radial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECQ-E6334KFCAP FILM 0.33UF 10% 630VDC RAD |
1,922 |
|
Datasheet | Radial | 0.33 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.307" W (26.00mm x 7.80mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KN31500001KCAP FILM 0.15UF 10% 560VDC RAD |
1,348 |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HJ6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
28,122 |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71XF347050H0MFILM, RADIAL, PULSE, SINGLE META |
5,681 |
|
Datasheet | Radial | 0.47 µF | ±20% | 160V | 450V | Polypropylene (PP), Metallized | 42 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R76UI01004040JCAP FILM 100PF 5% 2KVDC RADIAL |
5,179 |
|
Datasheet | Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE426DJ6100JR05CAP FILM 0.1UF 5% 100VDC RADIAL |
2,745 |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UBAF332V5CAP FILM 0.0033UF 10% 300VAC RAD |
1,840 |
|
Datasheet | Radial | 3300 pF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R75PI310050H3JCAP FILM 0.1UF 5% 630VDC RADIAL |
1,726 |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2105JBCAP FILM 1UF 5% 250VDC RADIAL |
1,403 |
|
Datasheet | Radial | 1 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602" L x 0.276" W (15.30mm x 7.00mm) | 0.591" (15.00mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
 Series Style B.jpg)
|
ECW-F2W224JAQCAP FILM 0.22UF 5% 450VDC RADIAL |
60,770 |
|
Datasheet | Radial | 0.22 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.256" W (13.00mm x 6.50mm) | 0.673" (17.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
