Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

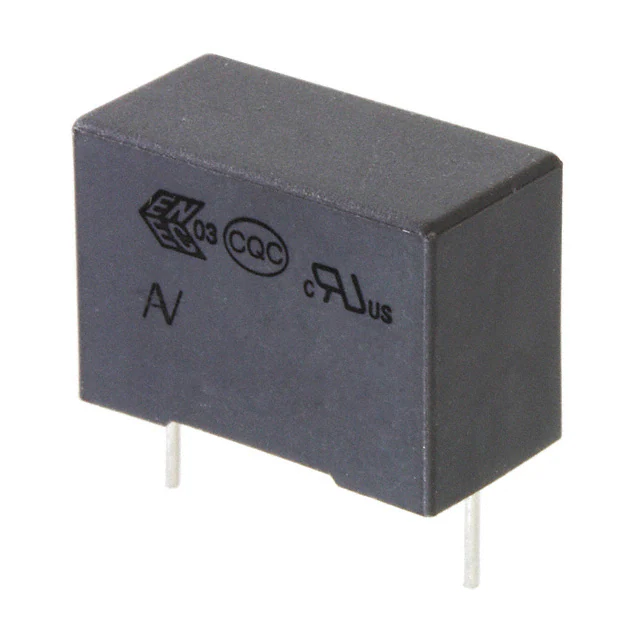

R46KI333000N1MCAP FILM 0.33UF 20% 560VDC RAD |
582 |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2W225K4CAP FILM 2.2UF 10% 450VDC RADIAL |
20,569 |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.760" (19.30mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R413I222000M1MCAP FILM 0.022UF 20% 1KVDC RAD |
18,231 |
|
Datasheet | Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-E6224KFCAP FILM 0.22UF 10% 630VDC RAD |
3,935 |
|
Datasheet | Radial | 0.22 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECQ-E1105KFCAP FILM 1UF 10% 100VDC RADIAL |
2,879 |
|
Datasheet | Radial | 1 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.264" W (12.00mm x 6.70mm) | 0.591" (15.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R474N310050A1KV057CAP FILM 0.1UF 10% 1KVDC RADIAL |
1,230 |
|
Datasheet | Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-FD2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
642 |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.307" W (17.80mm x 7.80mm) | 0.500" (12.70mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76QD0220SE00JCAP FILM 220PF 5% 1KVDC RADIAL |
7,605 |
|
Datasheet | Radial | 220 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76UI0100SE40JCAP FILM 100PF 5% 2KVDC RADIAL |
4,753 |
|
Datasheet | Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 6.366 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

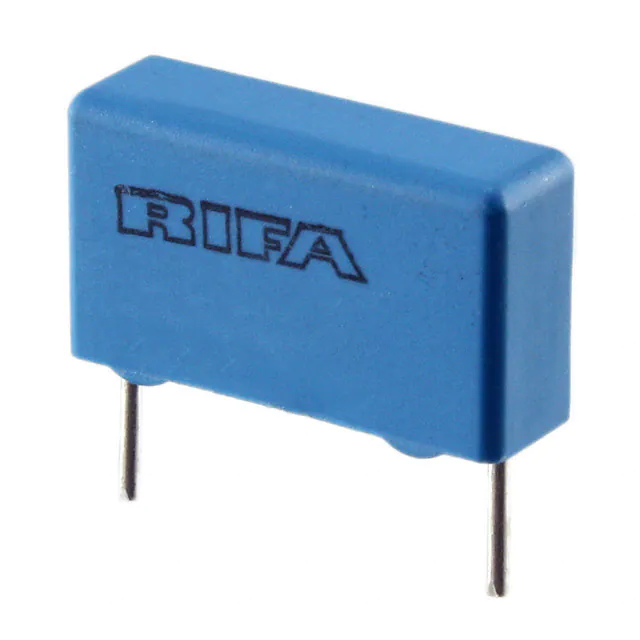

PHE450PB5100JR06CAP FILM 10000PF 5% 1KVDC RADIAL |
2,792 |
|
Datasheet | Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R73UI0470SE03JCAP FILM 470PF 5% 2KVDC RADIAL |
5,013 |
|
Datasheet | Radial | 470 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
ECQ-E2155KFCAP FILM 1.5UF 10% 250VDC RADIAL |
3,842 |
|
Datasheet | Radial | 1.5 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.701" (17.80mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
 Series Style D 6-W.jpg)
|
ECW-F2224JAQCAP FILM 0.22UF 5% 250VDC RADIAL |
1,456 |
|
Datasheet | Radial | 0.22 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.248" W (13.00mm x 6.30mm) | 0.665" (16.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F242JCAP FILM 2400PF 5% 3KVDC RADIAL |
1,380 |
|
Datasheet | Radial | 2400 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.240" W (25.80mm x 6.10mm) | 0.429" (10.90mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R463I33305002KCAP FILM 0.33UF 10% 630VDC RAD |
1,300 |
|
Datasheet | Radial | 0.33 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E1824JFCAP FILM 0.82UF 5% 100VDC RADIAL |
1,178 |
|
Datasheet | Radial | 0.82 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
 Series Straight 18x10.jpg)
|
ECW-FA2J474JCAP FILM 0.47UF 5% 630VDC RADIAL |
1,048 |
|
Datasheet | Radial | 0.47 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.394" W (18.20mm x 10.00mm) | 0.594" (15.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2395KBCAP FILM 3.9UF 10% 250VDC RADIAL |
507 |
|
Datasheet | Radial | 3.9 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819" L x 0.425" W (20.80mm x 10.80mm) | 0.819" (20.80mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
ECW-U1103JX5CAP FILM 10000PF 5% 100VDC 1210 |
7,493 |
|
Datasheet | 1210 (3225 Metric) | 10000 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-H16102JVCAP FILM 1000PF 5% 1.6KVDC RAD |
1,474 |
|
Datasheet | Radial | 1000 pF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
