Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H103JB5CAP FILM 10000PF 5% 50VDC 1206 |
8,331 |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-FD2W105K4CAP FILM 1UF 10% 450VDC RADIAL |
3,870 |
|
Datasheet | Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E4224KFCAP FILM 0.22UF 10% 400VDC RAD |
2,000 |
|
Datasheet | Radial | 0.22 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R46KN322000M1KCAP FILM 0.22UF 10% 560VDC RAD |
8,323 |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R82DC4100Z360JCAP FILM 1UF 5% 63VDC RADIAL |
7,062 |
|
Datasheet | Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE840EB6100KB05R17CAP FILM 0.1UF 10% 760VDC RADIAL |
16,540 |
|
Datasheet | Radial | 0.1 µF | ±10% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

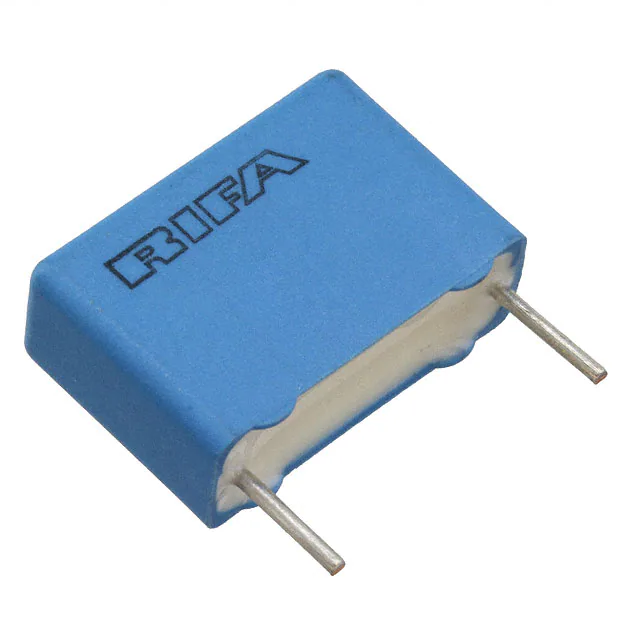

PHE450XB4220JB10R17CAP FILM 2200PF 5% 3KVDC RADIAL |
12,410 |
|
Datasheet | Radial | 2200 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R75QD0470Z330JCAP FILM 470PF 5% 1KVDC RADIAL |
6,451 |
|
Datasheet | Radial | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R66ED3100CK7AJCAP FILM 0.1UF 5% 100VDC RADIAL |
3,416 |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W105JACAP FILM 1UF 5% 450VDC RADIAL |
1,824 |
|
Datasheet | Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-E6393JFCAP FILM 0.039UF 5% 630VDC RAD |
1,161 |
|
Datasheet | Radial | 0.039 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.567" (14.40mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
 Series Style D.jpg)
|
ECW-F2104HAQCAP FILM 0.1UF 3% 250VDC RADIAL |
1,154 |
|
Datasheet | Radial | 0.1 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.614" (15.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECQ-E4334KFCAP FILM 0.33UF 10% 400VDC RAD |
10,166 |
|
Datasheet | Radial | 0.33 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.626" (15.90mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
R46KI347050P1MCAP FILM 0.47UF 20% 560VDC RAD |
23,028 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-FD2W105J4CAP FILM 1UF 5% 450VDC RADIAL |
3,058 |
|
Datasheet | Radial | 1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.307" W (17.50mm x 7.80mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN333040H1MCAP FILM 0.33UF 20% 560VDC RAD |
2,768 |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
SMR5103J50J01L16.5CBULKCAP FILM 10000PF 5% 50VDC RADIAL |
4,293 |
|
Datasheet | Radial | 10000 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|

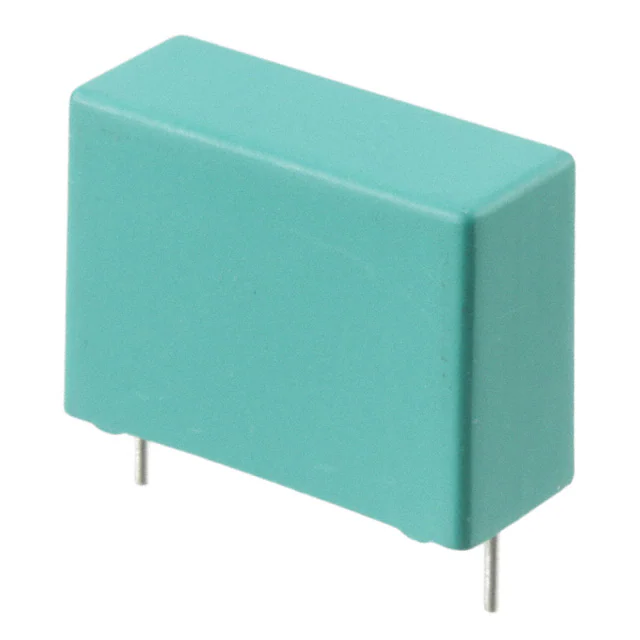

PHE850EB5330MB12R17CAP FILM .033UF 20% 1.25KVDC RAD |
1,600 |
|
Datasheet | Radial | 0.033 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
.jpg)
|
ECH-U1C563GX5CAP FILM 0.056UF 2% 16VDC 1210 |
975 |
|
Datasheet | 1210 (3225 Metric) | 0.056 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
SMR5103J100J01L16.5CBULKCAP FILM 10000PF 5% 100VDC RAD |
797 |
|
Datasheet | Radial | 10000 pF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
