Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ECH-U1C223GX5CAP FILM 0.022UF 2% 16VDC 1206 |
16,101 |
|
Datasheet | 1206 (3216 Metric) | 0.022 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R413I210050T0KCAP FILM 10000PF 10% 1.5KVDC RAD |
4,166 |
|
Datasheet | Radial | 10000 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-HA3C332JBCAP FILM 3300PF 5% 1.6KVDC RAD |
3,712 |
|
Datasheet | Radial | 3300 pF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.220" W (17.80mm x 5.60mm) | 0.528" (13.40mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R463I310000M1KCAP FILM 0.1UF 10% 630VDC RADIAL |
3,163 |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413I21000000MCAP FILM 10000PF 20% 1KVDC RAD |
6,686 |
|
Datasheet | Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R463I310050M1KCAP FILM 0.1UF 10% 630VDC RADIAL |
1,930 |
|
Datasheet | Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E6683KFCAP FILM 0.068UF 10% 630VDC RAD |
2,455 |
|
Datasheet | Radial | 0.068 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.228" W (18.50mm x 5.80mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
R413F147000M1MCAP FILM 4700PF 20% 1KVDC RADIAL |
2,635 |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-E2474JBCAP FILM 0.47UF 5% 250VDC RADIAL |
1,509 |
|
Datasheet | Radial | 0.47 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.484" L x 0.244" W (12.30mm x 6.20mm) | 0.488" (12.40mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
.jpg)
|
ECH-U1H822GX5CAP FILM 8200PF 2% 50VDC 1206 |
4,354 |
|
Datasheet | 1206 (3216 Metric) | 8200 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) | Solder Pads | - | General Purpose | - | - |
|
R76MI31005050JFILM, RADIAL, PULSE, DOUBLE META |
2,750 |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E6563KFCAP FILM 0.056UF 10% 630VDC RAD |
1,686 |
|
Datasheet | Radial | 0.056 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.213" W (18.50mm x 5.40mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-FD2W225JCAP FILM 2.2UF 5% 450VDC RADIAL |
1,120 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.437" W (17.50mm x 11.10mm) | 0.563" (14.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R82EC3680DQ70KCAP FILM 0.68UF 10% 100VDC RAD |
11,840 |
|
Datasheet | Radial | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
-H-1.jpg)
|
ECW-U1472JX5CAP FILM 4700PF 5% 100VDC 1206 |
7,169 |
|
Datasheet | 1206 (3216 Metric) | 4700 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R75UI11004040JCAP FILM 1000PF 5% 2KVDC RADIAL |
3,454 |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-UAAF224MACAP FILM 0.22UF 20% 275VAC RAD |
22,612 |
|
Datasheet | Radial | 0.22 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.295" W (17.50mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

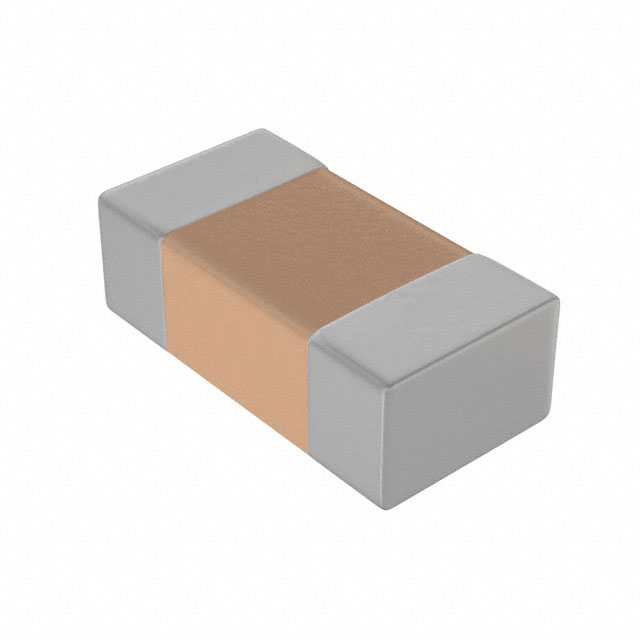

LDECA2330KA0N00CAP FILM 0.033UF 10% 50VDC 1206 |
2,166 |
|
Datasheet | 1206 (3216 Metric) | 0.033 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-UBAF102MCAP FILM 0.001UF 20% 300VAC RADI |
1,675 |
|
Datasheet | Radial | 1000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
.jpg)
|
ECH-U1H333JX5CAP FILM 0.033UF 5% 50VDC 1210 |
27,655 |
|
Datasheet | 1210 (3225 Metric) | 0.033 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
