Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ECH-U1C123GX5CAP FILM 0.012UF 2% 16VDC 1206 |
4,938 |
|
Datasheet | 1206 (3216 Metric) | 0.012 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H562GX5CAP FILM 5600PF 2% 50VDC 1206 |
4,742 |
|
Datasheet | 1206 (3216 Metric) | 5600 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2224JBCAP FILM 0.22UF 5% 250VDC RADIAL |
2,875 |
|
Datasheet | Radial | 0.22 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.437" (11.10mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECW-HA3C472HCAP FILM 4700PF 3% 1.6KVDC RAD |
1,976 |
|
Datasheet | Radial | 4700 pF | ±3% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.252" W (17.80mm x 6.40mm) | 0.358" (9.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KI368000P0KCAP FILM 0.68UF 10% 560VDC RAD |
14,660 |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413F147050T1KCAP FILM 4700PF 10% 1.5KVDC RAD |
7,229 |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R463I310040M1MCAP FILM 0.1UF 20% 630VDC RAD |
6,349 |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413I147050T0KCAP FILM 4700PF 10% 1.5KVDC RAD |
4,468 |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-FD2W104J4CAP FILM 0.1UF 5% 450VDC RADIAL |
2,774 |
|
Datasheet | Radial | 0.1 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.177" W (12.60mm x 4.50mm) | 0.547" (13.90mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Style Straight.jpg)
|
ECW-FA2J104JCAP FILM 0.1UF 5% 630VDC RADIAL |
2,756 |
|
Datasheet | Radial | 0.1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.205" W (18.20mm x 5.20mm) | 0.409" (10.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R413I2220CKM1KCAP FILM 0.022UF 10% 1KVDC RAD |
2,188 |
|
Datasheet | Radial | 0.022 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECQ-UAAF103KCAP FILM 0.01UF 10% 275VAC RADIA |
1,987 |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|

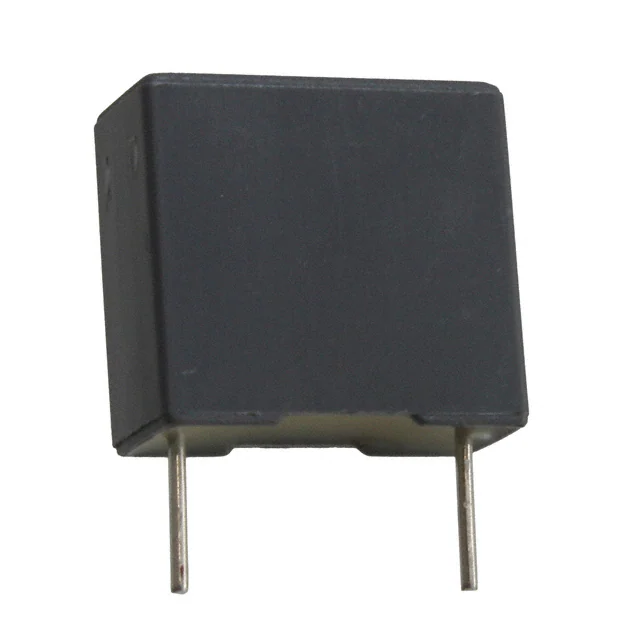

R463F310050M1MCAP FILM 0.1UF 20% 630VDC RADIAL |
1,593 |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2684KFCAP FILM 0.68UF 10% 250VDC RAD |
1,401 |
|
Datasheet | Radial | 0.68 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECQ-UAAF224KCAP FILM 0.22UF 10% 275VAC RAD |
6,279 |
|
Datasheet | Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.295" W (17.50mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R474I2470CKA2MCAP FILM 0.047UF 20% 1KVDC RAD |
5,749 |
|
Datasheet | Radial | 0.047 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECQ-E6103JFCAP FILM 10000PF 5% 630VDC RAD |
2,225 |
|
Datasheet | Radial | 10000 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.177" W (12.00mm x 4.50mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
ECH-U1C183GX5CAP FILM 0.018UF 2% 16VDC 1206 |
107,351 |
|
Datasheet | 1206 (3216 Metric) | 0.018 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1C153GX5CAP FILM 0.015UF 2% 16VDC 1206 |
22,420 |
|
Datasheet | 1206 (3216 Metric) | 0.015 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R46KF210000N0KCAP FILM 10000PF 10% 560VDC RAD |
21,714 |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
