Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD8411AR-EVALZEVAL BOARD FOR AD8411A |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended, Rail-to-Rail | 10V/µs | 2.7 MHz | - | 7.8 mA | 2.9V ~ 5.5V | AD8411A | Board(s) |
|
|
AD8410AR-EVALZEVAL BOARD FOR AD8410A |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 10V/µs | 2.2 MHz | - | 7.8 mA | 2.9V ~ 5.5V | AD8410A | Board(s) |
|
|
DEM-FDA-SOIC-EVMEVAL BOARD FOR 8-SOIC |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
OPA2392DSBGA-EVMEVAL BOARD FOR OPA2392 |
5 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 4.5V/µs | - | 65 mA | 1.22 mA | 1.7V ~ 5.5V, ±0.85V ~ 2.75V | OPA2392 | Board(s) |
|
|
OPA2391DSBGAEVMEVAL BOARD FOR OPA2391 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 1V/µs | - | 60 mA | 23.5 µA | 1.7V ~ 5.5V, ±0.85V ~ 2.75V | OPA2391 | Board(s) |
|
|
AD8411ARM-10-EVALZEVALUATION BOARD 10L MSOP |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
EVAL-ADA4511-2ARZEVAL BOARD FOR ADA4511-2 |
4 |
|
- |
- | Box | Active | 2 - Dual | General Purpose | Differential, Rail-to-Rail | 19V/µs | 13.5 MHz | 22 mA | 1.45 mA | 6V ~ 40V, ±3V ~ 20V | ADA4511-2 | Board(s) |
|
|
EVAL-ADA4511-2ARMZEVAL BOARD FOR ADA4511-2 |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Differential, Rail-to-Rail | 19V/µs | 13.5 MHz | 22 mA | 1.45 mA | 6V ~ 40V, ±3V ~ 20V | ADA4511-2 | Board(s) |
|
|
TLR377GYZ-EVK-001EVAL BOARD FOR TLR377 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Rail-to-Rail | 2V/µs | - | 25 mA | 585 µA | 1.8V ~ 5.5V, ±0.9V ~ 2.75V | TLR377 | Board(s) |
|
|
EVAL-ADA4620-2ARZEVAL BOARD - SOIC DUAL |
0 |
|
- |
- | Box | Active | 1 - Single | J-FET | Single-Ended, Rail-to-Rail | 32V/µs | 16.5 MHz | - | 1.3 mA | 4.5V ~ 36V, ±2.25V ~ 18V | ADA4620-2 | - |
|
ISL28005FH-50EVAL1ZEVAL BOARD FOR ISL28005 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 0.67V/µs | - | - | 50 µA | - | ISL28005 | Board(s) |
|
ISL28133EVAL1ZEVAL BOARD FOR ISL28133 SOT23-5 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Chopper (Zero-Drift) | Single-Ended, Rail-to-Rail | 0.2V/µs | - | 26 mA | 18 µA | 2.4V ~ 5.5V, ±1.2V ~ 2.75V | ISL28133 | Board(s) |
|
|
EVAL-ADUM3195EBZEVAL BOARD FOR ADUM3195 |
0 |
|
Datasheet | iCoupler® | Box | Active | 1 - Single | Isolation | Single-Ended | - | 210 kHz | 1 mA | 5.9 mA | 4.5V ~ 5.5V | ADuM3195 | Board(s) |
|
|
DIYAMC-0-EVMEVAL BOARD D DEN DUB DWV |
0 |
|
- |
- | Bulk | Active | 3 - Triple | Isolation | Differential, Single-Ended | - | - | - | - | - | - | Unpopulated (Bare) Board(s) |
|
|
INA310AEVMEVAL BOARD FOR INA310A |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2.5V/µs | 1.3 MHz | - | 1.6 mA | 2.7V ~ 20V | INA310A | Board(s) |
|

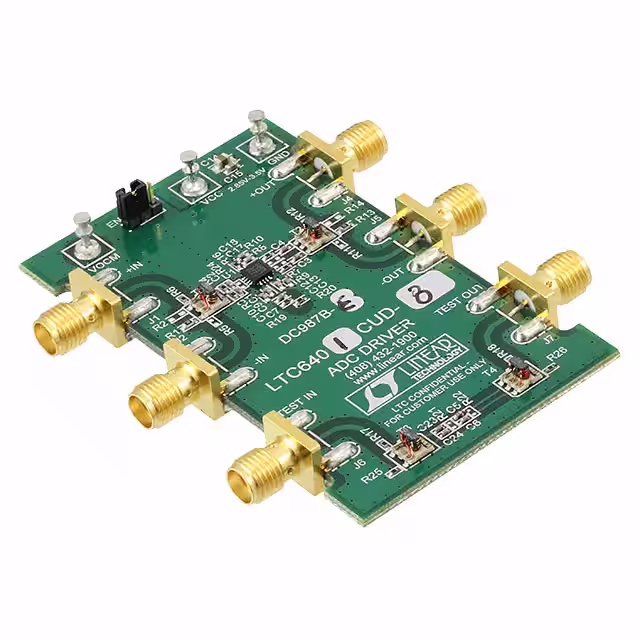

DC987B-EEVAL BOARD FOR LTC6401-8 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | - | 3400V/µs | 2.22 GHz | 10 mA | 45 mA | 2.85V ~ 3.5V | LTC6401-8 | Board(s) |
|
|
OPA593EVMEVAL BOARD FOR OPA593 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 45V/µs | - | 300 mA | 3.25 mA | 10V ~ 85V, ±5V ~ 42.5V | OPA593 | Board(s) |
|
|
EVAL-AD8422ACPZEVALUATION BOARD |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Rail-to-Rail | - | 2.2 MHz | 20 mA | 368 µA | 4.6V ~ 36V, ±2.3V ~ 18V | AD8422 | Board(s) |
|
ISL28133ISENSEV1ZEVALUATION BOARD FOR ISL28133 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Chopper (Zero-Drift) | Single-Ended, Rail-to-Rail | 0.2V/µs | - | 26 mA | 18 µA | 1.65V ~ 5.5V | ISL28133 | Board(s) |
|
|
LOG200EVMEVAL BOARD FOR LOG200 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Differential | 22V/µs | 6 MHz | 20 mA | 9.5 mA | 4.5V ~ 12V, ±2.25V ~ 6V | LOG200 | Board(s) |
