Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
551600083-001/NOPBBOARD FOR SOT23 LMH6611/18 |
0 |
|
Datasheet | WEBENCH® Buildit Board | Box | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | LMH6611, LMH6618 | Unpopulated (Bare) Board(s) |
|
STEVAL-CCA022V1DEMO BOARD FOR SINGLE OP-AMPS |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | - | - | - | - | - | - | SC-70-5, SOT-23-5 Packages | Unpopulated (Bare) Board(s) |
|
LMV921EVALEVAL BOARD FOR LMV921 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 0.45V/µs | - | 98 mA | 160 µA | 1.5V ~ 5V | LMV921 | Board(s) |
|
|
LMH730216BOARD EVAL HS MONO AMP SOT23 |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
|
LMH730165BOARD EVALUATION |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SC-70-5, SC-70-6 Package | Unpopulated (Bare) Board(s) |
|

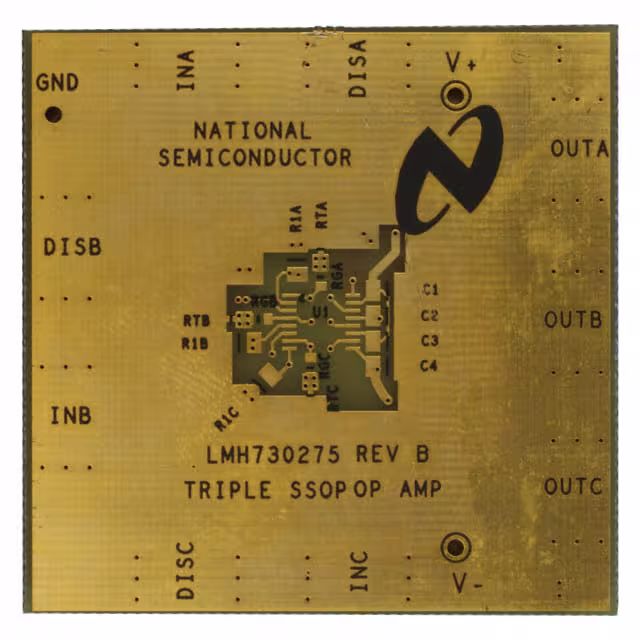

LMH730275/NOPBEVAL BOARD HS TRIPLE SSOP OPAMP |
0 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | 3 - Triple | General Purpose | - | - | - | - | - | - | 16-SSOP Package | Unpopulated (Bare) Board(s) |
|
|
LMH730268/NOPBBOARD EVAL FOR LPV521/511/LMV721 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SC-70-5 Package | Unpopulated (Bare) Board(s) |
|
|
LMC6035IBPCONVBOARD EVALUATION LMC6035IBP |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | LMC6035IBP | Unpopulated (Bare) Board(s) |
|
551600075-001/NOPBBOARD FOR SOIC LMH6612/19 |
2 |
|
Datasheet | WEBENCH® Buildit Board | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | LMH6612, LMH6619 | Unpopulated (Bare) Board(s) |
|
LMH730121/NOPBBOARD EVAL FOR 8SOIC DUAL OPAMPS |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-PSOP Package | Unpopulated (Bare) Board(s) |
|
|
551013276-001/NOPBEVAL BOARD OPAMP 8MSOP |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-MSOP Package | Unpopulated (Bare) Board(s) |
.jpg)
|
551013277-001/NOPBEVAL BOARD OPAMP 8SOIC |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
LMP7721MAEVALEVAL BOARD FOR LMP7721 |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended | 12.8V/µs | - | 60 mA | 1.3 mA | 1.8V ~ 5.5V, ±0.9V ~ 2.75V | LMP7721 | Board(s) |
|
STEVAL-CCA057V2BOARD DEMO BARE PCB OPAMP 8MSOP |
5 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-MSOP Package | Unpopulated (Bare) Board(s) |
|
STEVAL-CCA057V4BOARD DEMO BARE PCB OPAMP 8DFN |
4 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-DFN-EP Package | Unpopulated (Bare) Board(s) |
|
STEVAL-CCA057V5BOARD DEMO BARE PCB OPAMP 8DFN |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-DFN Package | Unpopulated (Bare) Board(s) |
|
AD823AR-EBZBOARD EVAL FOR AD823AR |
0 |
|
Datasheet | - | Bulk | Obsolete | 2 - Dual | J-FET | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
AD8032AR-EBZBOARD EVAL FOR AD8032AR |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Voltage Feedback | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
AD8031ART-EBZBOARD EVAL FOR AD8031ART |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Voltage Feedback | - | - | - | - | - | - | SOT-23-5 Package | Unpopulated (Bare) Board(s) |
|
AD8032ARM-EBZBOARD EVAL FOR AD8032ARM |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Voltage Feedback | - | - | - | - | - | - | 8-MSOP Package | Unpopulated (Bare) Board(s) |
