Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC954A-ALT6402-6 300MHZ DIFF IN/OUT ADC |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Differential | Differential | 400V/µs | - | - | - | 4V ~ 5.5V, ±2V ~ 2.5V | LT6402-6 | Board(s) |
|

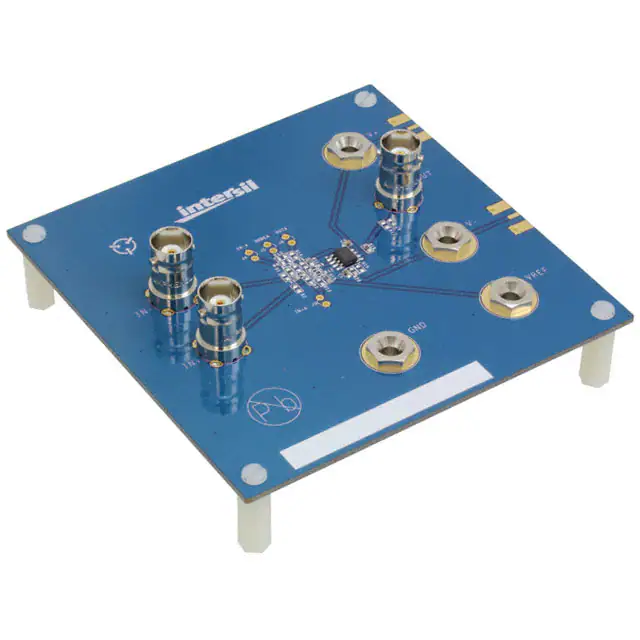

ISL28127SOICEVAL1ZEVAL BOARD FOR ISL28127 8SOIC |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 3.6V/µs | - | - | 2.2 mA | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28127 | Board(s) |
|

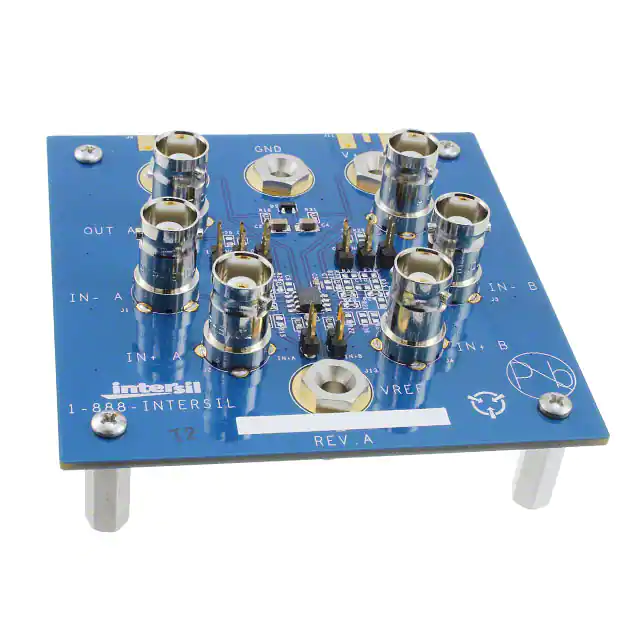

ISL28210SOICEVAL1ZEVAL BOARD FOR ISL28210 8SOIC |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | J-FET | Single-Ended | 20V/µs | - | 50 mA | 2.55 mA | 9V ~ 40V, ±4.5V ~ 20V | ISL28210 | Board(s) |
|

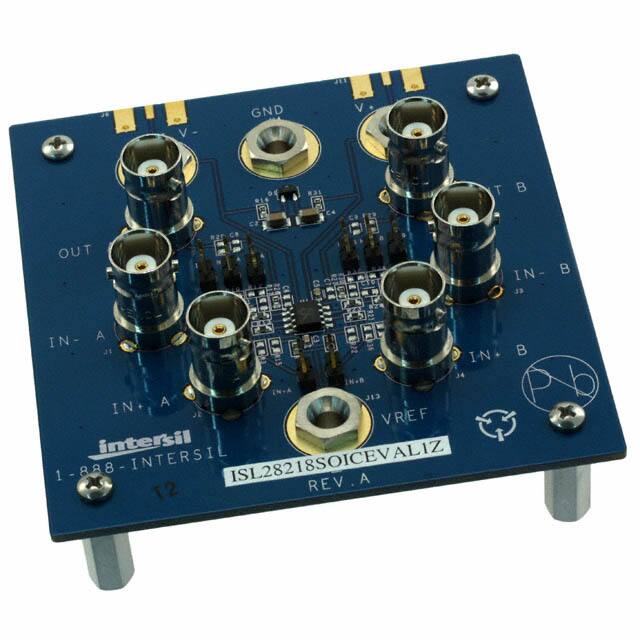

ISL28218SOICEVAL1ZEVAL BOARD FOR ISL28218 8SOIC |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 1.2V/µs | - | 28 mA | 850 µA | 3V ~ 40V, ±1.5V ~ 20V | ISL28218 | Board(s) |
|

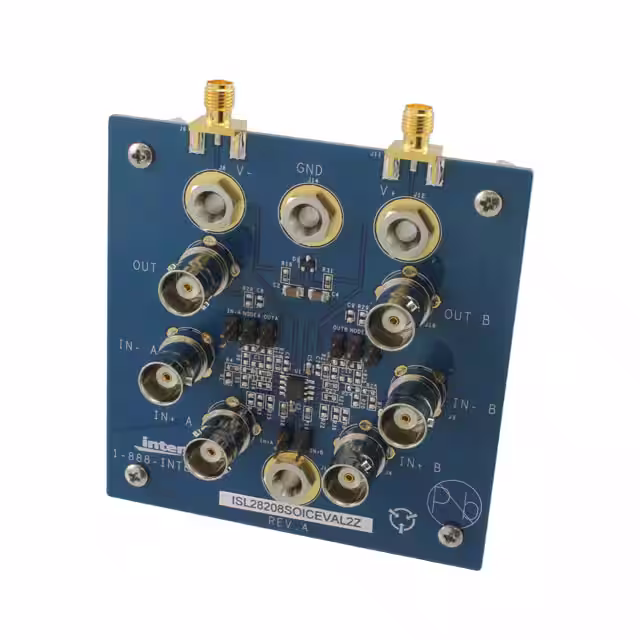

ISL28208SOICEVAL2ZEVALUATION BOARD FOR ISL28208 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Rail-to-Rail | 0.45V/µs | - | 30 mA | 185 µA | 9V ~ 40V, ±4.5V ~ 20V | ISL28208 | Board(s) |
|

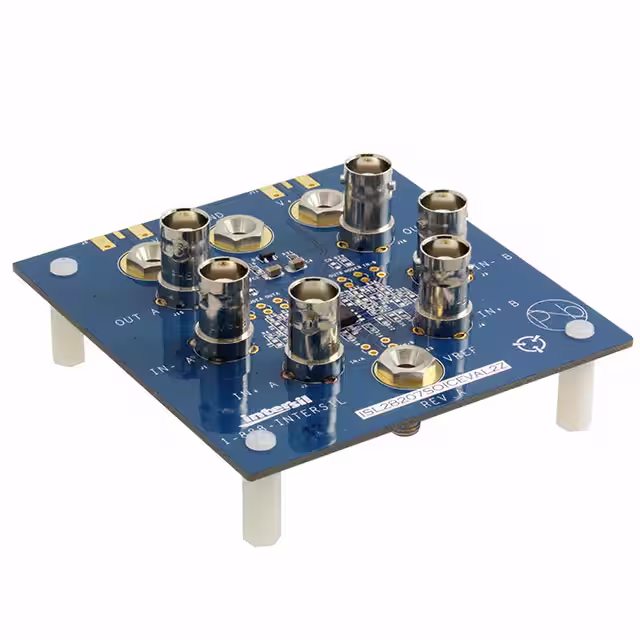

ISL28207SOICEVAL2ZEVAL BOARD FOR ISL28207 8SOIC |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | Single-Ended | 0.32V/µs | - | 40 mA | 210 µA | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28207 | Board(s) |
|
LMP8640HV-TEVAL/NOPBEVAL BOARD FOR LMP8640 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 1.8V/µs | - | - | 130 µA | 2.7V ~ 12V | LMP8640HV-T | Board(s) |
|
LMP8640HV-HEVAL/NOPBEVAL BOARD FOR LMP8640 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 1.8V/µs | - | - | 130 µA | 2.7V ~ 12V | LMP8640HV-H | Board(s) |
|
DC987B-GLTC6401-20 3GHZ FULLY DIFFERENTI |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | - | 4500V/µs | 1.3 GHz | 10 mA | 50 mA | 2.85V ~ 3.5V | LTC6401-20 | Board(s) |
|
DC987B-HEVAL BOARD FOR LTC6401-26 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | - | 3300V/µs | 1.6 GHz | 10 mA | 45 mA | 2.85V ~ 3.5V | LTC6401-26 | Board(s) |
|

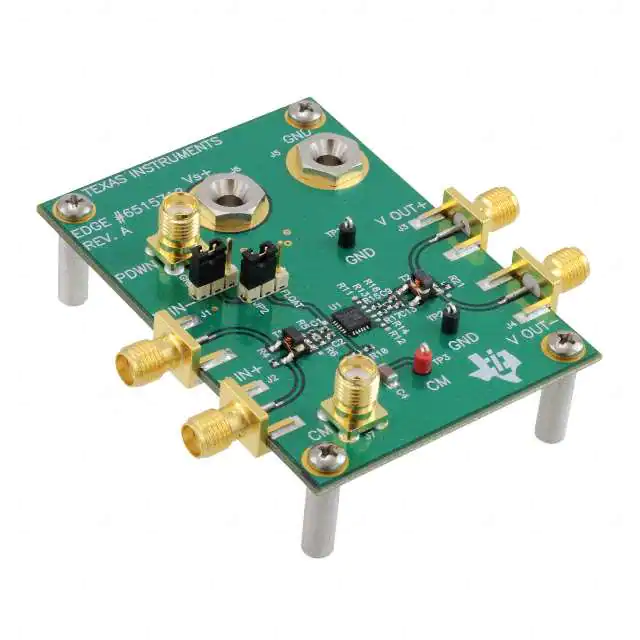

THS770012EVMEVAL MODULE FOR THS770012 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | 3400V/µs | 900 MHz | 80 mA | 100 mA | 4.75V ~ 5.25V | THS770012 | Board(s) |
|
DC1418A-DEVAL BOARD FOR LT6604-15 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Differential | Differential | - | - | - | 28 mA | 3V ~ 11V, ±1.5V ~ 5.5V | LT6604-15 | Board(s) |
|
AD8209A-EVALZEVAL BOARD FOR AD8209A |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Difference | Single-Ended | 1V/µs | - | - | 1.6 mA | 4.5V ~ 5.5V | AD8209A | Board(s) |
|
SI8935ISO-KITEVAL BOARD FOR SI8935 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Single-Ended | - | - | - | 7 mA | 3V ~ 5.5V | Si8935 | Board(s) |
|
|
SI8937ISO-KITEVAL BOARD FOR SI8937 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Single-Ended | - | - | - | 7 mA | 3V ~ 5.5V | Si8937 | Board(s) |
|
DC1299A-AEVAL BOARD FOR LTC6420-20 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Differential, Rail-to-Rail | 4500V/µs | 1.8 GHz | 20 mA | 80 mA | 2.85V ~ 3.5V | LTC6420-20 | Board(s) |
|

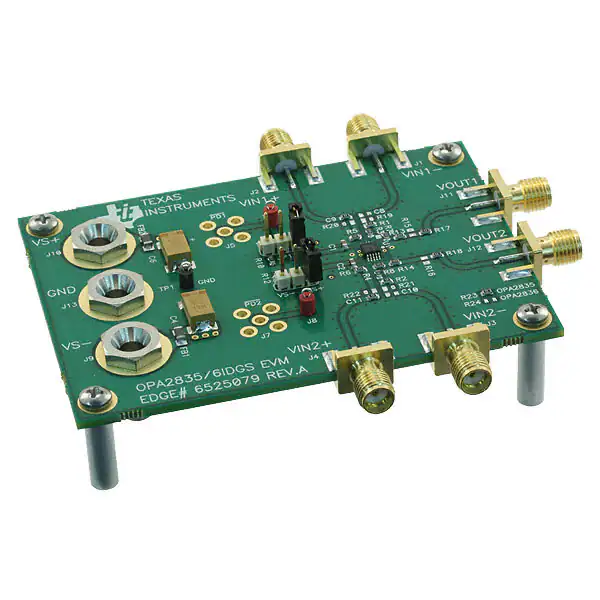

OPA2835IDGSEVMEVAL BOARD FOR OPA2835 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | Voltage Feedback | Single-Ended, Rail-to-Rail | 260V/µs | 56 MHz | 40 mA | 250 µA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | OPA2835 | Board(s) |
|

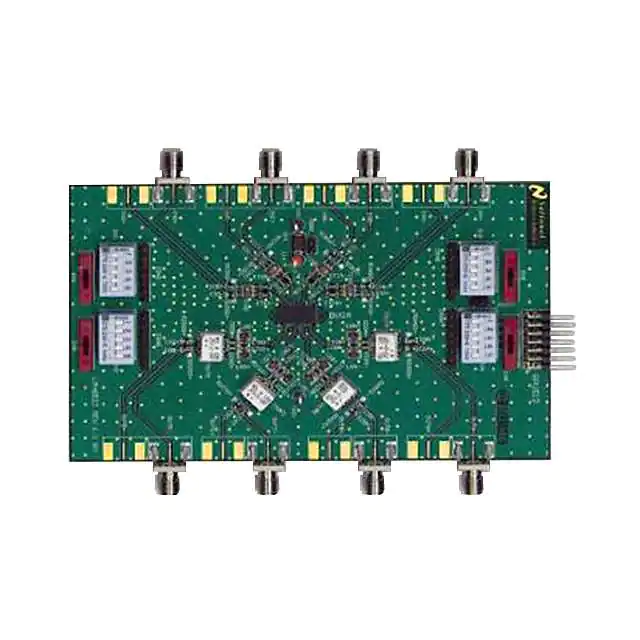

LMH6522EVAL/NOPBEVAL BOARD FOR LMH6522 |
1 |
|
Datasheet | - | Box | Active | 4 - Quad | Variable Gain | Differential | - | 1.4 GHz | - | 465 mA | 4.75V ~ 5.25V | LMH6522 | Board(s) |
|
ADA4950-1YCP-EBZBOARD EVAL FOR ADA4950-1YCP |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | - | - | - | - | - | - | 16-LFCSP Package | Unpopulated (Bare) Board(s) |
|
AD8410ARM-EVALZEVAL BOARD FOR AD8410A |
5 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 10V/µs | 2.2 MHz | - | 7.8 mA | 2.9V ~ 5.5V | AD8410A | Board(s) |
