Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1699A-ABOARD DEMO FOR LT6108-1 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | - | - | 2.7V ~ 60V | LT6108-1 | Board(s) |
|
DC1699A-BBOARD DEMO FOR LT6108-2 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | - | - | - | - | 2.7V ~ 60V | LT6108-2 | Board(s) |
|
DC2551A-CLT1997 L CONFIGURABLE PRECISION |
0 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 0.75V/µs | 650 kHz | 34 mA | 350 µA | 3V ~ 50V, ±1.5V ~ 25V | LT1997-1 | Board(s) |
|
THS4062EVMEVAL BOARD FOR THS4062 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Voltage Feedback | Single-Ended | 400V/µs | 180 MHz | 115 mA | 7.8 mA | 9V ~ 33V, ±4.5V ~ 16.5V | THS4062 | Board(s) |
|
THS3061EVMEVAL BOARD FOR THS3061 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Single-Ended | 7000V/µs | 300 MHz | 145 mA | 8.3 mA | 10V ~ 30V, ±5V ~ 15V | THS3061 | Board(s) |
|
EVAL-LTC6226S8EVAL BOARD FOR LTC6226 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 180V/µs | 330 MHz | 64 mA | 5.5 mA | 2.8V ~ 11.75V, ±1.4V ~ 5.875V | LTC6226 | Board(s) |
|
INA2191EVMEVAL BOARD FOR INA2191 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | Current Sense | Single-Ended | 0.3V/µs | 45 kHz | 48 µA | 96 µA | 1.7V ~ 5.5V | INA2191 | Board(s) |
|
SI8931ISO-KITEVAL BOARD FOR SI8931 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Differential | - | 600 kHz | - | 4.7 mA | 3V ~ 5.5V | Si8931 | Board(s) |
|
|
SI8921ISO-KITEVAL BOARD FOR SI8921 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Differential | - | 600 kHz | - | 4.6 mA | 3V ~ 5.5V | Si8921 | Board(s) |
|
|
SI8932ISO-KITEVAL BOARD FOR SI8932 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Isolation | Single-Ended | - | 600 kHz | - | 4.7 mA | 3V ~ 5.5V | Si8932 | Board(s) |
|
DC592ALT1636CDD - OVER-THE-TOP, MICROP |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Rail-to-Rail | 0.075V/µs | - | 30 mA | 50 µA | 2.7V ~ 44V, ±1.35V ~ 22V | LT1636CDD | Board(s) |
|

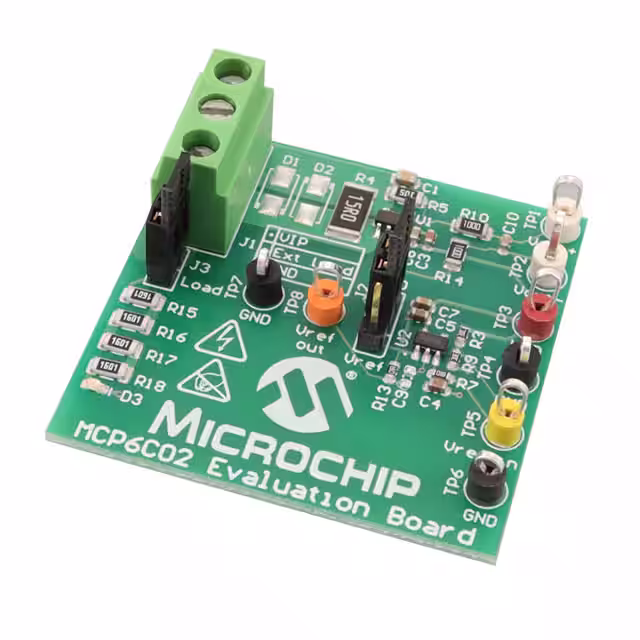

ADM01104MCP6C02 EVALUATION BOARD |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | - | 500 kHz | - | 490 µA | 2V ~ 5.5V | MCP6C02 | Board(s) |
|
ALM2403Q1EVMEVAL BOARD FOR ALM2403-Q1 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | 50V/µs | - | 500 mA | 3.6 mA | 5V ~ 24V | ALM2403-Q1 | Board(s) |
|

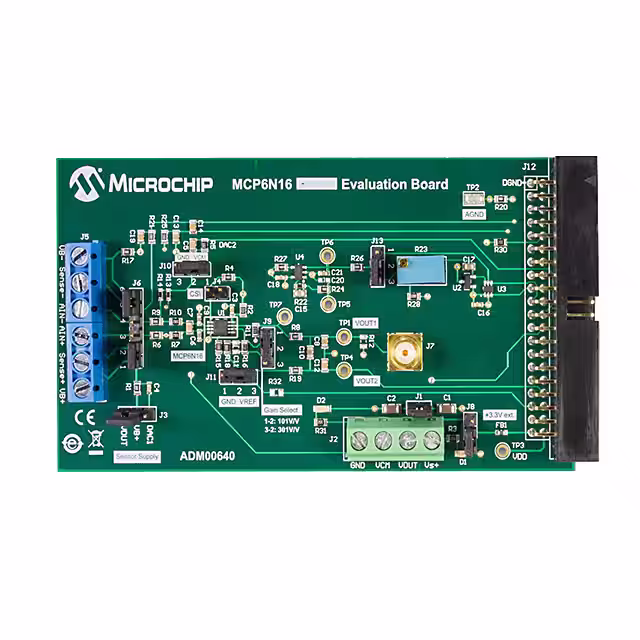

ADM00640EVALUATION BOARD MCP6N16 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Instrumentation | Single-Ended, Rail-to-Rail | - | - | 10 mA | 1.1 mA | 1.8V ~ 5.5V | MCP6N16 | Board(s) |
|
DC861A-BLTC6912-2 DUAL DIGITALLY CONTROL |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Programmable Gain | Rail-to-Rail | 26V/µs | - | 35 mA | 2.25 mA | 2.7V ~ 10.5V, ±2.7V ~ 5.25V | LTC6912-2 | Board(s) |
|
DC1418A-BEVAL BOARD FOR LT6604-5 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Differential | Differential | - | - | - | 28 mA | 3V ~ 11V, ±1.5V ~ 5.5V | LT6604-5 | Board(s) |
|
VCA2611EVMEVAL BOARD FOR VCA2611 |
1 |
|
- |
- | Box | Active | 2 - Dual | Variable Gain | Differential | 300V/µs | 40 MHz | 40 mA | - | 4.75V ~ 5.25V | VCA2611 | Board(s) |
|
THS4531ADGKEVMEVAL BOARD FOR THS4531A |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 390V/µs | 36 MHz | 25 mA | 250 µA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | THS4531A | Board(s) |
|
OPA838DBVEVMEVAL BOARD FOR OPA838 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended, Rail-to-Rail | 350V/µs | 90 MHz | 40 mA | 960 µA | 2.7V ~ 5.4V, ±1.35V ~ 2.7V | OPA838 | Board(s) |
|
|
BUF634ADRBEVMEVAL BOARD FOR BUF634A |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Buffer | Single-Ended | 3750V/µs | 210 MHz | 250 mA | 17 mA | 4.5V ~ 36V, ±2.25V ~ 18V | BUF634A | Board(s) |
