Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-ADA4099-2EBZEVAL BOARD FOR ADA4099-2 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 5.5V/µs | - | 50 mA | 1.75 mA | 3.15V ~ 50V, ±1.575V ~ 25V | ADA4099-2 | Board(s) |
|
EVAL-ADA4098-2EBZEVAL BOARD FOR ADA4098-2 |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | Single-Ended, Rail-to-Rail | 0.85V/µs | - | 50 mA | 195 µA | 3V ~ 50V, ±1.5V ~ 25V | ADA4098-2 | Board(s) |
|

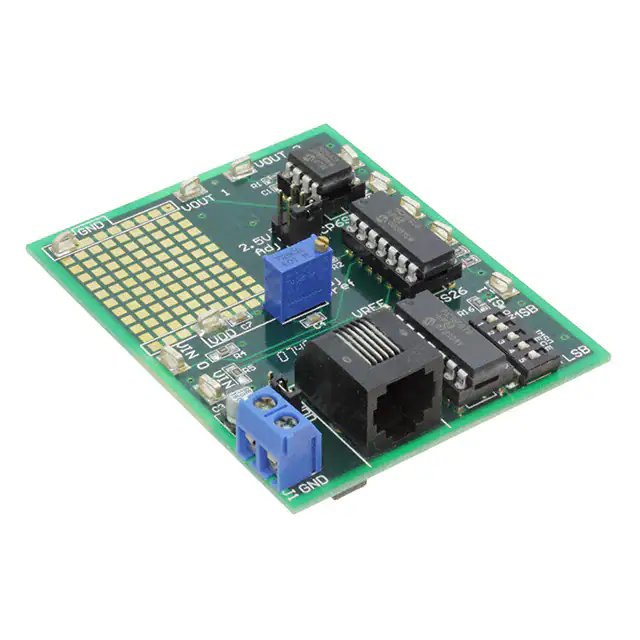

MCP6S2XEVBOARD EVALUATION FOR MCP6S2X |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single, 6 - Hex | Programmable Gain | Single-Ended, Rail-to-Rail | 22V/µs | 12 MHz | 30 mA | 1 mA | 2.5V ~ 5.5V | MCP6S21, MCP6S26 | Board(s) |
|

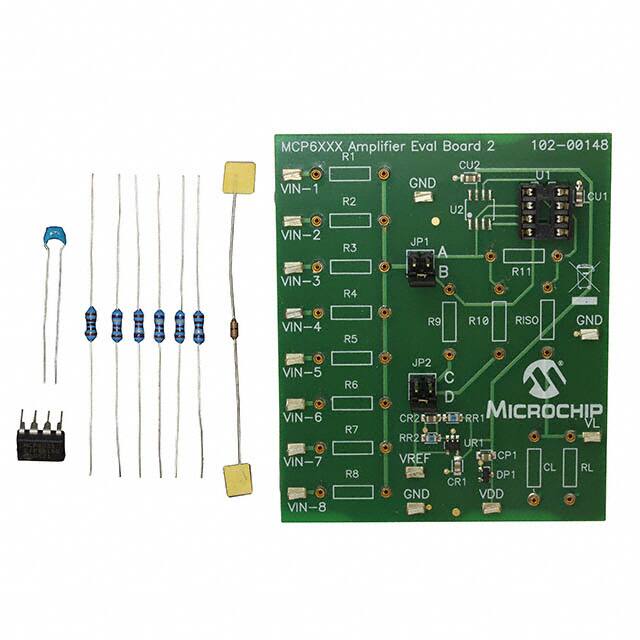

MCP6XXXEV-AMP2BOARD AMPLIFIER EVAL 2 MCP6XXX |
1 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | - | - | - | - | - | - | 8-DIP Package | Partially Populated Board(s) |
|
ISL28005FH-20EVAL1ZEVAL BOARD FOR ISL28005 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 0.67V/µs | - | - | 50 µA | - | ISL28005 | Board(s) |
|
ISL28006FH-20EVAL1ZEVAL BOARD FOR ISL28006 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 0.67V/µs | - | - | 50 µA | - | ISL28006 | Board(s) |
|
ISL28006FH-50EVAL1ZEVAL BOARD FOR ISL28006 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 0.67V/µs | - | - | 50 µA | - | ISL28006 | Board(s) |
|
ISL28006FH-100EVAL1ZEVAL BOARD FOR ISL28006 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | - | 0.76V/µs | - | - | 50 µA | - | ISL28006 | Board(s) |
|
ADM00961EVAL BOARD FOR HV264 |
0 |
|
Datasheet | - | Box | Active | 4 - Quad | General Purpose | Single-Ended | 9V/µs | 25 kHz | 3 mA | 5 mA | 4.5V ~ 5.5V, 50V ~ 200V | HV264 | Board(s) |
|
THS4021EVMEVAL BOARD FOR THS4021 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 470V/µs | 350 MHz | 100 mA | 7.8 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4021 | Board(s) |
|
THS4032EVMEVAL BOARD FOR THS4032 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Voltage Feedback | Single-Ended | 100V/µs | 100 MHz | 100 mA | 15.6 mA | 9V ~ 32V, ±4.5V ~ 16V | THS4032 | Board(s) |
|
THS4130EVMEVAL BOARD FOR THS4130 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 67V/µs | 170 MHz | 85 mA | 13 mA | 4V ~ 33V, ±2V ~ 16.5V | THS4130 | Board(s) |
|
THS4503EVMEVAL BOARD FOR THS4503 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 2800V/µs | 370 MHz | 120 mA | 23 mA | 4.5V ~ 15V, ±2.25V ~ 7.5V | THS4503 | Board(s) |
|
THS4501EVMEVAL BOARD FOR THS4501 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 2800V/µs | 370 MHz | 120 mA | 23 mA | 4.5V ~ 15V, ±2.25V ~ 7.5V | THS4501 | Board(s) |
|
THS4271EVMEVAL BOARD FOR THS4271 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 1000V/µs | 1.4 GHz | 160 mA | 22 mA | 5V ~ 15V, ±2.5V ~ 7.5V | THS4271 | Board(s) |
|
THS4271EVM-UGEVAL BOARD FOR THS4271 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Voltage Feedback | Single-Ended | 1000V/µs | 1.4 GHz | 160 mA | 22 mA | 5V ~ 15V, ±2.5V ~ 7.5V | THS4271 | Board(s) |
|
THS4302EVMEVAL BOARD FOR THS4302 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | 5500V/µs | 2.4 GHz | 180 mA | 37 mA | 3V ~ 5V, ±1.5V ~ 2.5V | THS4302 | Board(s) |
|
THS7530EVMEVAL BOARD FOR THS7530 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Variable Gain | Differential | 1250V/µs | 300 MHz | 37 mA | 40 mA | 4.5V ~ 5.5V | THS7530 | Board(s) |
|
THS3111EVMEVAL BOARD FOR THS3111 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Single-Ended | 1300V/µs | 100 MHz | 260 mA | 4.8 mA | 10V ~ 30V, ±5V ~ 15V | THS3111 | Board(s) |
|
THS3121EVMEVAL BOARD FOR THS3121 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Single-Ended | 1700V/µs | 130 MHz | 490 mA | 7 mA | 10V ~ 30V, ±5V ~ 15V | THS3121 | Board(s) |
