Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL-ADA4870EBZEVAL BOARD FOR ADA4870 |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Current Feedback | Single-Ended | 2500V/µs | 70 MHz | 1 A | 32.5 mA | 10V ~ 40V | ADA4870 | Board(s) |
|
OPAMPEVM-SOICUNIV EVAL MOD FOR SOP PKG |
20 |
|
Datasheet | - | Bulk | Active | 1 - Single, 2 - Dual, 4 - Quad | General Purpose | - | - | - | - | - | - | 8-SOIC, 14-SOIC, 16-SOIC-N Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SO-1BBOARD DEMO FOR SNGL 8SOIC OPAMPS |
7 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
INA180-181EVMEVAL BOARD FOR INA180 INA181 |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2V/µs | 350 kHz | - | 260 µA | 2.7V ~ 5.5V | INA180, INA181 | Board(s) |
|
INA186EVMEVAL BOARD FOR INA186 |
5 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended, Rail-to-Rail | 0.3V/µs | 45 kHz | - | 48 µA | 1.7V ~ 5.5V | INA186 | Board(s) |
|
INA381EVMEVAL BOARD FOR INA381 |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2V/µs | 350 kHz | - | 250 µA | 2.7V ~ 5.5V | INA381 | Board(s) |
|
THS4551DGKEVMEVAL BOARD FOR THS4551 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential, Rail-to-Rail | 220V/µs | 150 MHz | 80 mA | 1.35 mA | 2.7V ~ 5.4V, ±1.35V ~ 2.7V | THS4551 | Board(s) |
|
OPA857EVM-978EVAL BOARD FOR OPA857 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Transimpedance | Single-Ended | 215V/µs | 125 MHz | 50 mA | 23.4 mA | 2.7V ~ 3.6V | OPA857 | Board(s) |
|
OPAMPEVM-PDIPUNIV EVAL MOD FOR DIP PKG |
19 |
|
Datasheet | - | Bulk | Active | 1 - Single, 2 - Dual, 4 - Quad | General Purpose | - | - | - | - | - | - | 8-DIP, 14-DIP, 16-DIP Package | Unpopulated (Bare) Board(s) |
|
DEM-VCA-SO-1BDEM-VCA-SO-1B |
18 |
|
Datasheet | - | Box | Active | 1 - Single | Variable Gain | - | - | - | - | - | - | 14-SOIC Package | Unpopulated (Bare) Board(s) |
|

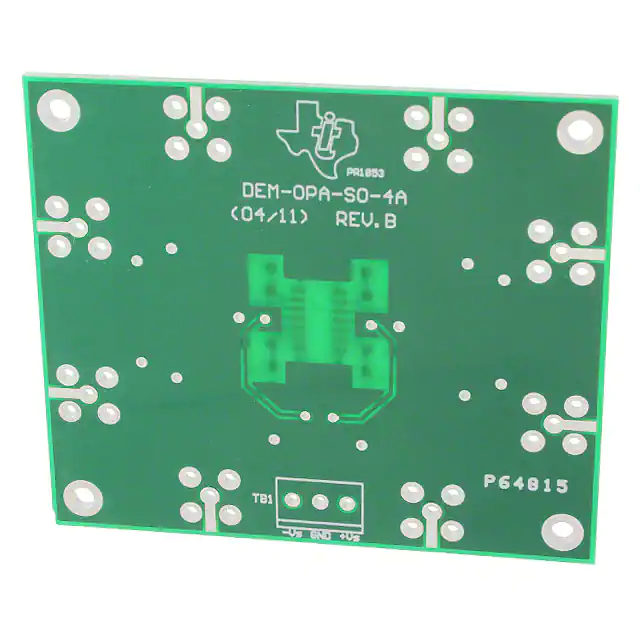

DEM-OPA-SO-4ADEM-OPA-SO-4A |
14 |
|
Datasheet | - | Box | Active | 4 - Quad | General Purpose | Single-Ended | - | - | - | - | - | 14-SOIC Package | Unpopulated (Bare) Board(s) |
|
DEM-BUF-SO-1ADEM-BUF-SO-1A |
10 |
|
Datasheet | - | Box | Active | 1 - Single | Buffer | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

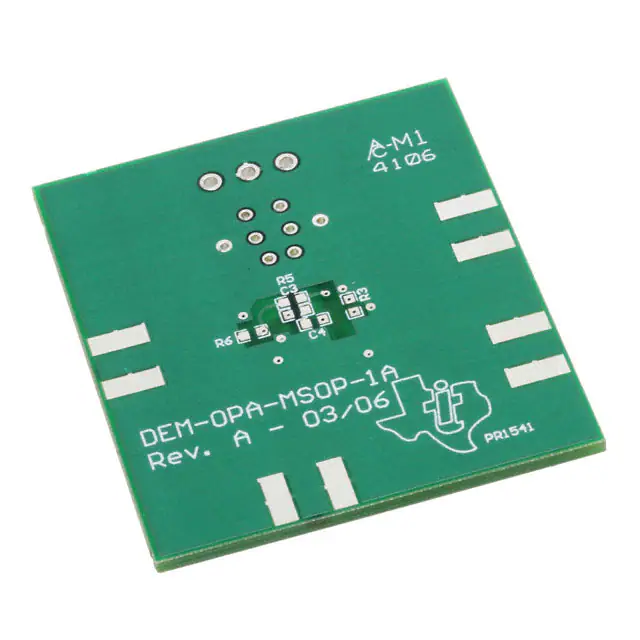

DEM-OPA-MSOP-1ADEM-OPA-MSOP-1A |
10 |
|
Datasheet | - | Box | Active | 1 - Single | General Purpose | - | - | - | - | - | - | 10-MSOP Package | Unpopulated (Bare) Board(s) |
|

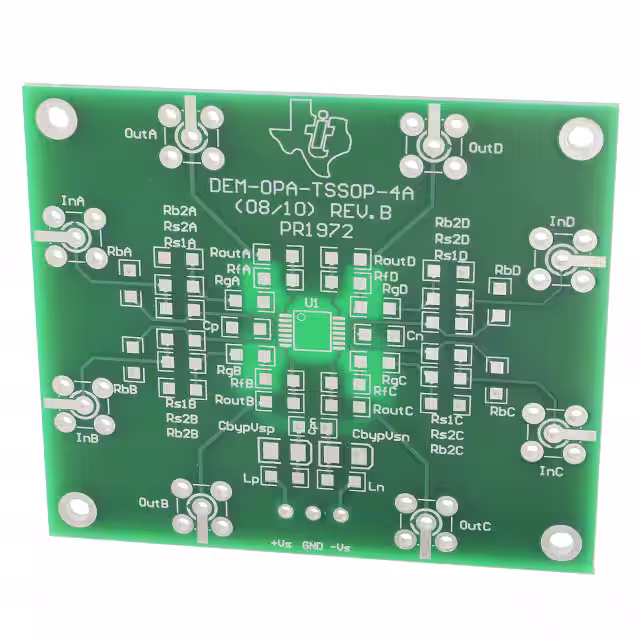

DEM-OPA-TSSOP-4ADEM-OPA-TSSOP-4A |
8 |
|
Datasheet | - | Box | Active | 4 - Quad | General Purpose | Single-Ended | - | - | - | - | - | 14-TSSOP Package | Unpopulated (Bare) Board(s) |
|

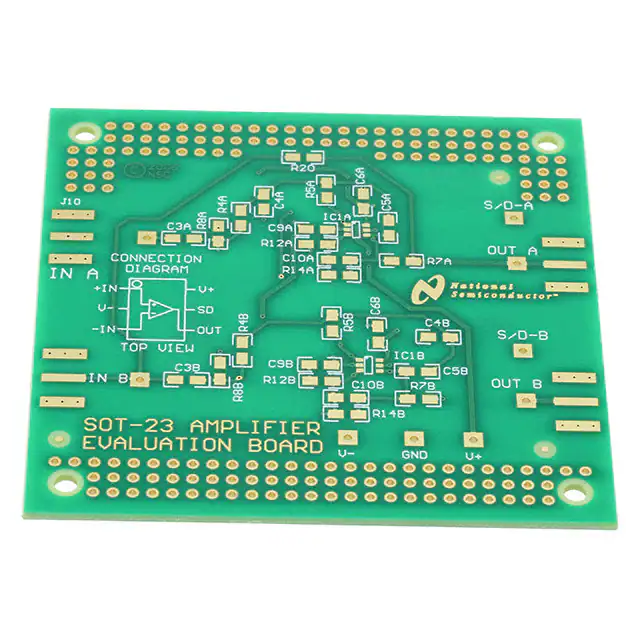

551012875-001/NOPBBOARD EVALUATION OP AMPS SOT-23 |
8 |
|
Datasheet | WEBENCH® Buildit Board | Box | Active | 1 - Single | General Purpose | - | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|

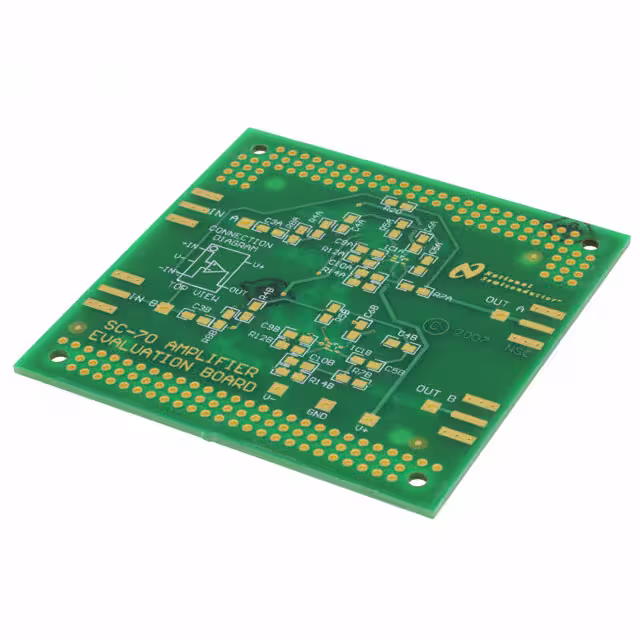

551012922-001/NOPBBOARD EVAL UNIV FOR SC-70 AMP |
8 |
|
Datasheet | WEBENCH® Buildit Board | Box | Active | 1 - Single | General Purpose | - | - | - | - | - | - | SC-70-5, SC-70-6 Package | Unpopulated (Bare) Board(s) |
|

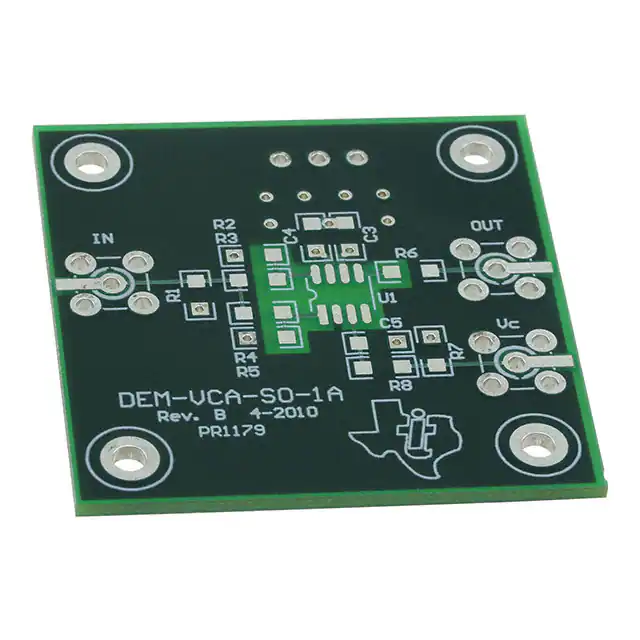

DEM-VCA-SO-1ABOARD DEMO FOR 8SOIC VCA'S |
4 |
|
Datasheet | - | Bulk | Active | 1 - Single | Variable Gain | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

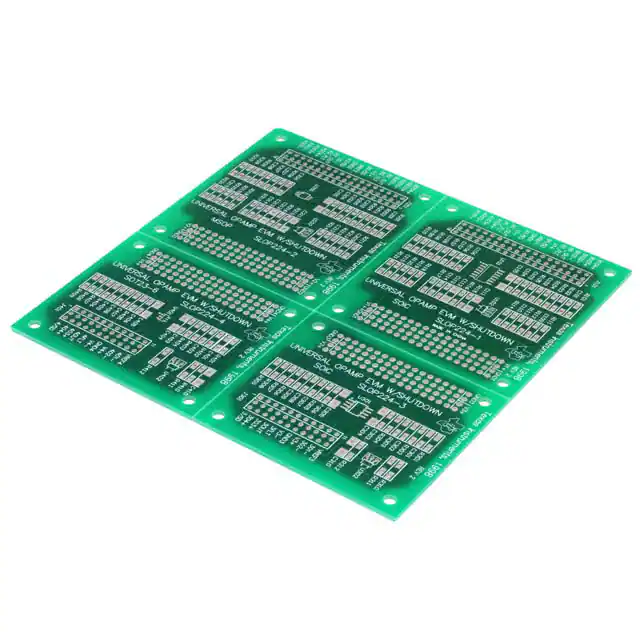

OPAMPEVM-SOT23SHDNUNIV EVAL MOD FOR SOT23 PKG |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single, 2 - Dual | General Purpose | - | - | - | - | - | - | 8-SOIC, 10-MSOP, 14-SOIC, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SOT-1BBOARD DEMO FOR SNGL SOT23 OPAMPS |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SO-2BBOARD DEMO FOR 8SOIC DUAL OPAMPS |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
