Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-AETKT3V1EVAL BOARD TSC200 TSC201 TSC202 |
20 |
|
- |
- | Bulk | Active | 1 - Single | Current Sense | Single-Ended, Rail-to-Rail | 7V/µs | - | - | 840 µA | 2.7V ~ 18V | TSC200, TSC201, TSC202 | Board(s) |
|
|
INA296BEVMEVAL BOARD FOR INA296B |
25 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | - | 8V/µs | 1.1 MHz | - | 2.5 mA | 2.7V ~ 20V | INA296B | Board(s) |
|
|
INA254EVMEVAL BOARD FOR INA254 |
13 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | Single-Ended | 2.4V/µs | 350 kHz | - | 1.8 mA | 2.7V ~ 5.5V | INA254 | Board(s) |
|
|
INA190EPEVMEVAL BOARD FOR INA190-EP |
9 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 0.3V/µs | 45 kHz | - | 48 µA | 1.7V ~ 5.5V | INA190-EP | Board(s) |
|
|
PGA849EVMEVAL BOARD FOR PGA849 |
8 |
|
Datasheet | - | Box | Active | 1 - Single | Programmable Gain | Single-Ended | 35V/µs | 10 MHz | 60 mA | 4.2 mA | 8V ~ 36V, ±4V ~ 18V | PGA849 | Board(s) |
|
LME49720NABDEVAL BOARD FOR LME49720 |
3 |
|
Datasheet | - | Box | Active | 2 - Dual | Audio | Single-Ended | 20V/µs | - | 26 mA | 10 mA | ±2.5V ~ 17V | LME49720 | Board(s) |
|
|
INA241BEVMEVAL BOARD FOR INA241B |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Current Sense | - | 8V/µs | 1.1 MHz | - | 2.5 mA | 2.7V ~ 20V | INA241B | Board(s) |
|
DC954A-BLT6402-12 300MHZ DIFF IN/OUT ADC |
0 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Differential | Differential | 400V/µs | - | - | - | 4V ~ 5.5V, ±2V ~ 2.5V | LT6402-12 | Board(s) |
|
DC593ALT1637CDD - OVER-THE-TOP, MICROP |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | General Purpose | Rail-to-Rail | 0.4V/µs | - | 31.7 mA | 230 µA | 2.7V ~ 44V, ±1.35V ~ 22V | LT1637CDD | Board(s) |
|
ISL28227SOICEVAL2ZEVAL BOARD FOR ISL28227 SOIC |
4 |
|
Datasheet | - | Box | Active | 2 - Dual | General Purpose | - | 3.6V/µs | - | - | 2.2 mA | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28227 | Board(s) |
|
|
INA310BEVMEVAL BOARD FOR INA310B |
5 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Sense | Single-Ended | 2.5V/µs | 1.3 MHz | - | 1.6 mA | 2.7V ~ 20V | INA310B | Board(s) |
|
DC987B-ALTC6400-8 3GHZ FULLY DIFFERENTIA |
3 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | - | 3810V/µs | 2.2 GHz | 20 mA | 85 mA | 2.85V ~ 3.5V | LTC6400-8 | Board(s) |
|
ISL28433TSSOPEVAL1ZEVAL BOARD FOR ISL28433 14TSSOP |
4 |
|
Datasheet | - | Box | Active | 4 - Quad | Chopper (Zero-Drift) | Rail-to-Rail | 0.2V/µs | - | 19 mA | 18 µA | 1.65V ~ 5.5V, ±0.825V ~ 2.75V | ISL28433 | Board(s) |
|

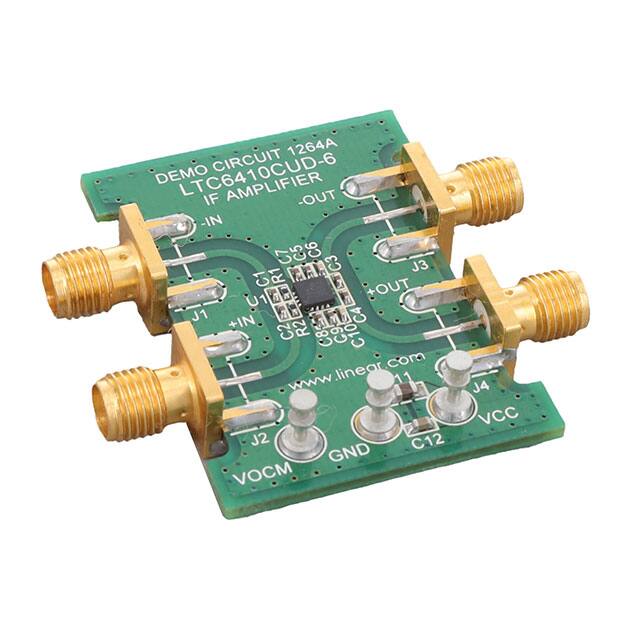

DC1264AEVAL BOARD FOR LTC6410-6 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 1500V/µs | 1.4 GHz | 42 mA | 125 mA | 2.8V ~ 5.5V, ±1.4V ~ 2.75V | LTC6410-6 | Board(s) |
|

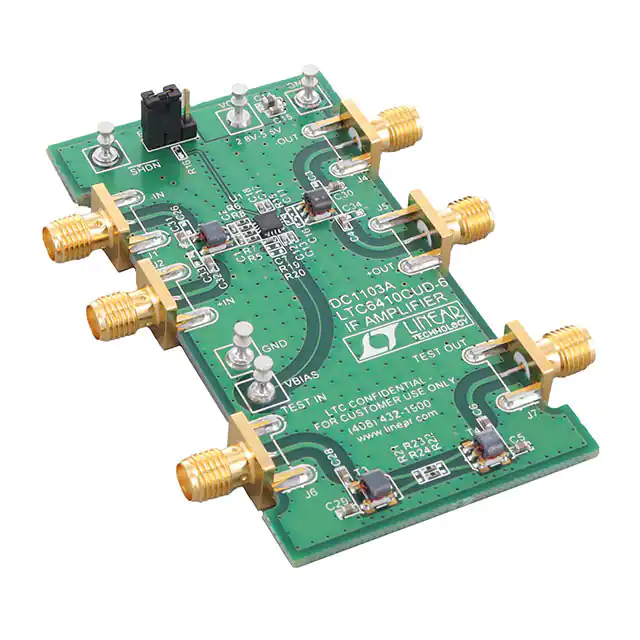

DC1103AEVAL BOARD FOR LTC6410-6 |
0 |
|
Datasheet | - | Bulk | Active | 1 - Single | Differential | Differential | 1500V/µs | 1.4 GHz | 42 mA | 125 mA | 2.8V ~ 5.5V, ±1.4V ~ 2.75V | LTC6410-6 | Board(s) |
|
DC1639AEVAL BOARD FOR LTC6360 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Buffer | Single-Ended | 135V/µs | 250 MHz | 45 mA | 13.6 mA | 4.75V ~ 5.25V | LTC6360 | Board(s) |
|
|
LMH6518EVMEVAL BOARD FOR LMH6518 |
3 |
|
- |
- | Box | Active | 1 - Single | Variable Gain | Differential | - | 900 MHz | - | 210 mA | 4.75V ~ 5.25V | LMH6518 | Board(s) |
|
|
THS6232RHFEVMEVAL BOARD FOR THS6232 |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Single-Ended | 1200V/µs | 60 MHz | 680 mA | 26 mA | 7V ~ 40V, ±35V ~ 20V | THS6232 | Board(s) |
|
DC1774A-BBOARD EVAL LTC6430 400-1000MHZ |
2 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | - | 2 GHz | 105 mA | 160 mA | 4.75V ~ 5.25V | LTC6430-15 | Board(s) |
|
|

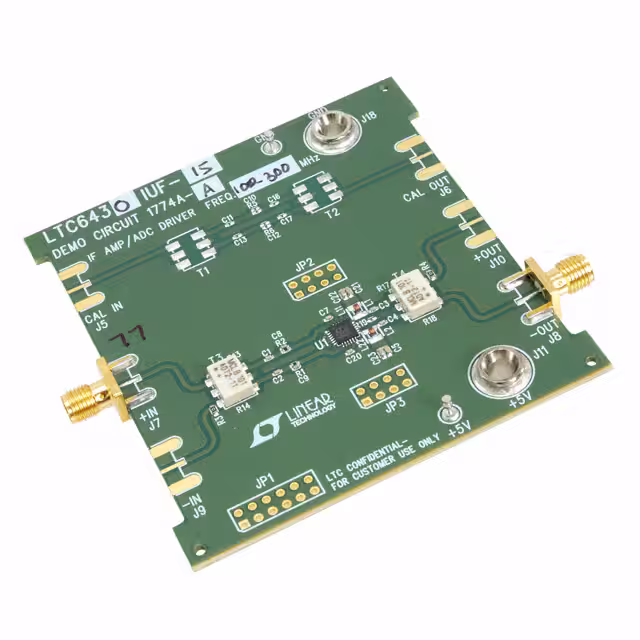

DC1774A-ABOARD EVAL LTC6430 100-400MHZ |
1 |
|
Datasheet | - | Box | Active | 1 - Single | Differential | Differential | - | 2 GHz | 105 mA | 160 mA | 4.75V ~ 5.25V | LTC6430-15 | Board(s) |
