Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD8277-EVALZEVAL BOARD FOR AD8277 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Difference | Single-Ended, Rail-to-Rail | 1.1V/µs | 550 kHz | 15 mA | 200 µA | 2V ~ 36V, ±2V ~ 18V | AD8277 | Board(s) |
|
LMH6515EVAL/NOPBEVAL BOARD FOR LMH6515 |
3 |
|
Datasheet | - | Box | Active | 1 - Single | Variable Gain | Differential | - | 600 MHz | - | 107 mA | 4V ~ 5.25V | LMH6515 | Board(s) |
|

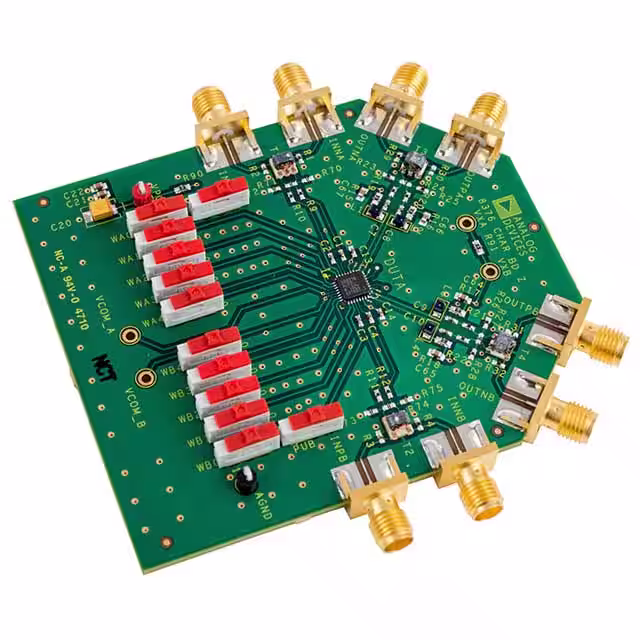

AD8376-EVALZEVAL BOARD FOR AD8376 |
1 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Variable Gain | Differential | 5000V/µs | 700 MHz | - | 250 mA | 4.5V ~ 5.5V | AD8376 | Board(s) |
|
DC1600AEVAL BOARD FOR LTC6412 |
2 |
|
Datasheet | - | Bulk | Active | 1 - Single | Variable Gain | Differential | - | 800 MHz | - | 110 mA | 3V ~ 3.6V | LTC6412 | Board(s) |
|
DEM-OPA-SOT-2ABOARD DEMO SOT23-8 DUAL OPAMPS |
34 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | SOT-23-8 Package | Unpopulated (Bare) Board(s) |
|
LMV851EVAL/NOPBEVAL BOARD FOR LMV851 |
2 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended, Rail-to-Rail | 4.5V/µs | - | 65 mA | 430 µA | 2.7V ~ 5.5V, ±1.35V ~ 2.75V | LMV851 | Board(s) |
|
THS4281EVMEVAL BOARD FOR THS4281 |
3 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Voltage Feedback | Single-Ended, Rail-to-Rail | 35V/µs | 95 MHz | 60 mA | 800 µA | 2.7V ~ 16.5V, ±1.35V ~ 8.25V | THS4281 | Board(s) |
|
ISL28535EV2ZBOARD EVAL ISL28535EV2Z 14TSSOP |
3 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Programmable Gain | Single-Ended | 0.8V/µs | - | 45 mA | 2.9 mA | 2.5V ~ 5.5V, ±1.25V ~ 2.75V | ISL28535 | Board(s) |
|
ZXFV202N8EVEVAL BOARD FOR ZXFV202 |
6 |
|
Datasheet | - | Bulk | Active | 1 - Single | Video | Single-Ended | 600V/µs | 210 MHz | 40 mA | 7.5 mA | ±4.75V ~ 5.25V | ZXFV202 | Board(s) |
|
ZXFV201EVEVAL BOARD FOR ZXFV201 |
5 |
|
Datasheet | - | Bulk | Active | 4 - Quad | Video | Single-Ended | 600V/µs | 210 MHz | 40 mA | 7.5 mA | ±4.75V ~ 5.25V | ZXFV201 | Board(s) |
|

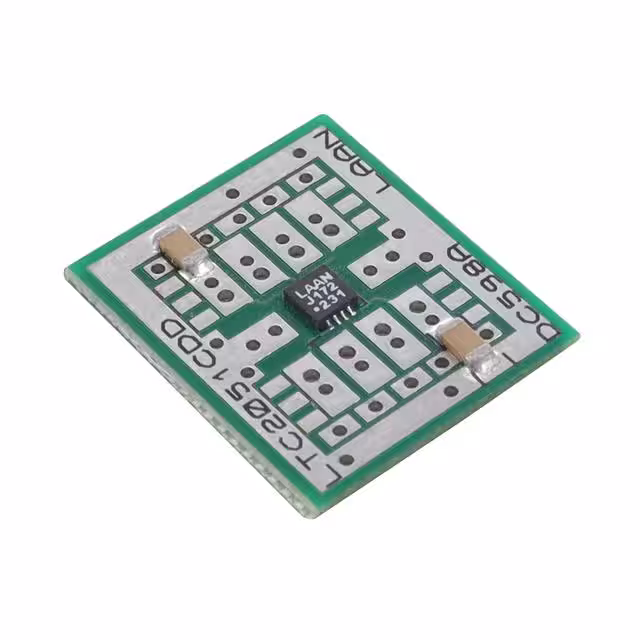

DC598ALTC2051CDD - PRECISION DUAL, ZER |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Zero-Drift | Rail-to-Rail | 2V/µs | - | 25 mA | 750 µA | 2.7V ~ 11V | LTC2051CDD | Board(s) |
|
LME49720MABDEVAL BOARD FOR LME49720 |
2 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | Audio | Single-Ended | 20V/µs | - | 26 mA | 10 mA | ±2.5V ~ 17V | LME49720 | Board(s) |
|

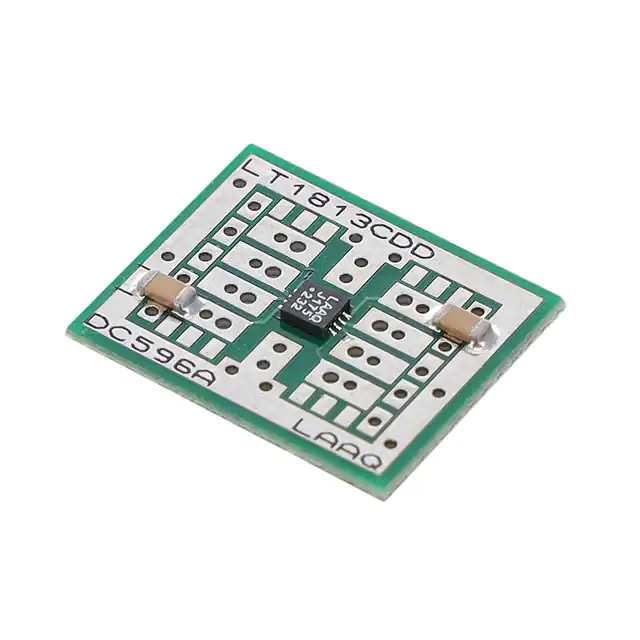

DC596ALT1813CDD - DUAL, LOW POWER, HIG |
3 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Voltage Feedback | - | 750V/µs | 200 MHz | 60 mA | 3 mA | 2.5V ~ 12.6V, ±1.25V ~ 6.3V | LT1813CDD | Board(s) |
|

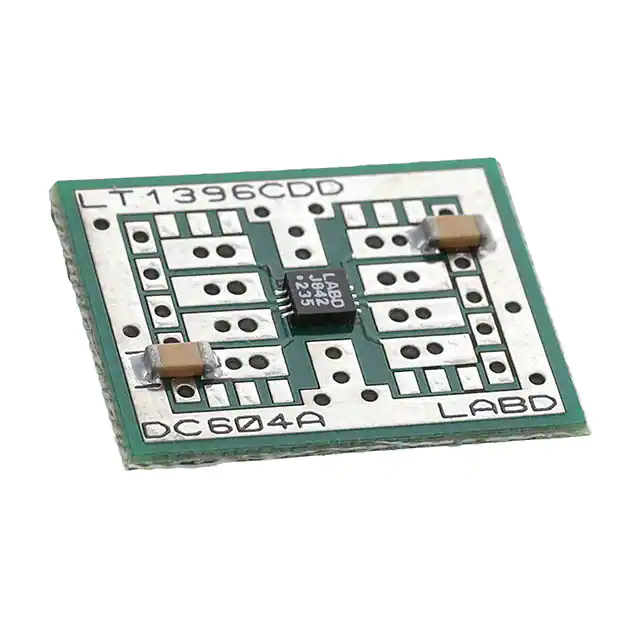

DC604ALT1396CDD - DUAL, 400MHZ, CURREN |
3 |
|
Datasheet | - | Bulk | Active | 2 - Dual | Current Feedback | - | 800V/µs | 400 MHz | 80 mA | 4.6 mA | 4V ~ 12V, ±2V ~ 6V | LT1396CDD | Board(s) |
|
ISL28217SOICEVAL2ZBOARD EVAL FOR ISL28217 |
2 |
|
Datasheet | - | Bulk | Active | 2 - Dual | General Purpose | - | 0.5V/µs | - | 43 mA | - | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28217 | Board(s) |
|
ISL28117SOICEVAL1ZEVAL BOARD FOR ISL28117 SOIC |
2 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | General Purpose | Single-Ended | 0.5V/µs | - | 43 mA | 440 µA | 4.5V ~ 40V, ±2.25V ~ 20V | ISL28117 | Board(s) |
|
LMP8603MAEVAL/NOPBEVAL BOARD FOR LMP8603 |
2 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Current Sense | Single-Ended | 0.83V/µs | - | 48 mA | 1.1 mA | 3V ~ 5.5V | LMP8603 | Board(s) |
|
VCA2614EVMEVAL BOARD FOR VCA2614 |
3 |
|
- |
- | Box | Active | 2 - Dual | Variable Gain | Differential | 300V/µs | 40 MHz | 40 mA | - | 4.75V ~ 5.25V | VCA2614 | Board(s) |
|
|
LMH6514SQEVAL/NOPBEVAL BOARD FOR LMH6514 |
2 |
|
Datasheet | - | Box | Obsolete | 1 - Single | Variable Gain | Differential | - | 600 MHz | - | 107 mA | 4V ~ 5.25V | LMH6514 | Board(s) |
|
LMH32401RGTEVMEVAL BOARD FOR LMH32401 |
0 |
|
Datasheet | - | Box | Active | 1 - Single | Transimpedance | Differential | 1100V/µs | 500 MHz | 26.6 mA | 29 mA | 3V ~ 3.45V | LMH32401 | Board(s) |
