Op Amp Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Channels per IC | Amplifier Type | Output Type | Slew Rate | -3db Bandwidth | Current - Output / Channel | Current - Supply (Main IC) | Voltage - Supply, Single/Dual (±) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

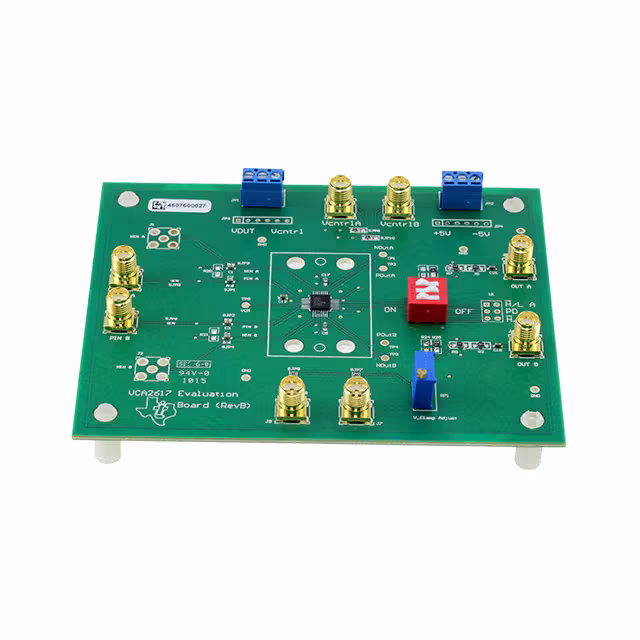

VCA2617EVMEVAL BOARD FOR VCA2617 |
1 |
|
Datasheet | - | Box | Active | 2 - Dual | Variable Gain | Differential | 100V/µs | 50 MHz | 60 mA | - | 4.75V ~ 5.25V | VCA2617 | Board(s) |
|
AMP-PDK-EVMAMP-PDK MAIN BOARD |
0 |
|
Datasheet | - | Box | Active | - | General Purpose | - | - | - | - | - | - | - | Partially Populated Board(s) - Main IC/Module/Part Not Included |
|

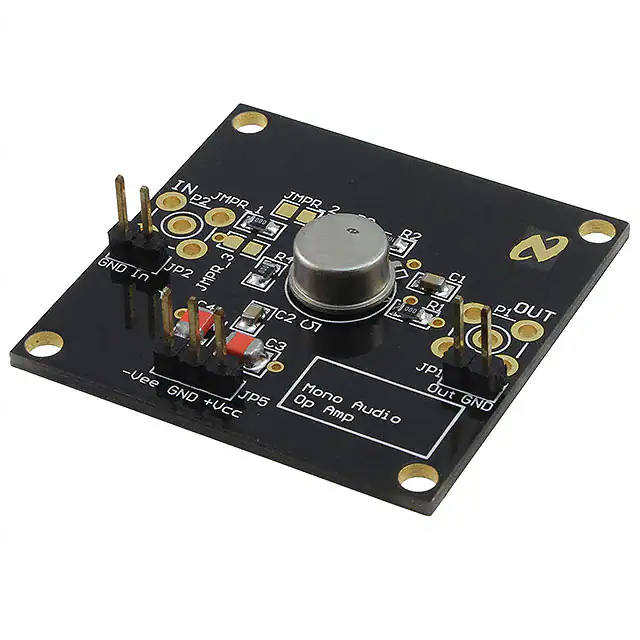

LME49710HABDEVAL BOARD FOR LME49710 |
1 |
|
- |
- | Box | Active | 1 - Single | Audio | Single-Ended | 20V/µs | - | 26 mA | 4.8 mA | ±2.5V ~ 17V | LME49710 | Board(s) |
|

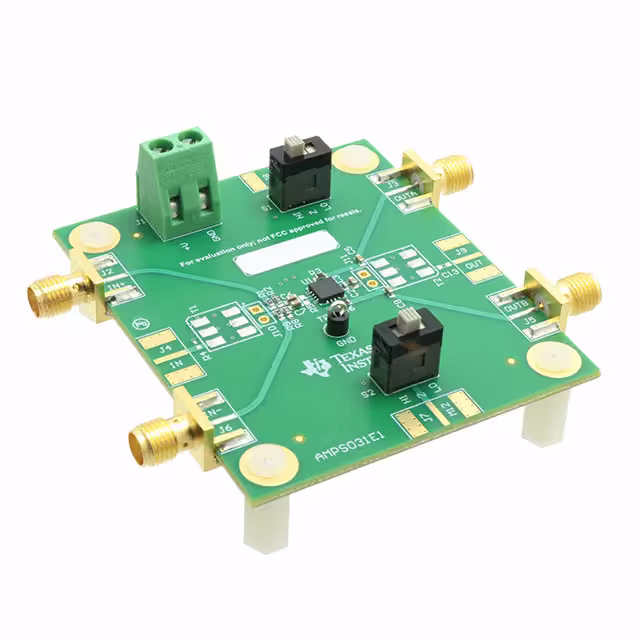

THS6301RSAEVMEVAL BOARD FOR THS6301 |
1 |
|
Datasheet | - | Bulk | Active | 1 - Single | Current Feedback | Differential | 10500V/µs | 670 MHz | 160 mA | 45.3 mA | 11.4V ~ 12.6V, ±5.7V ~ 6.3V | THS6301 | Board(s) |
|
|
CLC730245/NOPBEVALUATION BOARD FOR LMH6559MA |
0 |
|
Datasheet | - | - | Obsolete | - | - | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
CLC730036EVAL BOARD DUAL OPAMP 8-SOIC SMT |
0 |
|
Datasheet | - | - | Obsolete | - | - | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|
|
CLC730121/NOPBEVAL BOARD DUAL OPAMP 8-SOIC SMT |
0 |
|
Datasheet | - | - | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | 8-PSOP Package | Unpopulated (Bare) Board(s) |
|
|
CLC730227EVALUATION BOARD OPAMP |
0 |
|
Datasheet | - | - | Obsolete | - | - | - | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

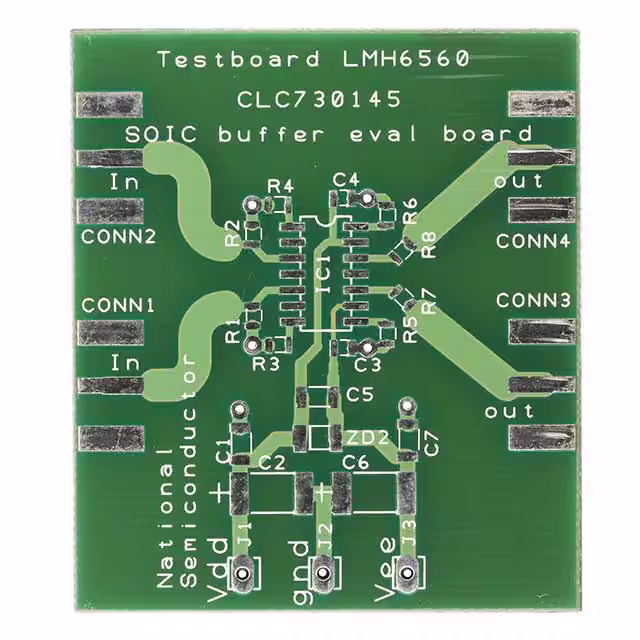

CLC730145/NOPBEVAL BOARD FOR THE LMH6560MA |
0 |
|
Datasheet | - | Bulk | Obsolete | 4 - Quad | Buffer | - | - | - | - | - | - | LMH6560 | Unpopulated (Bare) Board(s) |
|

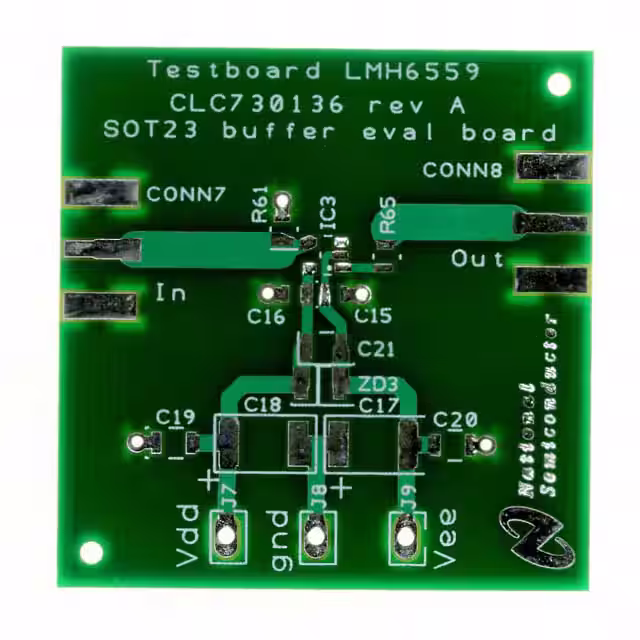

CLC730136/NOPBEVAL BOARD SNGL HI-SPEED BUFFER |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Buffer | - | - | - | - | - | - | SOT-23-5 Package | Unpopulated (Bare) Board(s) |
|

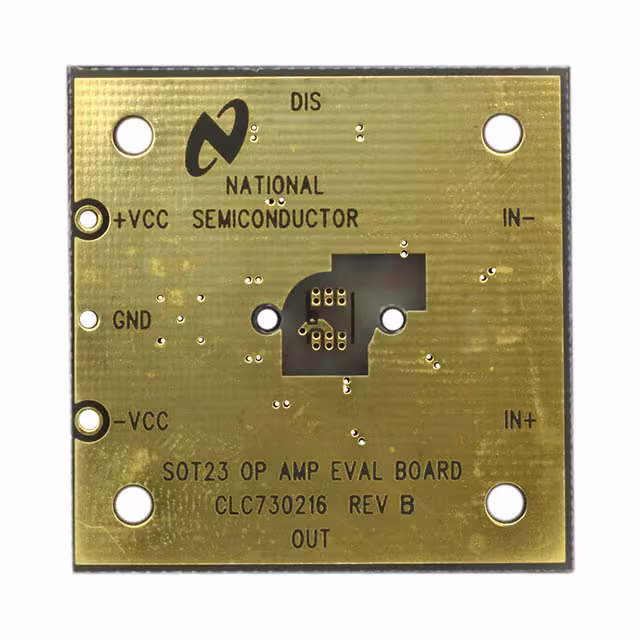

CLC730216/NOPBEVAL BOARD SNGL HI-SPEED OPAMP |
0 |
|
Datasheet | - | - | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
|
CLC730033EVAL BOARD AMP FOR 14-SOIC |
0 |
|
Datasheet | - | Bulk | Obsolete | 1 - Single | Variable Gain | - | - | - | - | - | - | LMH6502, LMH6503 | Unpopulated (Bare) Board(s) |
|
|
551012875-001BOARD EVALUATION OP AMPS SOT-23 |
0 |
|
Datasheet | WEBENCH® Buildit Board | Box | Obsolete | 1 - Single | General Purpose | - | - | - | - | - | - | SOT-23-5, SOT-23-6 Package | Unpopulated (Bare) Board(s) |
|
551012876-001/NOPBBOARD EVAL OPAMPS 8,10MSOP 8SOP |
0 |
|
Datasheet | WEBENCH® Buildit Board | Box | Obsolete | - | General Purpose | - | - | - | - | - | - | 8-MSOP, 8-SOP, 10-MSOP Package | Unpopulated (Bare) Board(s) |
|

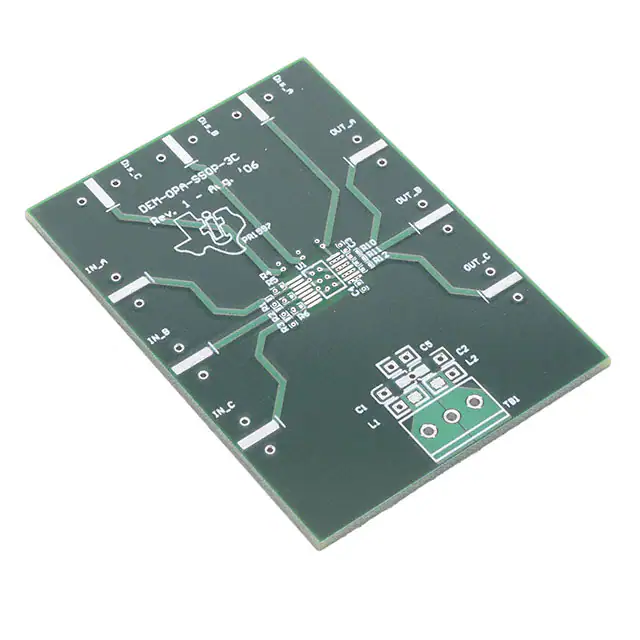

DEM-OPA-SSOP-3CEVALUATION TOOL FOR HS OPAMP |
16 |
|
Datasheet | - | Box | Obsolete | 3 - Triple | General Purpose | Single-Ended | - | - | - | - | - | 16-SSOP (16-QSOP) Package | Unpopulated (Bare) Board(s) |
|

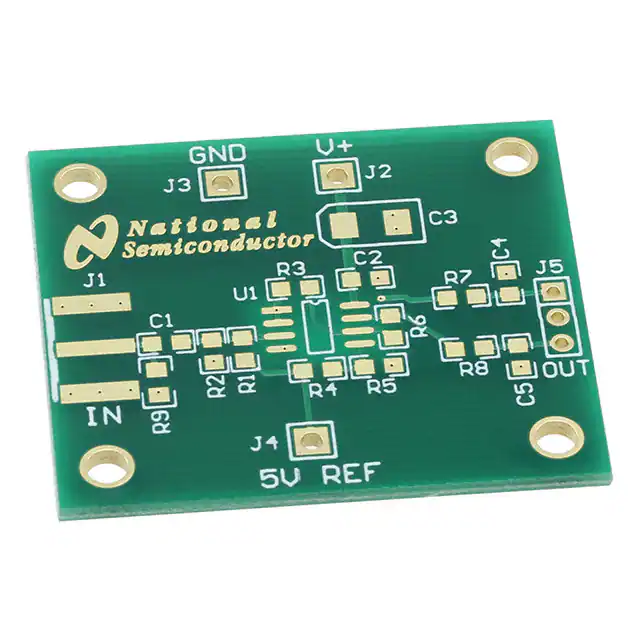

551600074-001/NOPBBOARD FOR SOIC LMH6612/19 |
4 |
|
Datasheet | WEBENCH® Buildit Board | Box | Obsolete | 2 - Dual | General Purpose | - | - | - | - | - | - | LMH6612, LMH6619 | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SO-1EUNPOPULATED DEMO BOARD |
3 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 14-SOIC Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SSOP-3BDEM-OPA-SSOP-3B |
1 |
|
Datasheet | - | Box | Obsolete | 3 - Triple | General Purpose | Single-Ended | - | - | - | - | - | 16-SSOP (16-QSOP) Package | Unpopulated (Bare) Board(s) |
|
DEM-OPA-SO-2CBOARD DEMO FOR 8SOIC DUAL OPAMPS |
0 |
|
Datasheet | - | Box | Obsolete | 2 - Dual | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
|

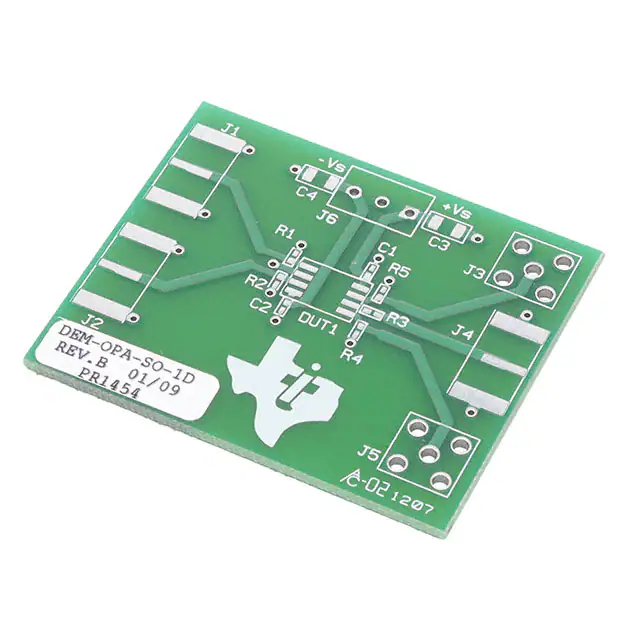

DEM-OPA-SO-1DUNPOPULATED DEMO BOARD |
0 |
|
Datasheet | - | Box | Obsolete | 1 - Single | General Purpose | Single-Ended | - | - | - | - | - | 8-SOIC Package | Unpopulated (Bare) Board(s) |
