Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL9021IRUKZ-TIC REG LINEAR 2.85V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUNZ-TIC REG LINEAR 3.3V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.25V @ 250mA | 250mA | 50 µA | - | 60dB ~ 50dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUPZ-TIC REG LINEAR 1.85V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.85V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRURZ-TIC REG LINEAR 2.6V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.6V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUSZ-TIC REG LINEAR 1.6V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.6V | - | - | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUTZ-TIC REG LINEAR 1.9V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.9V | - | 0.25V @ 250mA | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUWZ-TIC REG LINEAR 1.2V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
|
ISL9021IRUYZ-TIC REG LINEAR 0.9V 250MA 6UTDFN |
0 |
|
Datasheet | - | 6-UFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | - | 250mA | 50 µA | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Soft Start | -40°C ~ 85°C | - | - | Surface Mount | 6-UTDFN (1.6x1.6) |
|
ISL80102IR18ZIC REG LINEAR 1.8V 2A 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | - | 2A | 9 mA | 12 mA | 62dB ~ 55dB (120Hz ~ 1kHz) | Enable, Power Good, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL80103IR18ZIC REG LINEAR 1.8V 3A 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | - | 3A | 9 mA | 12 mA | 62dB ~ 55dB (120Hz ~ 1kHz) | Enable, Power Good, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
LP2951ACNIC REG LIN POS ADJ 100MA 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.235V (5V) | 29V | 0.6V @ 100mA | 100mA | 120 µA | 14 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
LT3083ET#TRPBFIC REG LINEAR POS ADJ 3A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 23V | 0V | 23V | 0.51V @ 3A | 3A | 50.5 µA | 1 mA | 85dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
NCP4586DSQ33T1GIC REG LINEAR 3.3V 150MA SC82AB |
0 |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.51V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SC-82AB |
|

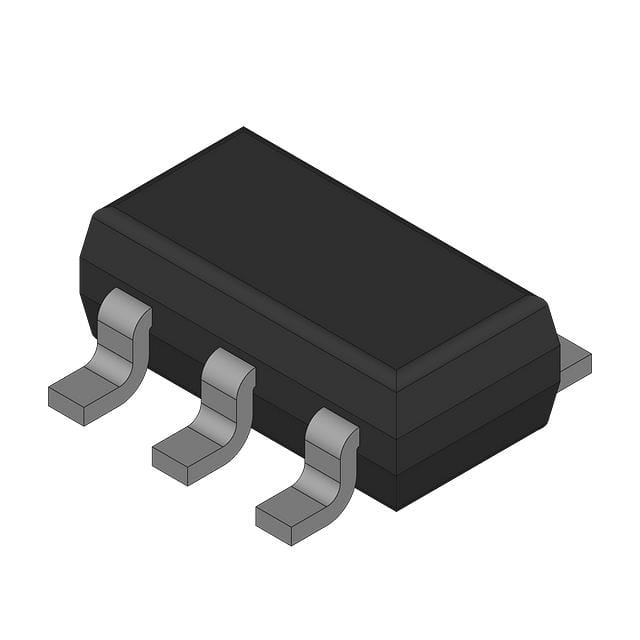

NCP4620DSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.4V @ 150mA | 150mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP4620HSN50T1GIC REG LINEAR 5V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.4V @ 150mA | 150mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4625DSN50T1GIC REG LINEAR 5V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.75V @ 300mA | 300mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4625HSN50T1GIC REG LINEAR 5V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 5V | - | 0.75V @ 300mA | 300mA | 40 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCP4629HDT050T5GIC REG LINEAR 5V 500MA DPAK-5 |
0 |
|
Datasheet | - | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.18V @ 200mA | 500mA | 130 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Surface Mount | TO-252 (DPAK) |
|
NCP4640H030T1GIC REG LINEAR 3V 50MA SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 36V | 3V | - | 1V @ 20mA | 50mA | 20 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | SOT-89-5 |
|
NCP4640H033T1GIC REG LINEAR 3.3V 50MA SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 20mA | 50mA | 20 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | SOT-89-5 |
