Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFX27001TF V18IC REG LINEAR 1.8V 1A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 1.8V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-3 |
|
|
IFX27001TF V26IC REG LINEAR 2.6V 1A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 2.6V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-3 |
|
|
IFX27001TFV33ATMA1IC REG LINEAR 3.3V 1A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-3 |
|
|
IFX27001TFV50ATMA1IC REG LINEAR 5V 1A TO252-3 |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-3 |
|
IFX25001TS V10IC REG LINEAR 10V 400MA TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 10V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | PG-TO220-3-1 |
|
|
IFX25001TSV50AKSA1IC REG LINEAR 5V 400MA TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | PG-TO220-3-1 |
|
|
IFX25001TS V85IC REG LINEAR 8.5V 400MA TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 40V | 8.5V | - | 0.5V @ 250mA | 400mA | 220 µA | 30 mA | 60dB (100Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | PG-TO220-3-1 |
|
AP1117Y18G-13IC REG LINEAR 1.8V 1A SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1117Y50G-13IC REG LINEAR 5V 1A SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1117YG-13IC REG LINEAR POS ADJ 1A SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 5V | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|

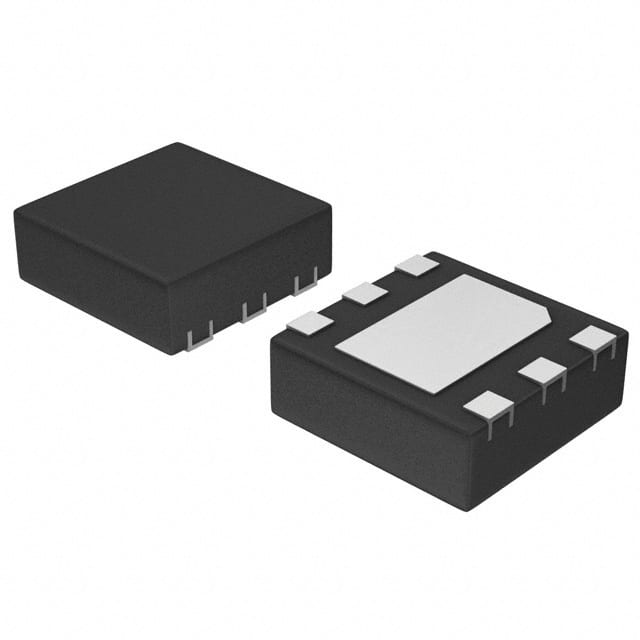

CAT6219180VP5GT4IC REG LINEAR 1.8V 500MA 6TDFN |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.5V @ 500mA | 500mA | 75 µA | 90 µA | 64dB ~ 54dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (2x2) |
|
NCP694D10HT1GIC REG LINEAR 1V 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | 0.64V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCP694D33HT1GIC REG LINEAR 3.3V 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.18V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP694DADJHT1GIC REG LINEAR POS ADJ 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1V | 6V | 0.18V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
NCP694DSAN33T1GIC REG LINEAR 3.3V 1A 6HSON |
0 |
|
Datasheet | - | 6-VQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.18V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-HSON (2.9x3) |
|
|
NCP694H10HT1GIC REG LINEAR 1V 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1V | - | 0.64V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP694H12HT1GIC REG LINEAR 1.2V 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | 0.56V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP694H33HT1GIC REG LINEAR 3.3V 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.18V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP694HADJHT1GIC REG LINEAR POS ADJ 1A SOT89-5 |
0 |
|
Datasheet | - | SOT-89-5/6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1V | 6V | 0.18V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-5 |
|
|
NCP694HSAN12T1GIC REG LINEAR 1.2V 1A 6HSON |
0 |
|
Datasheet | - | 6-VQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | 0.56V @ 1A (Typ) | 1A | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-HSON (2.9x3) |
