Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2930T-8.0IC REG LINEAR 8V 150MA TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 26V | 8V | - | 0.6V @ 150mA | 150mA | 7 mA | 40 mA | 52dB (120Hz) | - | Load Dump, Mirror-Image Insertion, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Through Hole | TO-220-3 |
|
LP2960AIM-5.0IC REG LINEAR 5V 500MA 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 500mA | 500mA | 600 µA | 40 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
LP2960IM-5.0IC REG LINEAR 5V 500MA 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.8V @ 500mA | 500mA | 600 µA | 40 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
TPS70358MHKHIC REG LINEAR 3.3V/2.5V 20-CFP |
0 |
|
Datasheet | - | 20-CDFF | Tube | Active | Positive | Fixed | 2 | 6V | 3.3V, 2.5V | - | 0.25V @ 1A, - | 1A, 2A | 250 µA | - | 65dB (1kHz), 60dB (1kHz) | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 20-CFP |
|

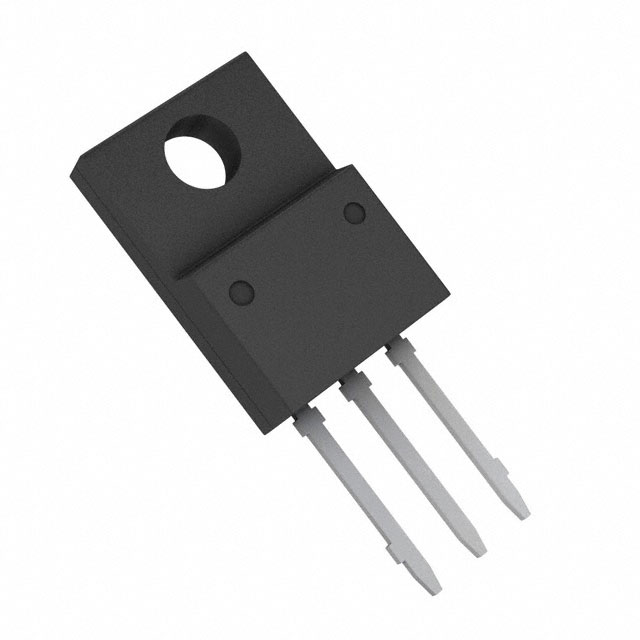

BA7808CP-E2IC REG LINEAR 8V 1A TO220CP-3 |
0 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 23V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA7818CP-E2IC REG LINEAR 18V 1A TO220CP-3 |
0 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 33V | 18V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 61dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA7824CP-E2IC REG LINEAR 24V 1A TO220CP-3 |
0 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 33V | 24V | - | 2V @ 1A (Typ) | 1A | 8 mA | 800 µA | 58dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
|
BA78M12CP-E2IC REG LIN 12V 500MA TO220CP-3 |
0 |
|
Datasheet | - | TO-220-3 Cropped Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 27V | 12V | - | 2V @ 500mA (Typ) | 500mA | 6 mA | 800 µA | 63dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Through Hole | TO-220CP-3 |
|
NCV4279A50D1R2GIC REG LINEAR 5V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 250 µA | 3 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
NCV4949ADR2GIC REG LINEAR 5V 100MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 260 µA | 5 mA | - | Reset Output | Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NCV8606MNADJT2GIC REG LINEAR POS ADJ 500MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.25V | 5V | 0.47V @ 500mA | 500mA | 180 µA | - | 62dB ~ 40dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
|
NCV86601BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86602BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86603BD33R2GIC REG LINEAR 3.3V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | - | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV86603BD50R2GIC REG LINEAR 5V 150MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 30 µA | 40 µA | 60dB (100Hz) | Reset | Over Current, Over Temperature | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCP571MN09TBGIC REG LINEAR 0.9V 150MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 0.9V | - | 0.75V @ 10mA | 150mA | 1 µA | 8 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2.2) |
|
CMPWR280TNIC REG LINEAR 3.3V 1.5A TO263-5 |
0 |
|
Datasheet | SmartOR™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | - | 1.5A | 200 µA | 3 mA | - | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | TO-263-5 |
|
CMPWR025RIC REG LINEAR 600MA 8MSOP |
0 |
|
Datasheet | SmartOR™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | - | - | 1 | 5.5V | - | - | - | 600mA | 50 µA | - | - | - | - | 0°C ~ 70°C | - | - | Surface Mount | 8-MSOP |
|
CMPWR101RIC REG LINEAR 3.3V 250MA 8SOIC |
0 |
|
Datasheet | SmartOR™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 250mA | 400 µA | 1.2 mA | - | - | Over Current, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | 8-SOIC |
|

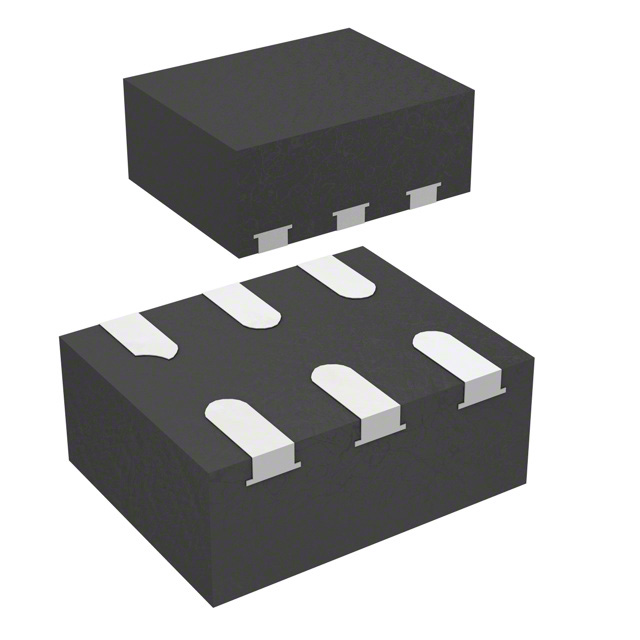

NCP508MT28TBGIC REG LINEAR 2.8V 50MA 6WDFN |
0 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.8V | - | 0.18V @ 50mA (Typ) | 50mA | 1 µA | 1.9 mA | 70dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WDFN (1.5x1.5) |
