Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP115ASN250T1GLDO REGULATOR, 300 MA, LOW IQ, H |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 300mA | 95 µA | - | - | Enable | Over Current, Over Temperature | 150°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
NCP171AMX250245TCGLDO REGULATOR, ULTRA-LOW 50NA IQ |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 5.5V | 0.6V | 3.3V | - | 80mA | 95 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1.2x1.2) |
|
NCP552SQ15T1G80 MA CMOS LOW IQ NOCAP VOLTAGE |
0 |
|
Datasheet | NOCAP™ | SC-82A, SOT-343 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 1.5V | - | 1.8V @ 80mA | 180mA | 6 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
NCV5500DTADJRKG-IR01LDO REGULATOR, 500 MA, LOW DROPO |
0 |
|
Datasheet | - | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 16V | 1.25V | 5V | 0.7V @ 500mA | 500mA | 500 µA | 20 mA | 75dB ~ 70dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|

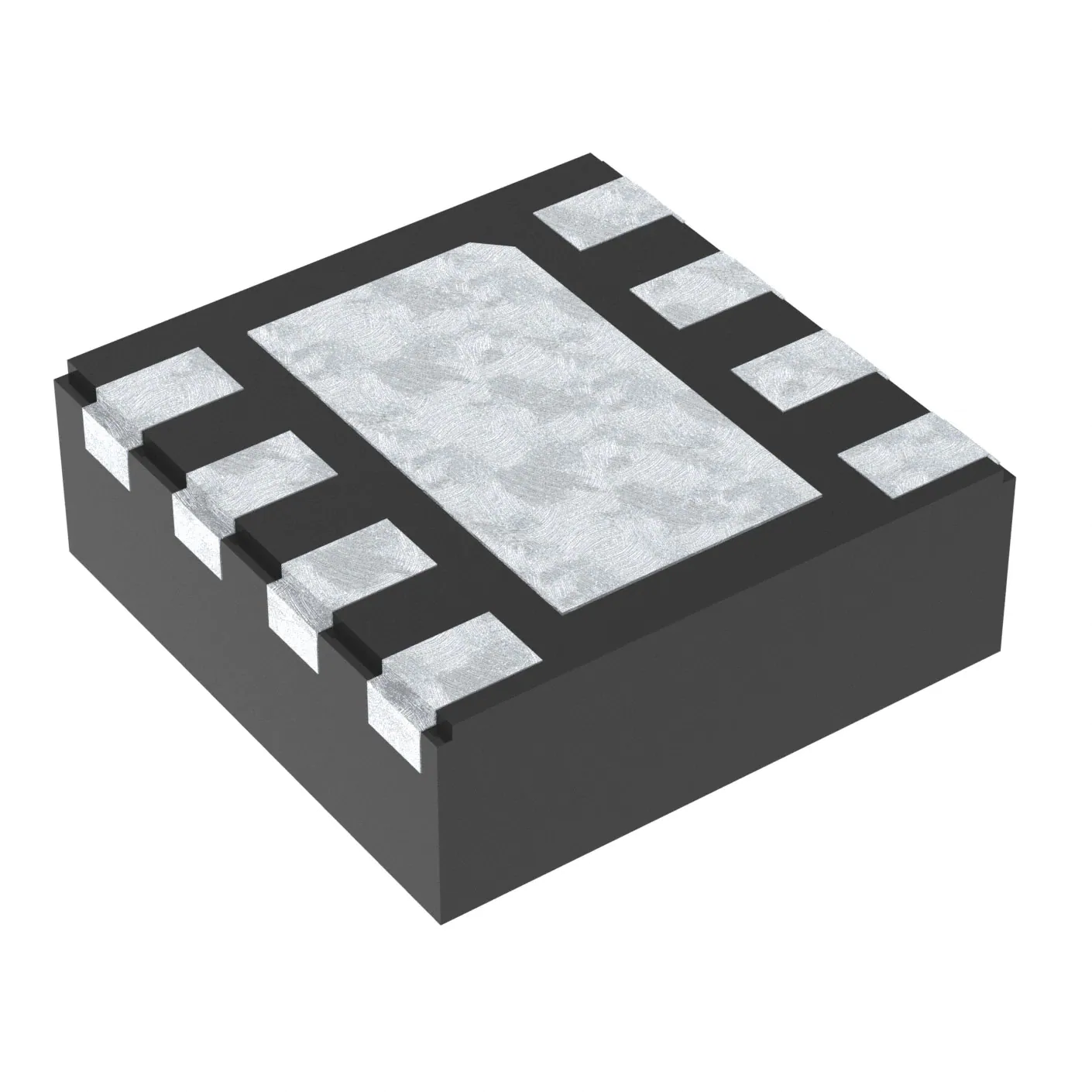

NCV8177AMTW110TCGLDO REGULATOR, 500 MA, HIGH PSRR |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.1V | - | - | 500mA | 90 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WDFNW (2x2) |
|
|
NCP115ASN150T1GLDO REGULATOR, 300 MA, LOW IQ, H |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 300mA | 95 µA | - | - | Enable | Over Current, Over Temperature | 150°C (TJ) | - | - | Surface Mount | 5-TSOP |
|

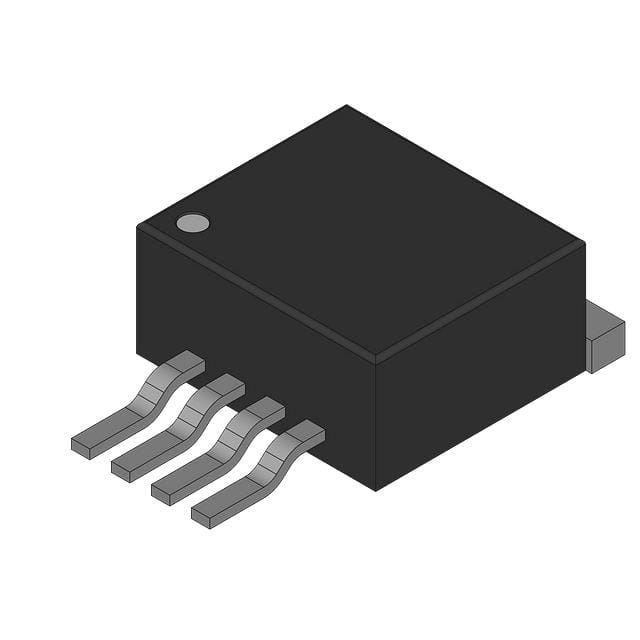

CS5253B-8GDP5G3 A LDO 5-PIN 2.5 V FIXED LINEAR |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 13V | 2.5V | - | 1.3V @ 3A | 3A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK-5 |
|
|
NCV8163BSN180T1GLDO REGULATOR, 250 MA, ULTRA-LOW |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.28V @ 250mA | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
