Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP2985I30/DWALP2985I30/DWA |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLE42632GMXUMA1IC REG LINEAR 5V 200MA DSO14-30 |
0 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | - | 180mA | - | - | - | Delay, Inhibit, Reset Output, Watchdog | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14-61 |
|
|
TLE42632GSXUMA1IC REG LINEAR 5V 200MA DSO8-16 |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 45V | 5V | - | - | 180mA | - | - | - | Delay, Inhibit, Reset Output, Watchdog | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-62 |
|
MCP1792-5002H/DBVAOIC REG LINEAR 5V 70MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 55V | 5V | - | 1.2V @ 100mA | 100mA | 45 µA | 150 µA | 80dB ~ 55dB (100Hz ~ 100kHz) | Soft Start | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
|
MCP1799-5002H/DBVAOIC REG LINEAR 5V 70MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 45V | 5V | - | 1.1V @ 80mA | 80mA | 45 µA | 110 µA | 70dB ~ 35dB (100Hz ~ 100kHz) | Current Limit, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-223-3 |
|
NCV8570SN28T1G200 MA LOW NOISE RF LOW DROPOUT |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.205V @ 200mA | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
CS5231-3GDF8500MA, 3.3V LINEAR REGULATOR WIT |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 14V | 3.3V | - | 0.45V @ 500mA | 500mA | 3 mA | 6 mA | - | - | Over Current, Over Temperature, Reverse Current | 0°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
|
CAT6220VP5I-GT3LINEAR VOLTAGE REGULATOR, 300 MA |
0 |
|
Datasheet | - | 6-WDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 6.5V | 1.24V | 6.5V | 0.5V @ 300mA | 300mA | 15 µA | 100 µA | 62dB ~ 48dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-WDFN (2x2) |
|
NCP115AMX300TBGLDO REGULATOR, 300 MA, LOW IQ, H |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3V | - | - | 300mA | 95 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature | 150°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCP706BMX295TAGLDO REGULATOR, 1 A, ULTRA-LOW DR |
0 |
|
Datasheet | - | 8-XFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3V | - | 0.23V @ 1A | 1A | 230 µA | 200 µA | 65dB ~ 52dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-XDFN (1.6x1.2) |
|
NCP552SQ27T1G80 MA CMOS LOW IQ NOCAP VOLTAGE |
0 |
|
Datasheet | NOCAP™ | SC-82A, SOT-343 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 2.7V | - | 1.2V @ 80mA | 180mA | 6 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
NCV8570SN25T1G200 MA LOW NOISE RF LOW DROPOUT |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.215V @ 200mA | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
NCP552SQ28T1G80 MA CMOS LOW IQ NOCAP VOLTAGE |
0 |
|
Datasheet | NOCAP™ | SC-82A, SOT-343 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 2.8V | - | 1.2V @ 80mA | 180mA | 6 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
SCV2951ACDR2GLDO REGULATOR, 100 MA, ULTRA-LOW |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Positive | Adjustable (Fixed) | 1 | 30V | 1.25V (5V) | 29V | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | Enable, Error Flag | Over Current, Over Temperature | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|

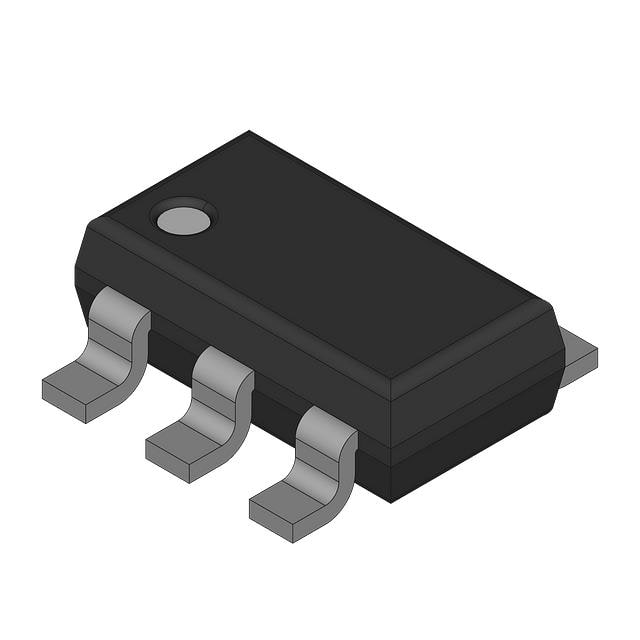

CAT6220TDI-GT3LINEAR VOLTAGE REGULATOR, 300 MA |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Adjustable | 1 | 6.5V | 1.24V | 6.5V | 0.5V @ 300mA | 300mA | 15 µA | 100 µA | 62dB ~ 48dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
|
NCP152MX180180TCGLDO REGULATOR, 150 MA, DUAL OUTP |
0 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Bulk | Discontinued at Digi-Key | Positive | Fixed | 2 | 5.25V | 1.8V | - | 0.4V @ 150mA | 150mA, 150mA | 200 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.2x1.2) |
|
|
NCP552SQ33T1G80 MA CMOS LOW IQ NOCAP VOLTAGE |
0 |
|
Datasheet | NOCAP™ | SC-82A, SOT-343 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 12V | 3.3V | - | 1V @ 80mA | 180mA | 6 µA | 6 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-82AB |
|
|
NCP115ASN120T1GLDO REGULATOR, 300 MA, LOW IQ, H |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 95 µA | - | - | Enable | Over Current, Over Temperature | 150°C (TJ) | - | - | Surface Mount | 5-TSOP |
|
|
NCV8570SN275T1G200 MA LOW NOISE RF LOW DROPOUT |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 2.75V | - | 0.205V @ 200mA | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
NCV8570SN30T1G200 MA LOW NOISE RF LOW DROPOUT |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 200mA | 200mA | 90 µA | 220 µA | 80dB ~ 65dB (120Hz ~ 10kHz) | Enable | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
