Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD3985FV-E2IC REG LINEAR POS/NEG ADJ 8SSOPB |
0 |
|
Datasheet | - | 8-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Positive and Negative | Adjustable | 2 | 18V, -6V | ±5V | 16V, -8.5V | 0.35V @ 25mA, 0.45V @ 50mA | 25mA, 50mA | 0.5 mA | 850 µA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP-B |
|
BD35231HFN-TRIC REG LINEAR 1.2V 2A 8HSON |
0 |
|
- |
- | 8-PowerUDFN | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 4.5V | 1.2V | - | - | 2A | 0.7 mA | 1.2 mA | - | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -10°C ~ 100°C | - | - | Surface Mount | 8-HSON |
|
BD35221EFV-E2IC REG LINEAR 1.2V 4A 20HTSSOP |
0 |
|
- |
- | 20-VSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 4.5V | 1.2V | - | - | 4A | 1.4 mA | 2.2 mA | - | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -10°C ~ 100°C | - | - | Surface Mount | 20-HTSSOP-B |
|
|
BD3522EFV-E2IC REG LIN POS ADJ 4A 20HTSSOP |
0 |
|
- |
- | 20-VSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 4.5V | 0.65V | 2.7V | - | 4A | 1.4 mA | 2.2 mA | - | Enable, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -10°C ~ 100°C | - | - | Surface Mount | 20-HTSSOP-B |
|
NCP4589DSN33T1GIC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 3.3V | - | 0.35V @ 300mA | 300mA | 4 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|

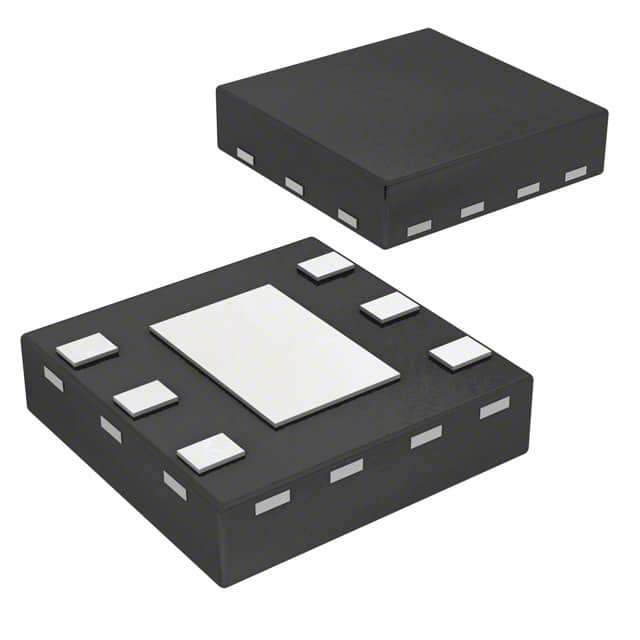

NCP4626DMX045TCGIC REG LINEAR 4.5V 300MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.5V | - | 1V @ 300mA | 300mA | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.6x1.6) |
|
|
NCP4626HMX045TCGIC REG LINEAR 4.5V 300MA 6XDFN |
0 |
|
Datasheet | - | 6-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 4.5V | - | 1V @ 300mA | 300mA | 100 µA | - | 70dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-XDFN (1.6x1.6) |
|
NCV4949ADWR2GIC REG LINEAR 5V 100MA 20SOIC |
0 |
|
Datasheet | - | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 260 µA | 5 mA | - | Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-SOIC |
|
NCV8518BPWR2GIC REG LINEAR 5V 250MA 16SOIC |
0 |
|
- |
- | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.75V @ 150mA | 250mA | 150 µA | - | - | Enable, Reset, Wake-Up, Watchdog | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
NCV87721D5S50R4GIC REG LINEAR 5V 350MA D2PAK-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
NCV8768ABD250R2GIC REG LINEAR 5V 150MA 14SOIC |
0 |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 150mA | 150mA | 35 µA | 36 µA | 60dB (100Hz) | Enable, Reset, Watchdog | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
ISL78307FBEAZ-TIC REG LINEAR 3.3V 50MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | 1 | - | - | - | - | 50mA | - | - | - | - | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
ISL78307FBECZ-TIC REG LINEAR LDO ADJ 50MA 8SOIC |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ISL80101IR33Z-TIC REG LINEAR 3.3V 1A 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.212V @ 1A | 1A | 5 mA | 7 mA | 65dB ~ 58dB (120Hz ~ 1kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
ISL78307FBEBZIC REG LINEAR 5V 50MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tray | Obsolete | - | - | 1 | - | - | - | - | 50mA | - | - | - | - | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
ISL78307FBECZIC REG LINEAR POS ADJ 50MA 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tray | Obsolete | Positive | Adjustable | 1 | 40V | 2.5V | 12V | - | 50mA | 24 µA | 82 µA | 58dB (100Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
ISL80101IR33ZIC REG LINEAR 3.3V 1A 10DFN |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad | Tube | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.212V @ 1A | 1A | 5 mA | 7 mA | 65dB ~ 58dB (120Hz ~ 1kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-DFN (3x3) |
|
|
NCP4623HSN100T1GIC REG LINEAR 10V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 10V | - | 0.5V @ 20mA | 150mA | 10 µA | - | 35dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4623HSNADJT1GIC REG LIN POS ADJ 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 24V | 2.5V | 24V | 0.4V @ 150mA | 150mA | 10 µA | - | 40dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
NCP4686DSN08T1GIC REG LINEAR 0.8V 400MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 0.8V | - | 0.54V @ 400mA | 400mA | 75 µA | - | 60dB (10kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
