IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS150R12N2T7B54BPSA1LOW POWER ECONO |
6 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
F1225R12KT4GBOSA1IGBT MOD 1200V 25A 160W |
8 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KT3BOSA1IGBT MOD 1200V 200A 700W |
8 |
|
- |
EconoPACK™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS75R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
11 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FS75R17KE3BOSA1IGBT MOD 1700V 130A 465W |
8 |
|
- |
- | Module | Tray | Active | - | Full Bridge | 1700 V | 130 A | 465 W | 2.45V @ 15V, 75A | 5 mA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|

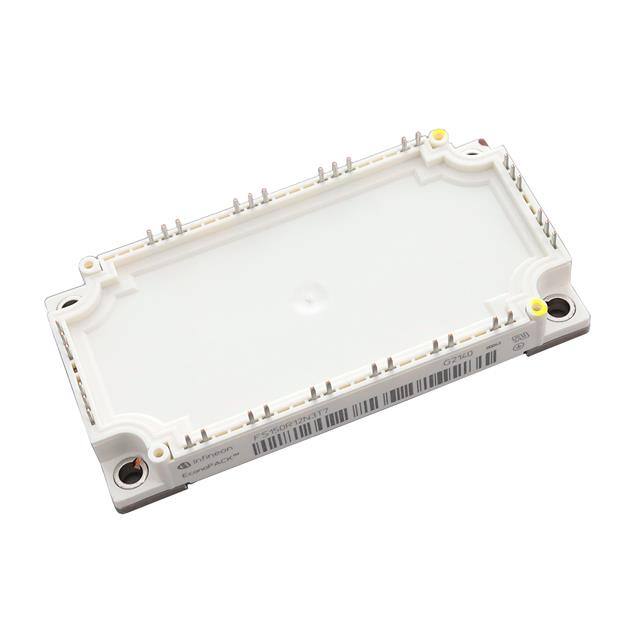

FS150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
FP100R12N3T7B11BPSA1LOW POWER ECONO AG-ECONO3B-711 |
2 |
|
- |
EconoPIM™ 3 | - | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | - | - | - | Standard | No | - | - | - |
|
|
FS100R17N3E4BOSA1IGBT MOD 1700V 100A 600W |
6 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 100 A | 600 W | 2.3V @ 15V, 100A | 1 mA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F4200R12N3H3FB11BPSA1LOW POWER ECONO AG-ECONO3B-411 |
10 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FF200R12KS4PHOSA1IGBT MOD 1200V 275A 1400W |
4 |
|
- |
- | Module | Tray | Active | - | Half Bridge | 1200 V | 275 A | 1400 W | 3.7V @ 15V, 200A | 5 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
F3L400R07W3S5B59BPSA1LOW POWER EASY AG-EASY3B-7011 |
3 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 255 A | - | 1.13V @ 15V, 100A | 19 µA | 14.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
|
FP75R06KE3BOSA1IGBT MODULE 600V 95A 250W |
7 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 95 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KT3GBOSA1IGBT MOD 1200V 100A 355W |
3 |
|
- |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FD300R17KE4PHOSA1IGBT MODULE 1700V 300A AG62MM-1 |
2 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Single Chopper | 1700 V | 300 A | - | 2.3V @ 15V, 300A | 1 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-62MM-1 |
|
|
FP150R12N3T7B11BPSA1LOW POWER ECONO |
2 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP100R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3-386 |
10 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS150R12N3T4B80BPSA1LOW POWER ECONO AG-ECONO3B-431 |
10 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS100R12KT3BOSA1IGBT MOD 1200V 140A 480W |
5 |
|
- |
EconoPIM™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 140 A | 480 W | 2.15V @ 15V, 100A | 5 mA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FF600R12KT4HOSA162MM POWER MODULE 1200 V WITH IG |
4,960 |
|
- |
C | Module | Bulk | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-62MM |
|
FP200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-3 |
10 |
|
- |
EconoPIM™3, TRENCHSTOP™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 20 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
