IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ2000R33HE4BOSA1IGBT MOD IHV IHM T XHP 3 3-6 5K |
5 |
|
- |
IHM-B | Module | Bulk | Active | Trench Field Stop | Single Switch | 3300 V | 2000 A | 4200 W | 2.2V @ 15V, 2kA (Typ) | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190-3 |
|
IM241S6T2BAKMA1CIPOS MICRO |
74 |
|
- |
IM241, CIPOS™ | - | Tube | Active | - | Three Phase Inverter | 600 V | - | 9 W | 1.78V @ 15V, 500mA | - | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | 23-DIP |
|
FS30R06W1E3BOMA1IGBT MODULE 600V 60A 150W |
28 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 60 A | 150 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APT85GR120JIGBT MOD 1200V 116A 543W SOT227 |
10 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
DDB6U50N22W1RPB11BPSA1EASY BRIDGE MODULE |
30 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP10R06W1E3BOMA1IGBT MODULE 600V 16A 68W |
2 |
|
- |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 16 A | 68 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP15R06W1E3BOMA1IGBT MODULE 600V 22A 81W |
12 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 22 A | 81 W | 2V @ 15V, 15A | 1 mA | 830 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP15R12W1T7B3BOMA1IGBT MODULE LOW POWER EASY |
1 |
|
- |
TrenchStop™ | Module | Bulk | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
.jpg)
|
FS25R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
19 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
FP10R12W1T4B3BOMA1IGBT MOD 1200V 20A 105W |
22 |
|
- |
EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | 105 W | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
APT85GR120JD60IGBT MOD 1200V 116A 543W SOT227 |
20 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1.1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT80GP60JIGBT MOD 600V 151A 462W ISOTOP |
18 |
|
- |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1 mA | 9.84 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
FS25R12W1T4B11BOMA1IGBT MOD 1200V 45A 205W |
17 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 45 A | 205 W | 2.25V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP30R06W1E3BOMA1IGBT MODULE 600V 37A 115W |
11 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 115 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP15R12W1T7B11BOMA1IGBT MODULE LOW POWER EASY |
7,025 |
|
- |
TrenchStop™ | Module | Bulk | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | - | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|
|
DDB6U50N16W1RPBPSA1LOW POWER EASY AG-EASY1B-711 |
27 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 6.2 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
DDB6U50N16W1RPB11BPSA1LOW POWER EASY |
30 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 6.2 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | No | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|

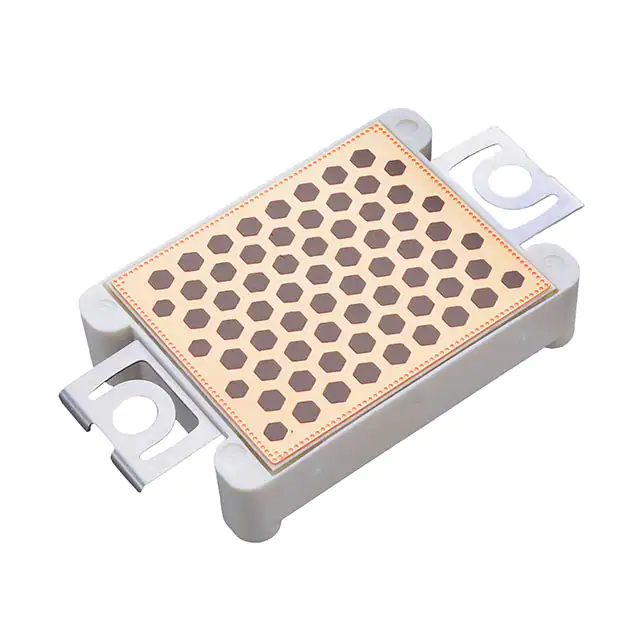

FS25R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
9 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | - | - | 5.6 µA | 4.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
|
FP15R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
9 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 15 A | - | - | 3 µA | 2.82 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B-2 |
|

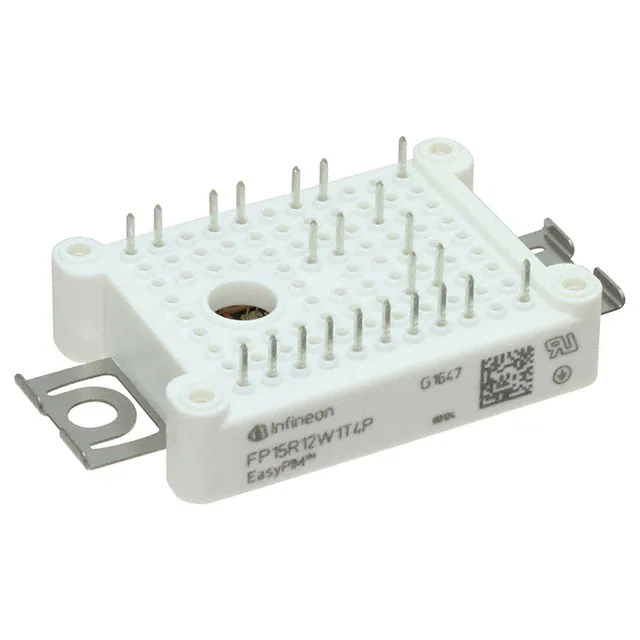

FP15R12W1T4PBPSA1IGBT MOD 1200V 30A 20MW |
29 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | - | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
