IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF300R08W2P2B11ABOMA1EASY PACK AG-EASY2B-3 |
4 |
|
- |
EasyPACK™ | Module | Tray | Active | - | 2 Independent | 750 V | 200 A | - | 1.18V @ 15V, 200A | 1 mA | 53 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B-3 |
|

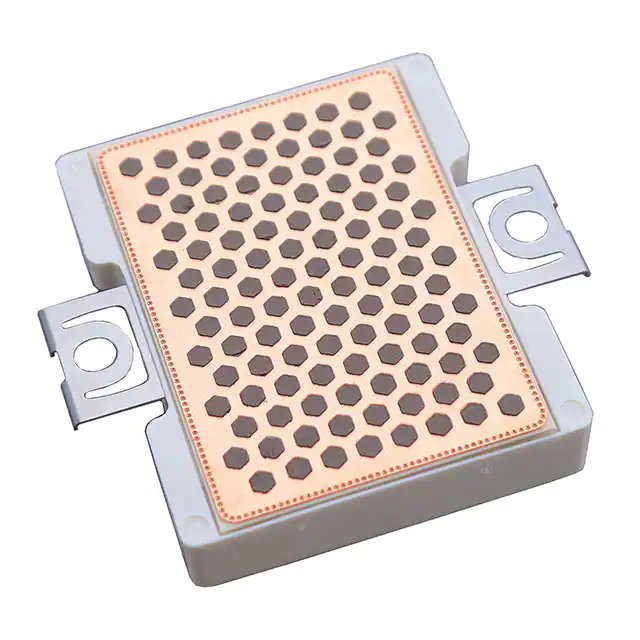

FS100R12W2T7PBPSA1LOW POWER EASY AG-EASY2B-711 |
19 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 70 A | - | - | 9 µA | 21.7 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY2B |
|
DF80R12W2H3FB11BPSA1IGBT MOD 1200V 20A 20MW |
13 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 20 A | - | 1.7V @ 15V, 20A | 1 mA | 2.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
NXH80T120L3Q0S3GPIM GENERATION3 Q0PACK 1200V, 80 |
24 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18.15 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
FP50R12KT3BOSA1IGBT MOD 1200V 75A 280W |
7 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FP35R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2C-211 |
9 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 210 W | 2.15V @ 15V, 35A | 1 mA | 2 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2C |
|
|
FP50R12N2T7BPSA2LOW POWER ECONO |
5 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
DF300R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
15 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 90 A | - | 2V @ 15V, 150A | 26 µA | 2.95 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
|
FP75R12N3T7BPSA1LOW POWER ECONO |
10 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP75R12N2T7BPSA2LOW POWER ECONO |
4 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP40R12KT3BPSA1LOW POWER ECONO |
17 |
|
- |
- | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 55 A | 105 W | 2.3V @ 15V, 40A | 5 mA | 2.5 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
|
DDB6U134N16RRB11BPSA2LOW POWER ECONO AG-ECONO2B-211 |
12 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | - | Single Chopper | 1200 V | 125 A | 400 W | 2.6V @ 15V, 75A | 1 mA | 5.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FS3L30R07W2H3FB11BPSA2IGBT MOD 650V 30A 20MW |
14 |
|
- |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 650 V | 30 A | - | 1.9V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L150R12W2H3B11BPSA1IGBT MOD 1200V 75A 500W |
9 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 75 A | 500 W | 1.75V @ 15V, 75A | 1 mA | 8.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
NXH40B120MNQ1SNG30KW Q1BOOST FULL SIC |
15 |
|
- |
- | Module | Tray | Active | - | Triple, Dual - Common Source | - | - | 156 W | - | - | 3.227 nF @ 800 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 32-PIM (71x37.4) |
|
FF300R07KE4HOSA1IGBT MODULE 650V 940W |
2 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | - | 940 W | 1.95V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP75R12N3T7B11BPSA1LOW POWER ECONO |
3 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 13 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FP40R12KE3GBOSA1IGBT MOD 1200V 55A 210W |
4 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 55 A | 210 W | 2.3V @ 15V, 40A | 1 mA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS50R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
12 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP75R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
8 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
