IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS200R12N3T4RB81BPSA1LOW POWER ECONO AG-ECONO3-4 |
10 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F4150R17N3P4B58BPSA1LOW POWER ECONO AG-ECONO3B-411 |
5 |
|
- |
EasyPACK™3 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 150 A | - | 2.2V @ 15V, 150A | 1 mA | 12.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO3B |
|
FP150R12KT4BPSA1IGBT MODULE 1200V 150A |
3 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FP150R12KT4PBPSA1IGBT MODULE 1200V 150A |
3 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS150R12PT4BOSA1IGBT MOD 1200V 200A 680W |
4,378 |
|
- |
EconoPACK™ 4 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | 680 W | 2.15V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP200R12N3T7B11BPSA1LOW POWER ECONO |
2 |
|
- |
EconoPIM™3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.55V @ 15V, 200A | 20 µA | 40.3 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
FS3L200R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
24 |
|
- |
EasyPACK™ | Module | Bulk | Active | Trench Field Stop | Three Level Inverter | 950 V | 70 A | - | 1.55V @ 15V, 25A | 31 µA | 6.48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
|
FS3L400R10W3S7FB11BPSA1950 V 400 A EASYPACK MODULE WITH |
8 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 120 A | - | 1.48V @ 15V, 45A | 26 µA | 12.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY3B |
|
F4200R17N3E4B58BPSA1LOW POWER ECONO AG-ECONO3B-411 |
2 |
|
- |
EasyPACK™3 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1700 V | 200 A | - | 2.3V @ 15V, 200A | 1 mA | 16 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO3B |
|
F3L300R07PE4BOSA1IGBT MOD 650V 300A 940W |
4 |
|
- |
EconoPACK™ 4 | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 300 A | 940 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L400R10W3S7B11BPSA1IGBT MODULE LOW POWER EASY |
8 |
|
- |
- | Module | Tray | Active | Trench | - | 950 V | - | - | 1.4V @ 15V, 150A | 70 µA | 25.2 nF @ 25 V | - | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
F3L600R10W4S7FC22BPSA1LOW POWER EASY AG-EASY4B-7011 |
6 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 310 A | - | 2.25V @ 15V, 400A | 1 mA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY4B |
|
FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W |
10 |
|
- |
- | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF750R17ME7DB11BPSA1MEDIUM POWER ECONO |
2 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 750 A | - | 1.85V @ 15V, 750A | 5 mA | 78.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FS225R12OE4BOSA1IGBT MOD 1200V 350A 1250W |
2 |
|
- |
EconoPACK™+ | Module | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 350 A | 1250 W | 2.15V @ 15V, 225A | 3 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS300R17OE4BOSA1IGBT MOD 1700V 450A 1850W |
5 |
|
- |
EconoPACK™+ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1700 V | 450 A | 1850 W | 2.3V @ 15V, 300A | 3 mA | 24.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1500R17IP5PBPSA1IGBT MOD 1700V 1500A AGPRIME3+-5 |
3 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1500 A | 1500 W | 2.2V @ 15V, 1.5kA | 5 mA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
3 |
|
- |
PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 1800 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
3 |
|
- |
IHM-B | Module | Tray | Not For New Designs | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

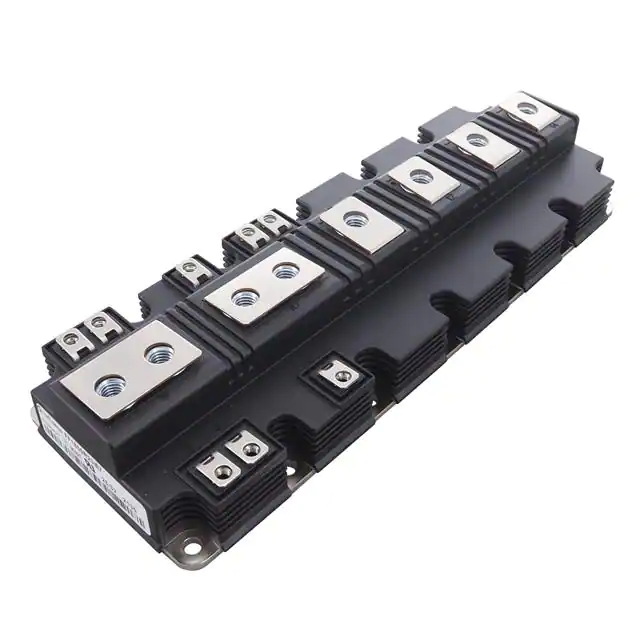

FF1800R23IE7BPSA1PP IHM I XHP 2.3KV AG-PRIME3+-7 |
2 |
|
- |
PrimePACK™3+ B | Module | Tray | Active | - | 2 Independent | 2300 V | 1800 A | - | 2.26V @ 15V, 1.8kA | 30 mA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME3+ |
