IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS3L35R07W2H5C40BPSA1LOW POWER EASY |
11 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF75R12W1T7EB11BPSA1EASY STANDARD |
24 |
|
- |
TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 65 A | 20 mW | 1.8V @ 15V, 75A | 5.6 µA | 15100 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-EASY1B |
|
|
F4250R07W2H5FB11BPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP10R12W1T4PB11BPSA1IGBT MOD 1200V 20A 20MW |
29 |
|
- |
EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 20 A | - | 2.25V @ 15V, 10A | 1 mA | 600 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF80R07W1H5FPB50BPSA1LOW POWER EASY AG-EASY1B-2 |
28 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NXH100B120H3Q0STGIGBT MODULE 1200V 50A 186W PIM22 |
24 |
|
- |
- | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 50 A | 186 W | 2.3V @ 15V, 50A | 200 µA | 9.075 nF @ 20 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | 22-PIM/Q0BOOST (55x32.5) |
|
|
FB50R07W2E3C36BPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS50R12W2T4B11BOMA1IGBT MOD 1200V 83A 335W |
7 |
|
- |
EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FB50R07W2E3B23BOMA1LOW POWER EASY AG-EASY2B-2 |
13 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PBPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FS50R12W2T7PB11BPSA1LOW POWER EASY |
18 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12N2T7BPSA2LOW POWER ECONO |
15 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
NXH50M65L4Q1SGQ1PACK 50A 650V |
21 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | 56-PIM (93x47) |
|

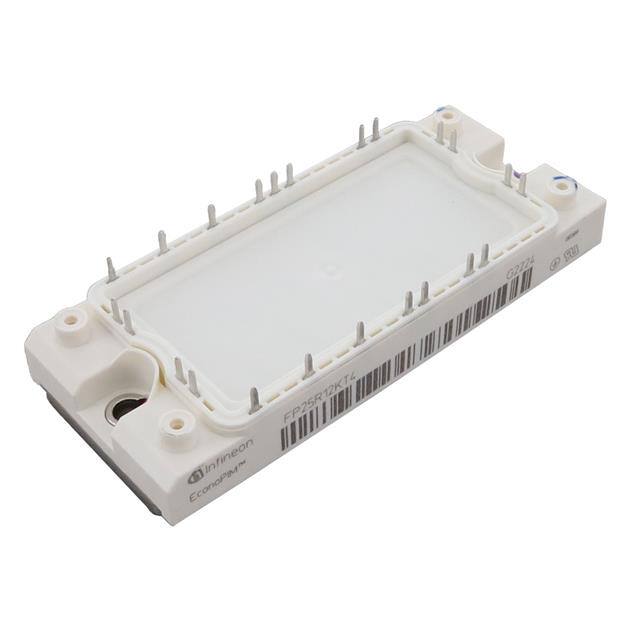

FP25R12KT4BPSA1LOW POWER ECONO AG-ECONO2B-411 |
15 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 160 W | 2.15V @ 15V, 25A | 1 mA | 1.45 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
SNXH75M65L3F2STGIGBT MODULE FULL 650V 75A 32PIM |
20 |
|
- |
- | Module | Tray | Active | Field Stop | Full Bridge Inverter | 650 V | 75 A | 236 W | 2.2V @ 15V, 75A | 250 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 32-PIM (56.7x42.5) |
|
|
APTGLQ25H120T1GIGBT MODULE 1200V 50A 165W SP1 |
9 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 165 W | 2.42V @ 15V, 25A | 50 µA | 1.43 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
NXH75M65L4Q1PTG6KW H6.5 75A Q1PACK PRESS-FIT PI |
21 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge | 650 V | 59 A | 86 W | 2.22V @ 15V, 75A | 300 µA | 5.665 nF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 53-PIM/Q2PACK (93x47) |
|
|
NXH80T120L2Q0S2GPIM 1200V 80A TNPC STAND |
24 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 1200 V | 67 A | 158 W | 2.85V @ 15V, 80A | 300 µA | 19400 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | 20-PIM/Q0PACK (55x32.5) |
|
|
F475R07W2H3B11BPSA1LOW POWER EASY |
15 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NXH100T120L3Q0S1NG1200V GEN III Q0PACK WITH NI-PLA |
24 |
|
- |
- | Module | Tray | Active | - | Three Level Inverter | 650 V | 54 A | 122 W | 2.2V @ 15V, 75A | 200 µA | 4877 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | 18-PIM/Q0PACK (55x32.5) |
