DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2468AEVAL BOARD FOR LT8645S |
40 |
|
Datasheet | Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 5.6V ~ 65V | Buck | 2MHz | Board(s) | LT8645S |
|
DC2841AEVAL BOARD FOR LT8648S |
26 |
|
Datasheet | Silent Switcher®2 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 15A | 5.7V ~ 42V | Buck | 400kHz | Board(s) | LT8648S |
|
TPS552892EVM-111EVAL BOARD FOR TPS552892 |
54 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 12V | 5A, 4A, 3A | 3V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS552892 |
|
TPS55289EVM-093EVAL BOARD FOR TPS55289 |
26 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 3A | 3V ~ 30V | Buck-Boost | 400kHz | Board(s) | TPS55289 |
|
PMLKBUCKEVMEVAL BOARD FOR LM3475 TPS54160 |
47 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 2A, 1.5A | 5V ~ 10V, 6V ~ 36V | Buck | - | Board(s) | LM3475, TPS54160 |
|
|
TPSM82913EVMEVAL BOARD FOR TPSM82913 |
31 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 17V | Buck | - | Board(s) | TPSM82913 |
|
TPS61021EVM-723EVAL BOARD FOR TPS61021 |
28 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 2.3A | 0.9V ~ 3.2V | Boost | 2MHz | Board(s) | TPS61021 |
|
DC2387AEVAL BOARD FOR LTM8071 |
28 |
|
Datasheet | Silent Switcher®, µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 60V | Buck | 1MHz | Board(s) | LTM8071 |
|
TPS62873EVM-143EVAL BOARD FOR TPS62873Q1 |
55 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V | 15A | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62873-Q1 |
|
|
UCC14131EVM-070EVAL BOARD FOR UCC14131Q1 |
29 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 1.5 W | - | - | 11.2V ~ 14V | - | - | Board(s) | UCC14131-Q1 |
|
DC952AEVAL BOARD FOR LTC3810 |
90 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 6A | 13V ~ 80V | Buck | 230kHz | Board(s) | LTC3810 |
|
LMZ14203HEVAL/NOPBEVAL BOARD FOR LMZ14203H |
29 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 3A | 15V ~ 42V | Buck | - | Board(s) | LMZ14203H |
|
TPSM53604EVMEVAL BOARD FOR TPSM53604 |
28 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4A | 3.8V ~ 36V | Buck | - | Board(s) | TPSM53604 |
|
LMZM33602EVMEVAL BOARD FOR LMZM33602 |
71 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V | - | 4V ~ 36V | Buck | - | Board(s) | LMZM33602 |
|

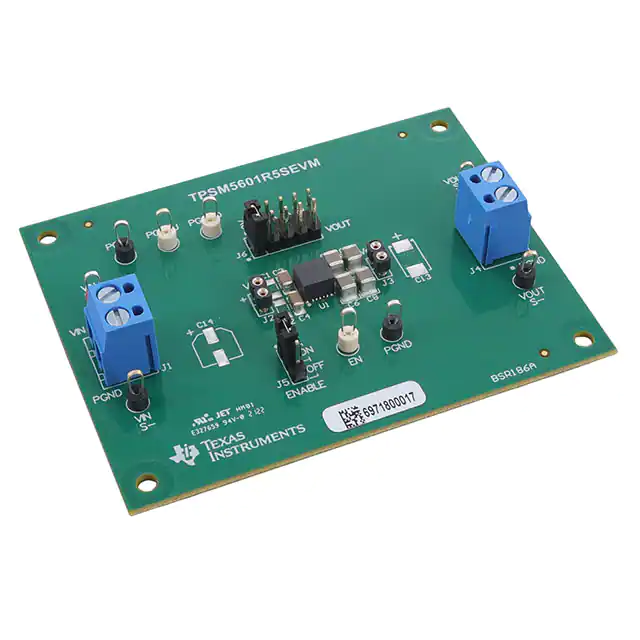

TPSM5601R5SEVMEVAL BOARD FOR TPSM5601R5S |
47 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | - | 4.2V ~ 60V | Buck | - | Board(s) | TPSM5601R5S |
|

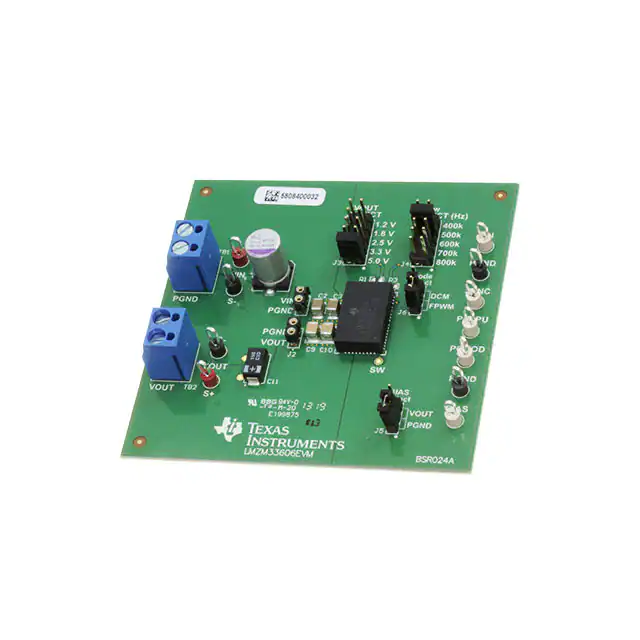

LMZM33606EVMEVAL BOARD FOR LMZM33606 |
36 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 6A | 3.5V ~ 36V | Buck | - | Board(s) | LMZM33606 |
|

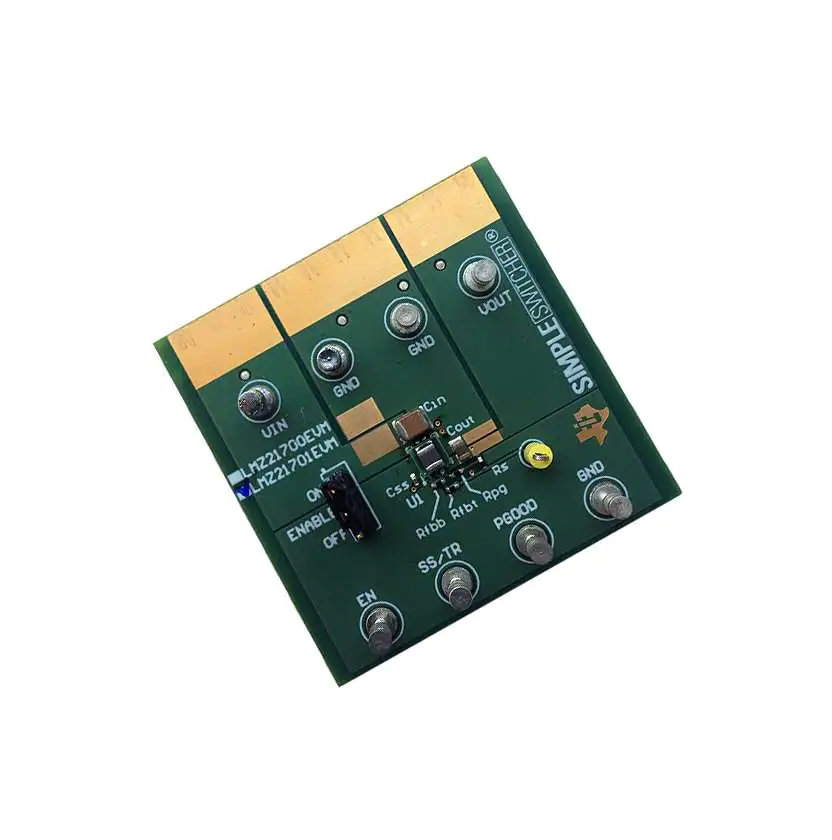

LMZ21701EVMEVAL BOARD FOR LMZ21701 |
79 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 17V | Buck | - | Board(s) | LMZ21701 |
|
LMZ31710EVM-001EVAL BOARD FOR LMZ31710 |
49 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | LMZ31710 |
|
|
RTKA210130DE0020BUEVAL BOARD FOR RAA210130 |
33 |
|
Datasheet | - | Tray | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 30A | 4.75V ~ 15V | Buck | 500kHz | Board(s) | RAA210130 |
|

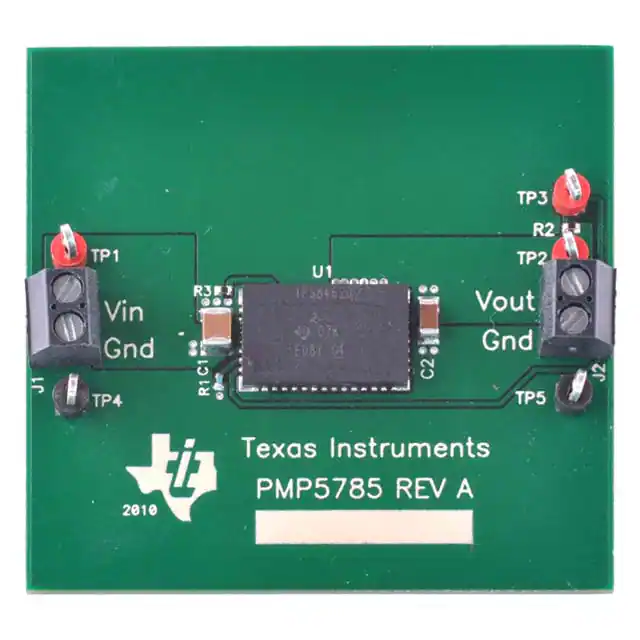

TPS84620EVM-692EVAL BOARD FOR TPS84620692 |
56 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 14.5V | Buck | 630kHz | Board(s) | TPS84620-692 |
