Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0CNN600.VFUSE STRP 600A 125VAC/48VDC BOLT |
2 |
|
Datasheet | POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 600A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
0TLS125.TXLSEFUS 170 VCD F/A TELE-GARD 125A P |
5 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 125A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | - | - |
|
|
0CNN700.VFUSE STRP 700A 125VAC/48VDC BOLT |
6 |
|
Datasheet | POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 700A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FLSR070.VXIDFUSE CARTRIDGE 70A 600VAC/300VDC |
4 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
L50QS150.VFUSE CRTRDGE 150A 500VAC/VDC |
4 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.218" Dia x 3.625" L (30.94mm x 92.08mm) | - | - |
|
L70QS060.VFUSE CARTRIDGE 60A 700VAC/700VDC |
3 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
|
L70QS035.VFUSE CARTRIDGE 35A 700VAC/700VDC |
3 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 35A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
|
L70QS040.VFUSE CARTRIDGE 40A 700VAC/700VDC |
2 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 4.375" L (25.40mm x 111.13mm) | - | - |
|
FLNR200.XXIDFUSE CRTRDGE 300A 250VAC/125VDC |
3 |
|
Datasheet | POWR-GARD® FLNR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 300A | 250 VAC | 125 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.594" Dia x 7.126" L (40.50mm x 181.00mm) | - | - |
|
L75QS060.V750VDC HIGHSPEED SEMICONDUCTOR F |
2 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 60A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 1.000" Dia x 2.875" L (25.40mm x 73.03mm) | - | - |
|
L25S125.VFUSE CARTRIDGE 125A 250VAC/VDC |
10 |
|
Datasheet | POWR-GARD® L25S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 250 VAC | 250 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 1.626" L (31.00mm x 41.30mm) | - | - |
|
JLLN400.XFUSE CRTRDGE 400A 300VAC/125VDC |
2 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 0.827" L (33.30mm x 21.00mm) | - | - |
|
0JTD070.VFUSE CARTRIDGE 70A 600VAC/300VDC |
4 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cylindrical, Blade Terminals | Bulk | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.126" Dia x 2.626" L (28.60mm x 66.70mm) | - | - |
|
L70S100.VFUSE CRTRDGE 100A 700VAC/650VDC |
2 |
|
Datasheet | POWR-GARD® L70S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 700 VAC | 650 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.220" Dia x 2.874" L (31.00mm x 73.00mm) | - | - |
|
L17T350.VFUSE CRTRDGE 350A 170VDC CYLINDR |
2 |
|
Datasheet | POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
L50QS350.VFUSE CRTRDGE 350A 500VAC/VDC |
2 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
FLSR150.XXIDFUSE CRTRDGE 150A 600VAC/300VDC |
3 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 150A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
FLSR200.XXIDFUSE CRTRDGE 200A 600VAC/300VDC |
2 |
|
Datasheet | POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 200A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|

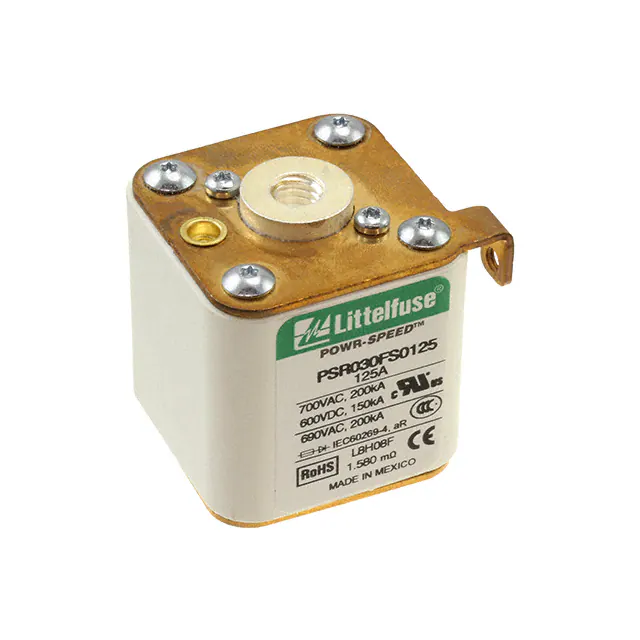

PSR030FS0125ZFUSE SQUARE 125A 700VAC/600VDC |
3 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 125A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
PSR030UL0630ZFUSES POWR-SPEED |
6 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 630A | 700 VAC | 550 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.878" L x 1.693" W x 1.929" H (47.70mm x 43.00mm x 49.00mm) | - | - |
