Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0FLQ1.25TFUSE CRTRDGE 1.25A 500VAC/300VDC |
8 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1.25A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0FLQ001.TFUSE CRTRDG 1A 500VAC/300VDC 5AG |
6 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0FLQ020.TFUSE CARTRIDGE 20A 500VAC/300VDC |
6 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0FLQ010.TFUSE CARTRIDGE 10A 500VAC/300VDC |
2 |
|
Datasheet | POWR-GARD® FLQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 10A | 500 VAC | 300 VDC | Slow Blow | Transformer Protection | - | - | CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV005.TXS1500 VDC 5A PHOTOVOLTAIC FUSE SL |
4 |
|
Datasheet | POWR-GARD® SPXV-S | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 5A | - | 1.5 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, gPV, UL | - | 50kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
|
KLDR006.TXPFUSE CARTRIDGE 6A 600VAC/300VDC |
11 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 6A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR.400TXPFUSE CRTRDGE 400MA 600VAC/300VDC |
10 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 400mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLDR.250TXPFUSE CRTRDGE 250MA 600VAC/300VDC |
8 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 250mA | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR02.5TXPFUSE CRTRDGE 2.5A 600VAC/300VDC |
4 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 2.5A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
KLDR012.TXPFUSE CARTRIDGE 12A 600VAC/300VDC |
4 |
|
Datasheet | POWR-GARD® KLDR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 12A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0TLS040.TXLSFUSE CRTRDGE 40A 170VDC RAD BEND |
9 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 40A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|

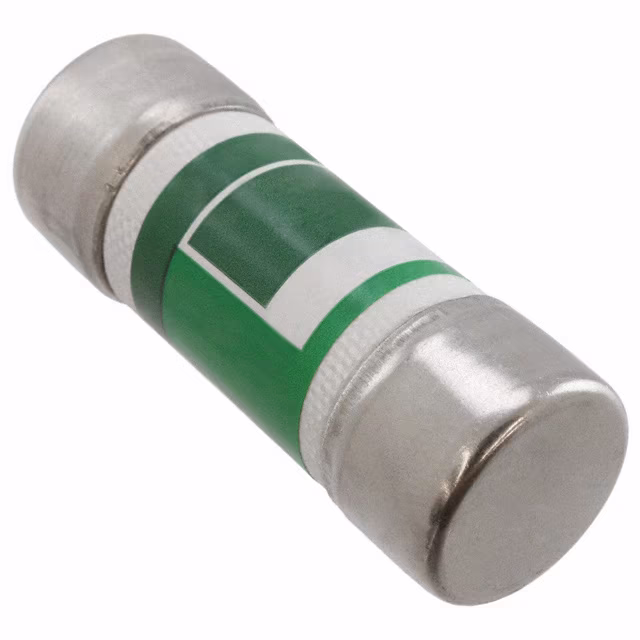

0JTD010.TFUSE CARTRIDGE 10A 600VAC/300VDC |
2 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
L50S010.TFUSE CARTRIDGE 10A 500VAC/450VDC |
13 |
|
Datasheet | POWR-GARD® L50S | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 10A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
|
0TLS100.TXLSFUSE CARTRIDGE 100A 170VDC |
16 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
|
0TLS070.TXLSFUSE CRTRDGE 70A 170VDC RAD BEND |
11 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 70A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.562" Dia x 0.944" L (14.28mm x 23.98mm) | - | - |
|
JLLN070.VFUSE CARTRIDGE 70A 300VAC/125VDC |
10 |
|
Datasheet | POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 70A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 0.843" L (20.60mm x 21.40mm) | - | - |
|
0TLS100.TXLBFUSE CRTRDGE 100A 170VDC CYLINDR |
24 |
|
Datasheet | POWR-GARD® TLS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 1.580" L (14.30mm x 40.13mm) | - | - |
|
0JTD015.TXIDFUSE CARTRIDGE 15A 600VAC/300VDC |
7 |
|
Datasheet | POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|

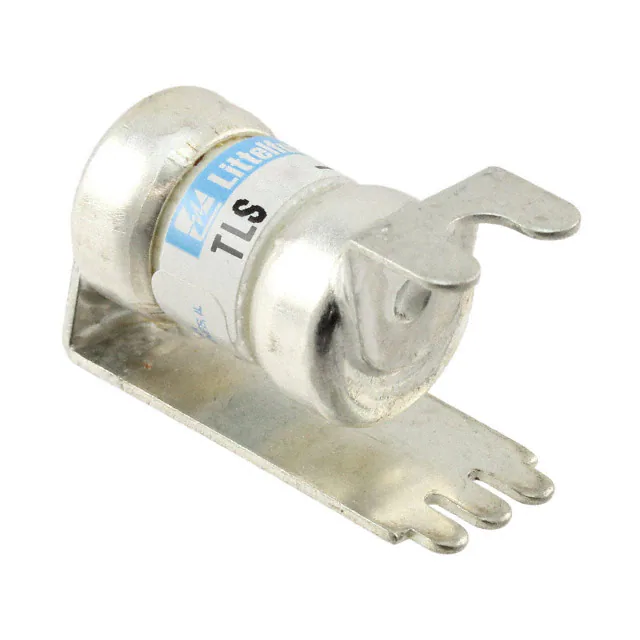

0TLS080.TXVFUSE CRTRDGE 80A 170VDC RAD BEND |
17 |
|
Datasheet | POWR-GARD® TLS | Radial Bend Cylinder | Bulk | Active | Through Hole | Cartridge | 80A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.877" H (14.30mm x 22.28mm) | - | - |
|
FLSR060.TXIDFUSE CARTRIDGE 60A 600VAC/300VDC |
11 |
|
Datasheet | POWR-GARD® FLSR_ID | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 60A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 5.500" L (27.00mm x 139.70mm) | - | - |
