Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA60Q152FUSE CRTRDGE 15A 600VAC/VDC 5AG |
16 |
|
Datasheet | POWR-GARD® LA60Q | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 15A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | UR | - | 200kA AC, 100kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
LNNB0002ZFUSE DUMMY 5AG |
13 |
|
- |
LNNB | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | - | Dummy | - | - | - | - | - | - | - | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.00mm) | - | - |
|

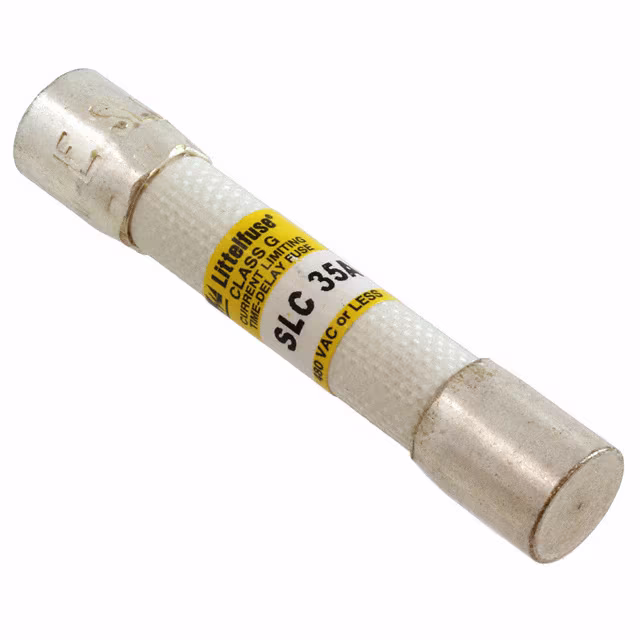

0SLC035.TFUSE CARTRIDGE 35A 480VAC/170VDC |
11 |
|
Datasheet | POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 35A | 480 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 2.252" L (10.30mm x 57.20mm) | - | - |
|
0SPF030.HFUSE CARTRIDGE 30A 1KVDC 5AG |
100 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF008.HFUSE CARTRIDGE 8A 1KVDC 5AG |
64 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF012.TFUSE CARTRIDGE 12A 1KVDC 5AG |
11 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF008.TFUSE CARTRIDGE 8A 1KVDC 5AG |
14 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0SPF003.TFUSE CARTRIDGE 3A 1KVDC 5AG |
13 |
|
Datasheet | POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
0NLS010.TFUSE CARTRIDGE 10A 600VAC/500VDC |
10 |
|
Datasheet | POWR-GARD® NLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | K5 | CE, CSA, UL | - | 50kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
FLSR030.TXIDFUSE CARTRIDGE 30A 600VAC/300VDC |
11 |
|
Datasheet | POWR-GARD® FLSR_ID | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 30A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
KLKR010.TSFUSE CARTRIDGE 10A 600VAC/300VDC |
7 |
|
Datasheet | POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Fast Blow | Motor Protection | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FLSR010.TFUSE CARTRIDGE 10A 600VAC/300VDC |
11 |
|
Datasheet | POWR-GARD® FLSR | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 5.000" L (20.60mm x 127.00mm) | - | - |
|
0CNN080.VFUSE STRIP 80A 125VAC/48VDC RECT |
5 |
|
Datasheet | POWR-GARD® CNN | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 80A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
0KLK001.TFUSE CARTRIDGE 1A 600VAC/500VDC |
51 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 1A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK012.TFUSE CARTRIDGE 12A 600VAC/500VDC |
5 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK004.TFUSE CRTRDG 4A 600VAC/500VDC 5AG |
19 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK.100TFUSE CRTRDGE 100MA 600VAC/500VDC |
12 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 100mA | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
JLLN060.TFUSE CARTRIDGE 60A 300VAC/160VDC |
13 |
|
Datasheet | POWR-GARD® JLLN | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 60A | 300 VAC | 160 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | - | - |
|
|
0KLK005.TSFUSE CARTRIDGE 5A 600VAC/500VDC |
11 |
|
Datasheet | POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 5A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
SPXV020.LFUSE CARTRIDGE 20A 1.5KVDC |
87 |
|
Datasheet | POWR-GARD® SPXV | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1.5 kVDC | - | Solar (Photovoltaic) | - | - | CE, UR | - | 15kA | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | - | - |
