Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

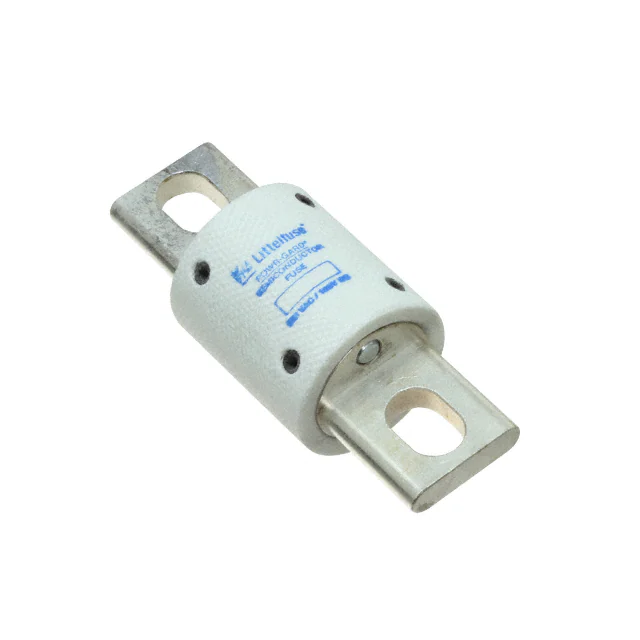

L15S1000VFUSE CARTRIDGE 1KA 150VAC/100VDC |
2 |
|
Datasheet | POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
SPFJ100.XFUSE CRTRDGE 100A 1KVDC CYLINDR |
4 |
|
Datasheet | POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
L50QS450.XFUSE CRTRDGE 450A 500VAC/VDC |
9 |
|
Datasheet | POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 4.468" L (50.80mm x 113.49mm) | - | - |
|
L70QS300.XFUSE CARTRIDGE 300A 700VAC/VDC |
5 |
|
Datasheet | POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 300A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
PSR031UL0200ZFUSE SQUARE 200A 700VAC/600VDC |
4 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
|
|
L75QS400.X750VDC HIGHSPEED SEMICONDUCTOR F |
2 |
|
Datasheet | POWR-SPEED® L75QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 400A | - | 750 VDC | Fast Blow | Electrical, Industrial | - | - | CE, cURus, UL | -55°C ~ 125°C | 50kA | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
PSR070UL0100ZFUSE SQUARE 100A 1.3KVAC/1KVDC |
15 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 100A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070UL0125ZFUSE SQUARE 125A 1.3KVAC/1KVDC |
7 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 125A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070UL0250ZFUSE SQUARE 250A 1.3KVAC/1KVDC |
5 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 250A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070UL0160ZFUSE SQUARE 160A 1.3KVAC/1KVDC |
3 |
|
Datasheet | POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 160A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) | - | - |
|
FLSR400.XFUSE CRTRDGE 400A 600VAC/300VDC |
2 |
|
Datasheet | POWR-GARD® FLSR | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 400A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 2.594" Dia x 11.626" L (65.90mm x 295.30mm) | - | - |
|

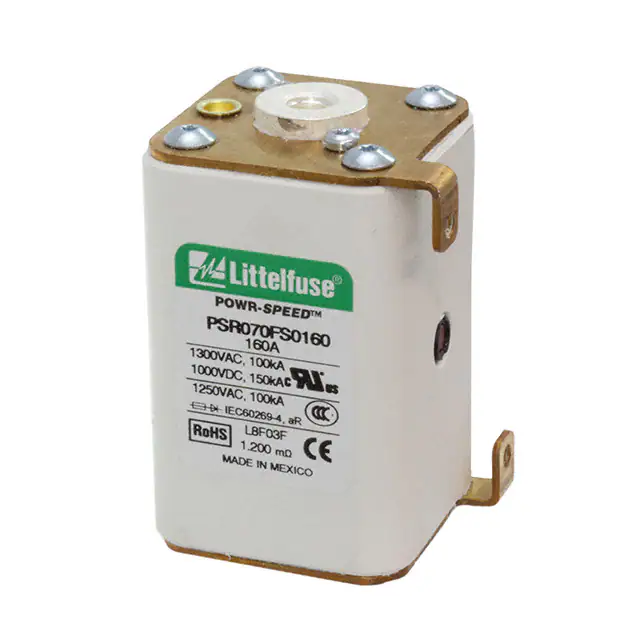

PSR070FS0160ZFUSE SQUARE 160A 1.3KVAC/1KVDC |
10 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 160A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
|
PSR070FS0200ZFUSE SQUARE 200A 1.3KVAC/1KVDC |
3 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 200A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
.jpg)
|

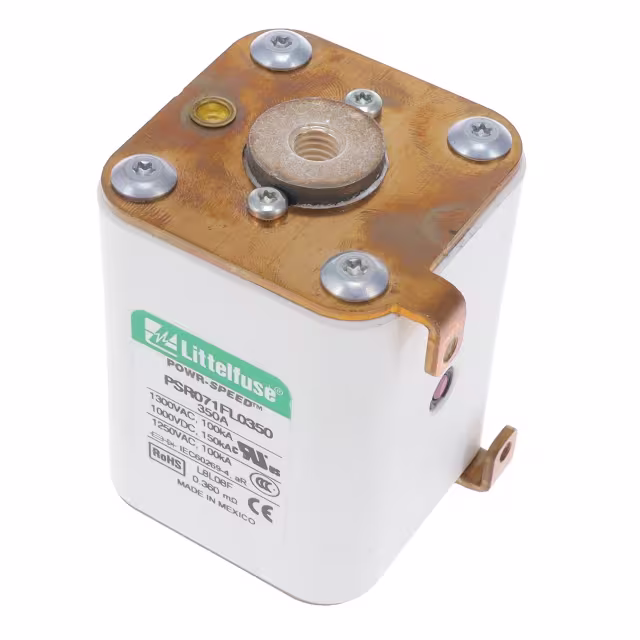

PSR071FL0350ZFUSE SQUARE 350A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR071FL0400ZFUSE SQUARE 400A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|

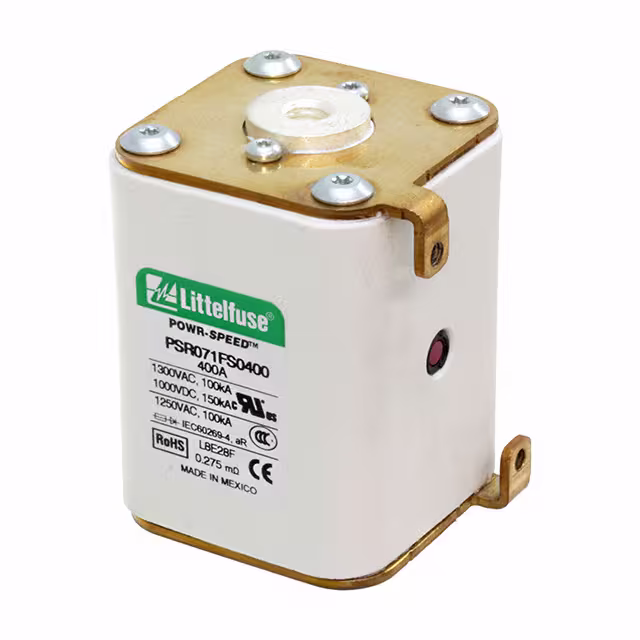

PSR071FS0400ZFUSE SQUARE 400A 1.3KVAC/1KVDC |
2 |
|
Datasheet | POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 400A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 2.028" W x 2.264" H (74.00mm x 51.50mm x 57.50mm) | - | - |
|
PSR070UL0350ZFUSES POWR-SPEED |
4 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.823" L x 1.693" W x 1.929" H (71.70mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070DL0350ZFUSES POWR-SPEED |
3 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 350A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.823" L x 1.693" W x 1.929" H (71.70mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070DL0400ZFUSES POWR-SPEED |
6 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 400A | 1.2 kVAC | 900 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.823" L x 1.693" W x 1.929" H (71.70mm x 43.00mm x 49.00mm) | - | - |
|
|
PSR070FL0400ZFUSES POWR-SPEED |
8 |
|
Datasheet | POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 400A | 1.2 kVAC | 900 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.913" L x 1.693" W x 1.929" H (74.00mm x 43.00mm x 49.00mm) | - | - |
