Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA8DA471EE500CAP ALUM 470UF 20% 500V SNAP TH |
201 |
|
Datasheet | ALA8D | Bulk | Active | 470 µF | ±20% | 500 V | 428mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.9 A @ 100 Hz | 6.3 A @ 10 kHz | 312 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC10A821DJ450CAP ALUM 820UF 20% 450V SNAP TH |
1,693 |
|
Datasheet | ALC10 | Bulk | Active | 820 µF | ±20% | 450 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.756" (70.00mm) | - | Through Hole | |
|
ALC80A473EL040CAP ALUM 47000UF 20% 40V SNAP TH |
1,381 |
|
Datasheet | ALC80 | Bulk | Active | 47000 µF | ±20% | 40 V | 16.56mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 13.06 A @ 100 Hz | 14.81 A @ 10 kHz | 14 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
ALA7DA471EE550CAP ALUM 470UF 20% 550V SNAP TH |
277 |
|
Datasheet | ALA7D | Bulk | Active | 470 µF | ±20% | 550 V | 375mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.8 A @ 100 Hz | 5.5 A @ 10 kHz | 261 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC10A561DL500CAP ALUM 560UF 20% 500V SNAP TH |
1,001 |
|
Datasheet | ALC10 | Bulk | Active | 560 µF | ±20% | 500 V | 250mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 100 Hz | 5.57 A @ 10 kHz | 182 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 3.228" (82.00mm) | - | Through Hole | |
|
|
ALC10A561DF450CAP ALUM 560UF 20% 450V SNAP TH |
873 |
|
Datasheet | ALC10 | Bulk | Active | 560 µF | ±20% | 450 V | 266mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | 4.74 A @ 10 kHz | 172 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALS31A152DF200CAP ALUM 1500UF 20% 200V SCREW |
110 |
|
Datasheet | ALS31 | Box | Active | 1500 µF | ±20% | 200 V | 90mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 9.1 A @ 10 kHz | 72 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.134" (105.00mm) | - | Chassis, Stud Mount | |
|
|
ALA7DA301DF600CAP ALUM 300UF 20% 600V SNAP TH |
274 |
|
Datasheet | ALA7D | Bulk | Active | 300 µF | ±20% | 600 V | 430mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.5 A @ 100 Hz | 5.2 A @ 10 kHz | 297 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEH169KA4330QB2CAP ALUM 3300UF 40V SCREW CHAS M |
236 |
|
Datasheet | PEH169 | Box | Active | 3300 µF | -10%, +30% | 40 V | 41mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.6 A @ 100 Hz | 17.6 A @ 10 kHz | - | 0.512" (13.00mm) | 1.441" Dia (36.60mm) | 2.028" (51.50mm) | - | Chassis Mount | |
|
53D102G050GE6CAP ALUM 1000UF 50V AXIAL TH |
159 |
|
Datasheet | 53D | Bulk | Active | 1000 µF | -10%, +75% | 50 V | 231mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.093 A @ 1 kHz | - | - | 0.760" Dia x 1.142" L (19.30mm x 29.00mm) | - | - | Through Hole | |
|
ALS70A681DE500CAP ALUM 680UF 20% 500V SCREW CH |
121 |
|
Datasheet | ALS70 | Bulk | Active | 680 µF | ±20% | 500 V | 368mOhm @ 100Hz | 11000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 100 Hz | 7.5 A @ 10 kHz | 277 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|

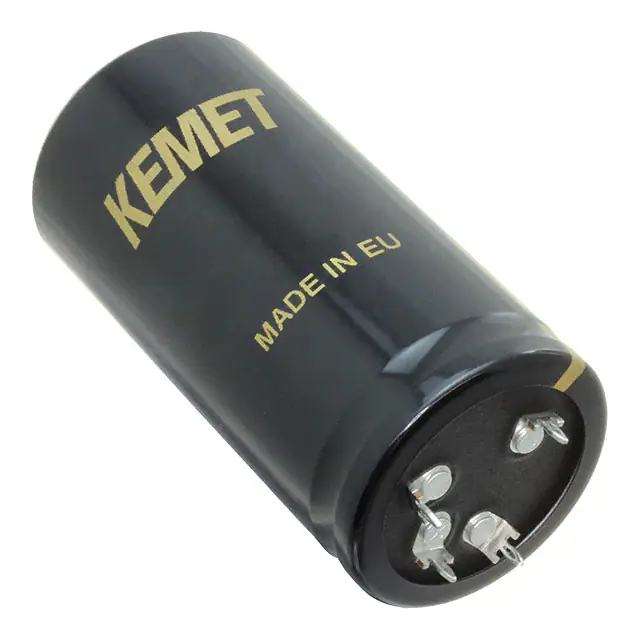

ALF20C103EC063CAP ALUM 10000UF 20% 63V PRESS |
681 |
|
Datasheet | ALF20 | Bulk | Active | 10000 µF | ±20% | 63 V | 80mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.58 A @ 100 Hz | 4.67 A @ 10 kHz | - | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
ALS40A473DF025CAP ALUM 47000UF 20% 25V SCREW |
144 |
|
Datasheet | ALS40 | Box | Active | 47000 µF | ±20% | 25 V | 9mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14 A @ 100 Hz | 14.7 A @ 10 kHz | 8 mOhms | 0.504" (12.80mm) | 1.417" Dia (36.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
ALC10C102EJ450CAP ALUM 1000UF 20% 450V SNAP TH |
527 |
|
Datasheet | ALC10 | Bulk | Active | 1000 µF | ±20% | 450 V | 142mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.42 A @ 100 Hz | 8.42 A @ 10 kHz | 93 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 2.835" (72.00mm) | - | Through Hole | |
|
|
ALS70A362KE250CAP ALUM 3600UF 20% 250V SCREW |
115 |
|
Datasheet | ALS70 | Bulk | Active | 3600 µF | ±20% | 250 V | 74mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.7 A @ 100 Hz | 13.6 A @ 10 kHz | 50 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
53D472G035HL6CAP ALUM 4700UF 35V AXIAL TH |
168 |
|
Datasheet | 53D | Bulk | Active | 4700 µF | -10%, +75% | 35 V | 54mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 3.197 A @ 1 kHz | - | - | 0.886" Dia x 2.142" L (22.50mm x 54.40mm) | - | - | Through Hole | |
|
ALC70C752FP200CAP ALUM 7500UF 20% 200V SNAP TH |
926 |
|
Datasheet | ALC70 | Bulk | Active | 7500 µF | ±20% | 200 V | 33.65mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.2 A @ 100 Hz | 15.97 A @ 10 kHz | 22 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole | |
|
|
ALS31A102KE400CAP ALUM 1000UF 20% 400V SCREW |
126 |
|
Datasheet | ALS31 | Box | Active | 1000 µF | ±20% | 400 V | 139mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.8 A @ 100 Hz | 10.3 A @ 10 kHz | 98 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.228" (82.00mm) | - | Chassis, Stud Mount | |
|
600D806G060DJ4CAP ALUM 80UF 60V AXIAL TH |
151 |
|
Datasheet | 600D | Tray | Active | 80 µF | - | 60 V | - | - | -55°C ~ 125°C | Polar | - | General Purpose | - | - | - | - | 0.375" Dia x 1.623" L (9.53mm x 41.30mm) | - | - | Through Hole | |
|
ALC80C222FP400CAP ALUM 2200UF 20% 400V SNAP TH |
1,205 |
|
Datasheet | ALC80 | Bulk | Active | 2200 µF | ±20% | 400 V | 59.59mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 7.24 A @ 100 Hz | 16.09 A @ 10 kHz | 32 mOhms | 0.886" (22.50mm) | 1.772" Dia (45.00mm) | 4.213" (107.00mm) | - | Through Hole |
