Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TVA1412-E3CAP ALUM 30UF 150V AXIAL TH |
323 |
|
Datasheet | TVA ATOM® | Bulk | Active | 30 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.250" W (11.12mm x 31.75mm) | - | - | Through Hole | |
|
|
TVAN1306.1CAP ALUM 25UF 50V AXIAL TH |
250 |
|
Datasheet | TVA ATOM® | Bulk | Active | 25 µF | - | 50 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.375" Dia x 0.812" L (9.52mm x 20.62mm) | - | - | Through Hole | |
|
|
PEG227HLQ4710QE4CAP ALUM 7100UF 25V AXIAL TH |
286 |
|
Datasheet | PEG227 | Tray | Active | 7100 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.08 A @ 100 Hz | 8.8 A @ 5 kHz | - | - | 0.717" Dia x 1.524" L (18.20mm x 38.70mm) | - | - | Through Hole | |
|
|
PEG227KKP4220ME4CAP ALUM 2200UF 20% 40V AXIAL TH |
487 |
|
Datasheet | PEG227 | Tray | Active | 2200 µF | ±20% | 40 V | 47mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.52 A @ 100 Hz | 7.2 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|

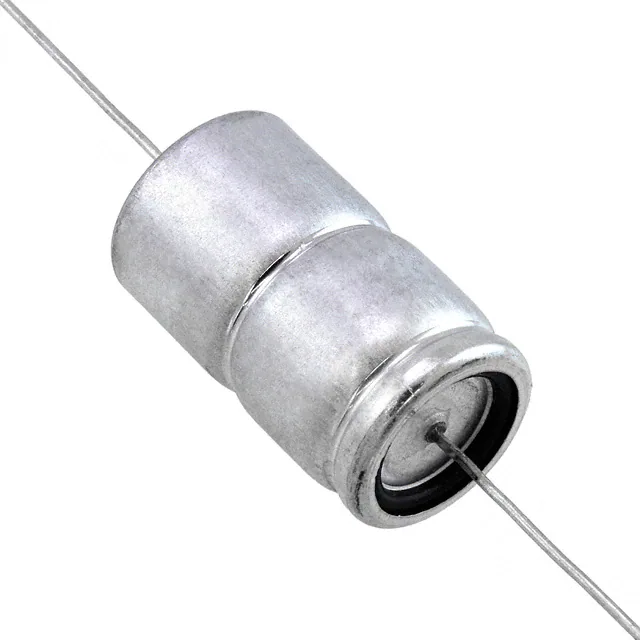

PEG226HJ4330QE4CAP ALUM 3300UF 25V AXIAL TH |
958 |
|
Datasheet | PEG226 | Bulk | Active | 3300 µF | -10%, +30% | 25 V | 34mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 9.03 A @ 100 Hz | 25.8 A @ 5 kHz | - | - | 0.795" Dia x 1.366" L (20.20mm x 34.70mm) | - | - | Through Hole | |
|
|
ALH82A750CB600CAP ALUM 75UF 20% 600V SNAP TH |
428 |
|
Datasheet | ALH82 | Tray | Active | 75 µF | ±20% | 600 V | 1.861Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 100 Hz | 2.74 A @ 10 kHz | 1.257 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
TVAN1207.1CAP ALUM 100UF 25V AXIAL TH |
155 |
|
Datasheet | TVA ATOM® | Bulk | Active | 100 µF | - | 25 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.375" Dia x 0.937" L (9.52mm x 23.80mm) | - | - | Through Hole | |
|
PEG227KML4270QE4CAP ALUM 2700UF 40V AXIAL TH |
1,102 |
|
Datasheet | PEG227 | Tray | Active | 2700 µF | -10%, +30% | 40 V | 40mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.4 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole | |
|
500D307M050FH2ACAP ALUM 300UF 20% 50V AXIAL TH |
256 |
|
Datasheet | 500D | Bulk | Active | 300 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.492" Dia x 1.496" L (12.50mm x 38.00mm) | - | - | Through Hole | |
|
|
PEG228HLQ4470QE4CAP ALUM 4700UF 25V AXIAL TH |
319 |
|
Datasheet | PEG228 | Tray | Active | 4700 µF | -10%, +30% | 25 V | 27mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.08 A @ 100 Hz | 8.8 A @ 5 kHz | - | - | 0.717" Dia x 1.524" L (18.20mm x 38.70mm) | - | - | Through Hole | |
|
TVA1346-E3CAP ALUM 100UF 100V AXIAL TH |
347 |
|
Datasheet | TVA ATOM® | Bulk | Active | 100 µF | - | 100 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
ALP22A472DD100CAP ALUM 4700UF 20% 100V SLD LUG |
750 |
|
Datasheet | ALP22 | Box | Active | 4700 µF | ±20% | 100 V | - | - | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.787" (20.00mm) | 1.575" Dia (40.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
PEG227HMS5100QE4CAP ALUM 10500UF 25V AXIAL TH |
513 |
|
Datasheet | PEG227 | Tray | Active | 10500 µF | -10%, +30% | 25 V | 18mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.465 A @ 100 Hz | 9.9 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
|
ALH82A181CF550CAP ALUM 180UF 20% 550V SNAP TH |
463 |
|
Datasheet | ALH82 | Tray | Active | 180 µF | ±20% | 550 V | 724mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 4.86 A @ 10 kHz | 497 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF80C122DD200CAP ALUM 1200UF 20% 200V PRESS |
1,471 |
|
Datasheet | ALF80 | Bulk | Active | 1200 µF | ±20% | 200 V | 181.8mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
|
ALH82A101CC550CAP ALUM 100UF 20% 550V SNAP TH |
402 |
|
Datasheet | ALH82 | Tray | Active | 100 µF | ±20% | 550 V | 1.299Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 3.38 A @ 10 kHz | 892 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALP20A472CB040CAP ALUM 4700UF 40V SOLDER LUG |
374 |
|
Datasheet | ALP20 | Box | Active | 4700 µF | -10%, +30% | 40 V | - | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.591" (15.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
.jpg)
|
ALA8DD471EE500CAP ALUM 470UF 20% 500V SNAP TH |
1,087 |
|
Datasheet | ALA8D | Bulk | Active | 470 µF | ±20% | 500 V | 428mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.9 A @ 100 Hz | 6.3 A @ 10 kHz | 312 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALA7DA131CC600CAP ALUM 130UF 20% 600V SNAP TH |
537 |
|
Datasheet | ALA7D | Bulk | Active | 130 µF | ±20% | 600 V | 980mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 3 A @ 10 kHz | 676 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEG226KL4270QE4CAP ALUM 2700UF 40V AXIAL TH |
1,036 |
|
Datasheet | PEG226 | Bulk | Active | 2700 µF | -10%, +30% | 40 V | 32mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 9.765 A @ 100 Hz | 27.9 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole |
