Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELH109M050AS5AACAP ALUM 10000UF 20% 50V SNAP TH |
271 |
|
Datasheet | ELH | Bulk | Active | 10000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 5.8 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
TVA1403-E3CAP ALUM 5UF 150V AXIAL TH |
469 |
|
Datasheet | TVA ATOM® | Bulk | Active | 5 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.312" Dia x 0.812" L (7.92mm x 20.62mm) | - | - | Through Hole | |
|

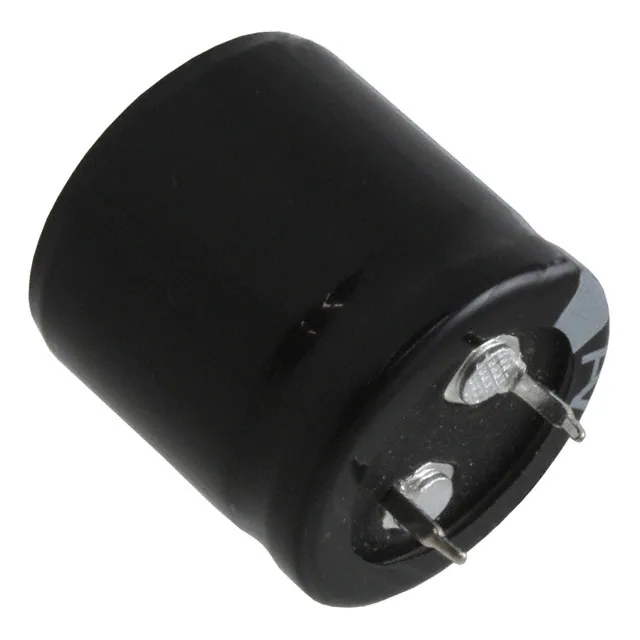

ELH108M200AR6AACAP ALUM 1000UF 20% 200V SNAP TH |
1,100 |
|
Datasheet | ELH | Bulk | Active | 1000 µF | ±20% | 200 V | 90mOhm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEG130KL4390QE4CAP ALUM 3900UF 40V AXIAL TH |
918 |
|
Datasheet | PEG130 | Bulk | Active | 3900 µF | -10%, +30% | 40 V | 33mOhm @ 100Hz | 45000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 100 Hz | 12.3 A @ 5 kHz | - | - | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | - | Through Hole | |
|
500D477M016DD2ACAP ALUM 470UF 20% 16V AXIAL TH |
448 |
|
Datasheet | 500D | Bulk | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
511D106M063AA4DCAP ALUM 10UF 20% 63V RADIAL TH |
426 |
|
Datasheet | 511D | Bulk | Active | 10 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
30D405G100BA5ACAP ALUM 4UF 100V AXIAL TH |
398 |
|
Datasheet | 30D | Bulk | Active | 4 µF | -10%, +75% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
TVA1208.5CAP ALUM 300UF 25V AXIAL TH |
384 |
|
Datasheet | TVA ATOM® | Bulk | Active | 300 µF | - | 25 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole | |
|
|
30D605G025BA5ACAP ALUM 6UF 25V AXIAL TH |
382 |
|
Datasheet | 30D | Bulk | Active | 6 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
|
30D157M050DD2ACAP ALUM 150UF 20% 50V AXIAL TH |
276 |
|
Datasheet | 30D | Bulk | Active | 150 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
30D105G050BA5CAP ALUM 1UF 50V AXIAL TH |
196 |
|
Datasheet | 30D | Bulk | Active | 1 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
PEG227KKL4150ME4CAP ALUM 1500UF 20% 40V AXIAL TH |
990 |
|
Datasheet | PEG227 | Tray | Active | 1500 µF | ±20% | 40 V | 67mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 6 A @ 5 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole | |
|
|
30D337M025DD2ACAP ALUM 330UF 20% 25V AXIAL TH |
304 |
|
Datasheet | 30D | Bulk | Active | 330 µF | ±20% | 25 V | 885mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 423 mA @ 120 Hz | 592.2 mA @ 100 kHz | - | - | 0.374" Dia x 0.945" L (9.50mm x 24.00mm) | - | - | Through Hole | |
|
|
PEG227KLP4300QE4CAP ALUM 3000UF 40V AXIAL TH |
1,258 |
|
Datasheet | PEG227 | Tray | Active | 3000 µF | -10%, +30% | 40 V | 35mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.87 A @ 100 Hz | 8.2 A @ 5 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | |
|
|
TE1506-E3CAP ALUM 8UF 150V AXIAL TH |
484 |
|
Datasheet | TE | Bulk | Active | 8 µF | -10%, +50% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.807" L (9.00mm x 20.50mm) | - | - | Through Hole | |
|
ALC70A562BB040CAP ALUM 5600UF 20% 40V SNAP TH |
136 |
|
Datasheet | ALC70 | Bulk | Active | 5600 µF | ±20% | 40 V | 130.8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.17 A @ 100 Hz | 4.09 A @ 10 kHz | 108 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
TE1409CAP ALUM 20UF 100V AXIAL TH |
470 |
|
Datasheet | TE | Bulk | Active | 20 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.260" L (9.00mm x 32.00mm) | - | - | Through Hole | |
|
500D226M150DF2CAP ALUM 22UF 20% 150V AXIAL TH |
415 |
|
Datasheet | 500D | Bulk | Active | 22 µF | ±20% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
30D477M025DF2ACAP ALUM 470UF 20% 25V AXIAL TH |
374 |
|
Datasheet | 30D | Bulk | Active | 470 µF | ±20% | 25 V | 612mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 575 mA @ 120 Hz | 805 mA @ 100 kHz | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
TVA1223CAP ALUM 200UF 35V AXIAL TH |
337 |
|
Datasheet | TVA ATOM® | Bulk | Active | 200 µF | - | 35 V | - | - | - | Polar | - | Audio | - | - | - | - | - | - | - | Through Hole |
