Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TVA1311.5-E3CAP ALUM 200UF 50V AXIAL TH |
340 |
|
Datasheet | TVA ATOM® | Bulk | Active | 200 µF | - | 50 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|
TE1308-E3CAP ALUM 75UF 50V AXIAL TH |
248 |
|
Datasheet | TE | Bulk | Active | 75 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.260" L (9.00mm x 32.00mm) | - | - | Through Hole | |
|
|
TVA1410-E3CAP ALUM 20UF 150V AXIAL TH |
246 |
|
Datasheet | TVA ATOM® | Bulk | Active | 20 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|
|
TVA1411-E3CAP ALUM 25UF 150V AXIAL TH |
229 |
|
Datasheet | TVA ATOM® | Bulk | Active | 25 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.250" L (9.53mm x 31.75mm) | - | - | Through Hole | |
|

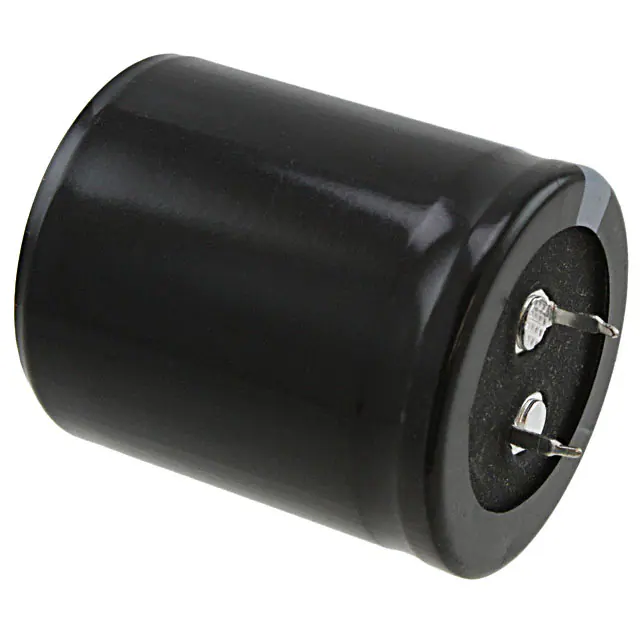

ELG108M250AT4AACAP ALUM 1000UF 20% 250V SNAP TH |
765 |
|
Datasheet | ELG | Bulk | Active | 1000 µF | ±20% | 250 V | 90mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC10A331DC400CAP ALUM 330UF 20% 400V SNAP TH |
418 |
|
Datasheet | ALC10 | Bulk | Active | 330 µF | ±20% | 400 V | 461mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.73 A @ 100 Hz | 2.92 A @ 10 kHz | 320 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70A181BD450CAP ALUM 180UF 20% 450V SNAP TH |
786 |
|
Datasheet | ALC70 | Bulk | Active | 180 µF | ±20% | 450 V | 777.7mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.22 A @ 100 Hz | 2.94 A @ 10 kHz | 437 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70A221CB400CAP ALUM 220UF 20% 400V SNAP TH |
592 |
|
Datasheet | ALC70 | Bulk | Active | 220 µF | ±20% | 400 V | 615.7mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.38 A @ 100 Hz | 3.55 A @ 10 kHz | 321 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALA7DA301DD550CAP ALUM 300UF 20% 550V SNAP TH |
155 |
|
Datasheet | ALA7D | Bulk | Active | 300 µF | ±20% | 550 V | 572mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 4.2 A @ 10 kHz | 396 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
30D207G016DF5ACAP ALUM 200UF 16V AXIAL TH |
510 |
|
Datasheet | 30D | Bulk | Active | 200 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
30D108M020EF2ACAP ALUM 1000UF 20% 20V AXIAL TH |
350 |
|
Datasheet | 30D | Bulk | Active | 1000 µF | ±20% | 20 V | 323mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 863 mA @ 120 Hz | 1.208 A @ 100 kHz | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
500D337M050EF2ACAP ALUM 330UF 20% 50V AXIAL TH |
333 |
|
Datasheet | 500D | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
ALC80A331CB250CAP ALUM 330UF 20% 250V SNAP TH |
117 |
|
Datasheet | ALC80 | Bulk | Active | 330 µF | ±20% | 250 V | 523.9mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | 3.98 A @ 10 kHz | 306 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEG227MKP4110QE4CAP ALUM 1100UF 63V AXIAL TH |
165 |
|
Datasheet | PEG227 | Tray | Active | 1100 µF | -10%, +30% | 63 V | 76mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 1.995 A @ 100 Hz | 5.7 A @ 5 kHz | - | - | 0.638" Dia x 1.366" L (16.20mm x 34.70mm) | - | - | Through Hole | |
|
|
TVAN1220CAP ALUM 20UF 30V AXIAL TH |
314 |
|
Datasheet | TVA ATOM® | Bulk | Active | 20 µF | - | 30 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.312" Dia x 0.687" L (7.92mm x 17.45mm) | - | - | Through Hole | |
|
|
PEG228KKL4110QE4CAP ALUM 1100UF 40V AXIAL TH |
1,058 |
|
Datasheet | PEG228 | Tray | Active | 1100 µF | -10%, +30% | 40 V | 79mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.065 A @ 100 Hz | 5.9 A @ 5 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole | |
|
678D107M040CD3DCAP ALUM 100UF 20% 40V RADIAL TH |
340 |
|
Datasheet | 678D | Bulk | Active | 100 µF | ±20% | 40 V | 580mOhm @ 20Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 266 mA @ 120 Hz | 380 mA @ 100 kHz | 165 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.740" (18.80mm) | - | Through Hole | |
|
678D107M050CG3DCAP ALUM 100UF 20% 50V RADIAL TH |
246 |
|
Datasheet | 678D | Bulk | Active | 100 µF | ±20% | 50 V | 520mOhm @ 20Hz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 399 mA @ 120 Hz | 570 mA @ 100 kHz | 112 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
|
ALC80A103CD040CAP ALUM 10000UF 20% 40V SNAP TH |
801 |
|
Datasheet | ALC80 | Bulk | Active | 10000 µF | ±20% | 40 V | 51.26mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.51 A @ 100 Hz | 9.23 A @ 10 kHz | 41 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
672D226H060CG5CCAP ALUM 22UF 60V RADIAL TH |
337 |
|
Datasheet | 672D | Bulk | Active | 22 µF | - | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole |
