Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALS80A124KE025CAP ALUM 120000UF 20% 25V SCREW |
120 |
|
Datasheet | ALS80 | Bulk | Active | 120000 µF | ±20% | 25 V | 18mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 15.2 A @ 100 Hz | 16.4 A @ 10 kHz | 17 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 3.307" (84.00mm) | - | Chassis Mount | |
|
ALS70A513KF063CAP ALUM 51000UF 20% 63V SCREW |
210 |
|
Datasheet | ALS70 | Bulk | Active | 51000 µF | ±20% | 63 V | 14mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 19.1 A @ 100 Hz | 21.5 A @ 10 kHz | 13 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

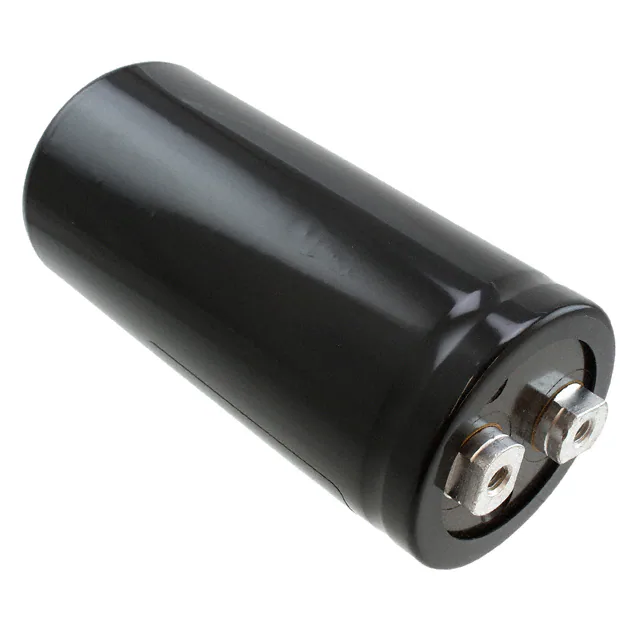

ALS30A152KF400CAP ALUM 1500UF 20% 400V SCREW |
120 |
|
Datasheet | ALS30 | Bulk | Active | 1500 µF | ±20% | 400 V | 92mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.8 A @ 100 Hz | 13.1 A @ 10 kHz | 65 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A184KF025CAP ALUM 180000UF 20% 25V SCREW |
158 |
|
Datasheet | ALS80 | Bulk | Active | 180000 µF | ±20% | 25 V | 13mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 17.6 A @ 100 Hz | 18.7 A @ 10 kHz | 13 mOhms | 0.874" (22.20mm) | 2.008" Dia (51.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71A123MF200CAP ALUM 12000UF 20% 200V SCREW |
106 |
|
Datasheet | ALS71 | Bulk | Active | 12000 µF | ±20% | 200 V | 29mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16.8 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A823MF063CAP ALUM 82000UF 20% 63V SCREW |
135 |
|
Datasheet | ALS80 | Bulk | Active | 82000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 22.7 A @ 100 Hz | 25.2 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS71A184MF040CAP ALUM 180000UF 20% 40V SCREW |
35 |
|
Datasheet | ALS71 | Bulk | Active | 180000 µF | ±20% | 40 V | 9mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 27.4 A @ 100 Hz | 29.2 A @ 10 kHz | 9 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
ALS31A473MF063CAP ALUM 47000UF 20% 63V SCREW |
214 |
|
Datasheet | ALS31 | Box | Active | 47000 µF | ±20% | 63 V | 8mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.7 A @ 100 Hz | 26.5 A @ 10 kHz | 7 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.134" (105.00mm) | - | Chassis, Stud Mount | |
|
ALS30A104MF040CAP ALUM 100000UF 20% 40V SCREW |
92 |
|
Datasheet | ALS30 | Box | Active | 100000 µF | ±20% | 40 V | 7mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 26.3 A @ 100 Hz | 26.6 A @ 10 kHz | 6 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.134" (105.00mm) | - | Chassis Mount | |
|
|
ALS70A512MF400CAP ALUM 5100UF 20% 400V SCREW |
46 |
|
Datasheet | ALS70 | Bulk | Active | 5100 µF | ±20% | 400 V | 36mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 A @ 100 Hz | 22.7 A @ 10 kHz | 22 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A332MF500CAP ALUM 3300UF 20% 500V SCREW |
65 |
|
Datasheet | ALS70 | Bulk | Active | 3300 µF | ±20% | 500 V | 77mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.3 A @ 100 Hz | 19.7 A @ 10 kHz | 58 mOhms | 1.122" (28.50mm) | 2.598" Dia (66.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS80A124NF063CAP ALUM 120000UF 20% 63V SCREW |
41 |
|
Datasheet | ALS80 | Bulk | Active | 120000 µF | ±20% | 63 V | 9mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 23.2 A @ 100 Hz | 24.6 A @ 10 kHz | 10 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|

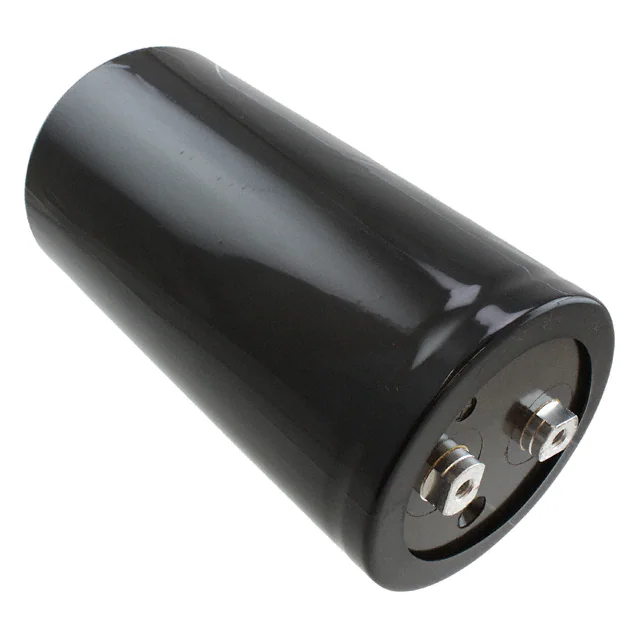

ALS31A472NP400CAP ALUM 4700UF 20% 400V SCREW |
38 |
|
Datasheet | ALS31 | Bulk | Active | 4700 µF | ±20% | 400 V | 33mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 A @ 100 Hz | 26 A @ 10 kHz | 24 mOhms | 1.252" (31.80mm) | 3.032" Dia (77.00mm) | 5.827" (148.00mm) | - | Chassis, Stud Mount | |
|
|
ALS70A472NF500CAP ALUM 4700UF 20% 500V SCREW |
90 |
|
Datasheet | ALS70 | Bulk | Active | 4700 µF | ±20% | 500 V | 59mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.5 A @ 100 Hz | 21.1 A @ 10 kHz | 45 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
PEH169MT5220QB2CAP ALUM 22000UF 63V SCREW CHAS |
81 |
|
Datasheet | PEH169 | Bulk | Active | 22000 µF | -10%, +30% | 63 V | 6mOhm @ 100Hz | 13000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 1.260" (32.00mm) | 2.953" Dia (75.00mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
PEH200OO427AMB2CAP ALUM 2700UF 20% 420V SCREW |
90 |
|
Datasheet | PEH200 | Bulk | Active | 2700 µF | ±20% | 420 V | 24mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.4 A @ 100 Hz | - | 12 mOhms | 1.122" (28.50mm) | 2.622" Dia (66.60mm) | 4.213" (107.00mm) | - | Chassis Mount | |
|
|
ALS70A274NT063CAP ALUM 270000UF 20% 63V SCREW |
36 |
|
Datasheet | ALS70 | Bulk | Active | 270000 µF | ±20% | 63 V | 7mOhm @ 100Hz | 20000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.2 A @ 100 Hz | 35.5 A @ 10 kHz | 8 mOhms | 1.252" (31.80mm) | 3.031" Dia (77.00mm) | 8.740" (222.00mm) | - | Chassis Mount | |
|
PEH200YT4220MU2CAP ALUM 2200UF 20% 450V SCREW |
96 |
|
Datasheet | PEH200 | Box | Active | 2200 µF | ±20% | 450 V | - | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.1 A @ 100 Hz | 35.6 A @ 10 kHz | - | 1.260" (32.00mm) | 3.016" Dia (76.60mm) | 4.173" (106.00mm) | - | Chassis Mount | |
|
ESK225M100AC3FACAP ALUM 2.2UF 20% 100V RADIAL |
32,545 |
|
Datasheet | ESK | Cut Tape (CT) | Active | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 45 mA @ 10 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|
EEV336M035A9GAACAP ALUM 33UF 20% 35V SMD |
15,847 |
|
Datasheet | EEV | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 240 mA @ 100 kHz | 520 mOhms | - | 0.248" Dia (6.30mm) | 0.222" (5.65mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
