Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESH108M6R3AH1AACAP ALUM 1000UF 20% 6.3V RADIAL |
7,971 |
|
Datasheet | ESH | Bulk | Active | 1000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 540.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
ESK227M050AH9KACAP ALUM 220UF 20% 50V RADIAL TH |
6,867 |
|
Datasheet | ESK | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 120 Hz | 456 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | |
|
EDT476M035S9LAACAP ALUM 47UF 20% 35V SMD |
18,449 |
|
Datasheet | EDT | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 107.143 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.256" (6.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
EDT227M010S9MAACAP ALUM 220UF 20% 10V SMD |
6,996 |
|
Datasheet | EDT | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 130 mA @ 120 Hz | 185.714 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ESH338M010AL3AACAP ALUM 3300UF 20% 10V RADIAL |
3,996 |
|
Datasheet | ESH | Bulk | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EDT687M010S9PAACAP ALUM 680UF 20% 10V SMD |
490 |
|
Datasheet | EDT | Tape & Reel (TR) | Active | 680 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 257.143 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
EXV337M025A9PAACAP ALUM 330UF 20% 25V SMD |
179 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Surface Mount | |
|
|
EXV108M6R3A9PAACAP ALUM 1000UF 20% 6.3V SMD |
590 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 6.3 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
ESW108M035AL4ARCAP ALUM 1000UF 20% 35V RADIAL |
4,092 |
|
Datasheet | ESW | Bulk | Active | 1000 µF | ±20% | 35 V | 30mOhm @ 100kHz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.338 A @ 120 Hz | 2.23 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EST108M035AL4AACAP ALUM 1000UF 20% 35V RADIAL |
3,569 |
|
Datasheet | EST | Bulk | Active | 1000 µF | ±20% | 35 V | 45mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.007 A @ 120 Hz | 2.23 A @ 100 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EDH228M025A9TAACAP ALUM 2200UF 20% 25V SMD |
2,864 |
|
Datasheet | EDH | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.125 A @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.642" L x 0.642" W (16.30mm x 16.30mm) | Surface Mount | |
|
|
EDH108M035S9TAACAP ALUM 1000UF 20% 35V SMD |
1,439 |
|
Datasheet | EDH | Tape & Reel (TR) | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 800 mA @ 120 Hz | 1 A @ 10 kHz | - | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.642" L x 0.642" W (16.30mm x 16.30mm) | Surface Mount | |
|

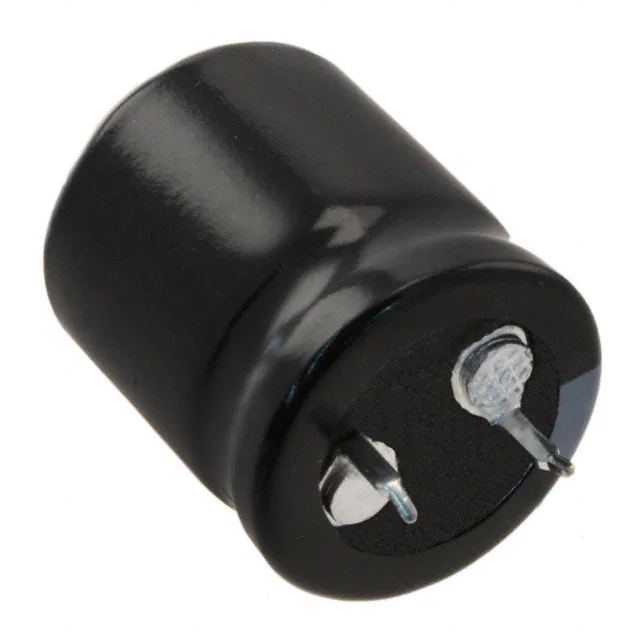

ELH476M450AQ1AACAP ALUM 47UF 20% 450V SNAP TH |
1,444 |
|
Datasheet | ELH | Bulk | Active | 47 µF | ±20% | 450 V | 1.46Ohm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 500 mA @ 120 Hz | 725 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
500D156M040BA2ACAP ALUM 15UF 20% 40V AXIAL TH |
543 |
|
Datasheet | 500D | Bulk | Active | 15 µF | ±20% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | - | - | Through Hole | |
|
TE1093-E3CAP ALUM 35UF 6V AXIAL TH |
542 |
|
Datasheet | TE | Bulk | Active | 35 µF | -10%, +75% | 6 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
|
TE1401-E3CAP ALUM 2UF 100V AXIAL TH |
515 |
|
Datasheet | TE | Bulk | Active | 2 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.248" Dia x 0.689" L (6.30mm x 17.50mm) | - | - | Through Hole | |
|
PEG227HKL4320ME4CAP ALUM 3200UF 20% 25V AXIAL TH |
1,050 |
|
Datasheet | PEG227 | Tray | Active | 3200 µF | ±20% | 25 V | 49mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 6.2 A @ 5 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole | |
|
040MS22AAMK1STDCAP ALUM 40UF 10% 220V QC CHAS M |
317 |
|
Datasheet | MS | Box | Active | 40 µF | ±10% | 220 V | - | 500 Hrs @ 60°C | -20°C ~ 60°C | - | - | Motor Start | - | - | - | - | 1.535" Dia (39.00mm) | 2.953" (75.00mm) | - | Chassis Mount | |
|
PEH227KKL4150ME4CAP ALUM 1500UF 20% 40V SLD LUG |
528 |
|
Datasheet | PEH227 | Bulk | Active | 1500 µF | ±20% | 40 V | 67mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 6.24 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole | |
|
|
PEH227HKL4320ME4CAP ALUM 3200UF 20% 25V SLD LUG |
518 |
|
Datasheet | PEH227 | Bulk | Active | 3200 µF | ±20% | 25 V | 49mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 2.17 A @ 100 Hz | 6.448 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole |
