TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP5.0SMDJ70CATVS 5KW AECQ-101 TR13 ROHS |
5,900 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|

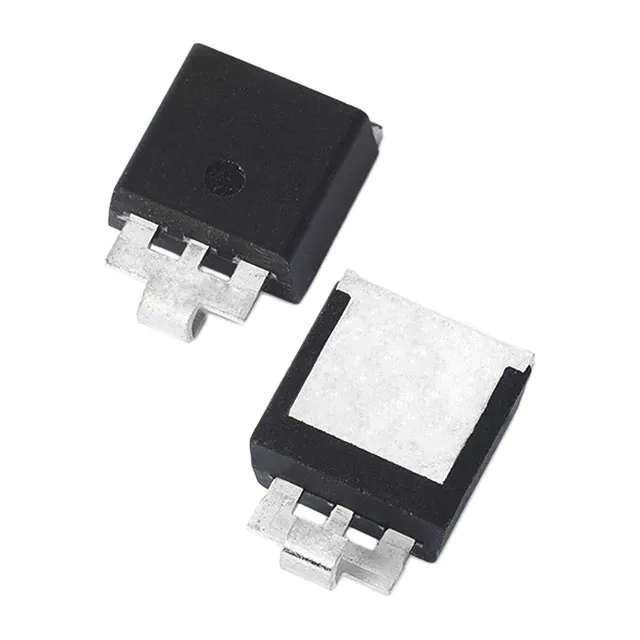

SLD8S33ATVS DIODE 33VWM 53.3VC SMTO-263 |
6,154 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 132A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SLD8S28ATVS DIODE 28VWM 45.4VC SMTO-263 |
1,953 |
|
Datasheet | Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 154A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
MMAD1103E3/TR13TVS DIODE 75VWM 14SOIC |
1,098 |
|
Datasheet | 14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
SM16LC05CE3/TR13TVS DIODE 5VWM 11VC 16SO |
1,131 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 5V | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
15KPA36CATVS DIODE 36VWM 59.8VC P600 |
4,647 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40.2V | 59.8V | 252.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA60CATVS DIODE 60VWM 97.4VC P600 |
1,145 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 67V | 97.4V | 155A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA36ATVS DIODE 36VWM 59.8VC P600 |
2,320 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40.2V | 59.8V | 252.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA33ATVS DIODE 33VWM 54.7VC P600 |
1,207 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.9V | 54.7V | 276.1A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA75ATVS DIODE 75VWM 122VC P600 |
811 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.8V | 122V | 123.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA30CATVS DIODE 30VWM 50.7VC P600 |
530 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.51V | 50.7V | 297.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA30ATVS DIODE 30VWM 50.7VC P600 |
1,473 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.51V | 50.7V | 297.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA70CATVS DIODE 70VWM 113.6VC P600 |
944 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 78.2V | 113.6V | 132.9A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA48CATVS DIODE 48VWM 77.7VC P600 |
1,546 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.6V | 77.7V | 194.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA75CATVS DIODE 75VWM 122VC P600 |
1,233 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 75V | 83.8V | 122V | 123.8A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA48ATVS DIODE 48VWM 77.7VC P600 |
908 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.6V | 77.7V | 194.3A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA60ATVS DIODE 60VWM 97.4VC P600 |
492 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 67V | 97.4V | 155A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA54ATVS DIODE 54VWM 87.7VC P600 |
1,593 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60.3V | 87.7V | 172.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA40CATVS DIODE 40VWM 65.8VC P600 |
1,704 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.7V | 65.8V | 229.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA90CATVS DIODE 90VWM 145.6VC P600 |
569 |
|
Datasheet | P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100.5V | 145.6V | 103.7A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
