TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP2555NUTGTVS DIODE 2.5VWM 19VC 10UDFN |
5,559 |
|
Datasheet | 10-UDFN Exposed Pad | SP2555, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V | - | 19V | 45A (8/20µs) | 1000W (1kW) | Yes | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (3x2) |
|
5.0SMDJ58CATVS DIODE 58VWM 93.6VC DO214AB |
19,413 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
NUP4201DR2GTVS DIODE 5VWM 25VC 8-SOIC |
3,164 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 25A (8/20µs) | 500W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
5.0SMDJ18CATVS DIODE 18VWM 29.2VC DO214AB |
7,318 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 172A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ12ATVS DIODE 12VWM 19.9VC DO214AB |
9,190 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM30T56CAYTVS DIODE 48VWM 76.6VC SMC |
3,615 |
|
Datasheet | DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.2V | 76.6V | 38A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|

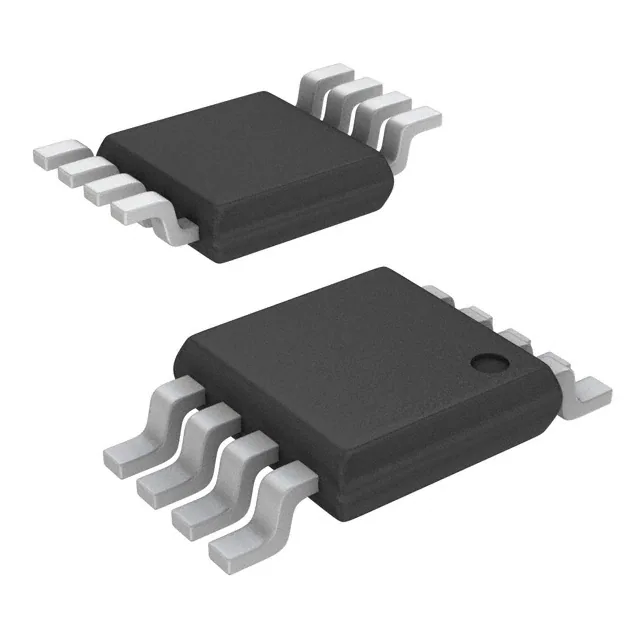

SP0506BAATGTVS DIODE 5.5VWM 8.5VC 8-MSOP |
6,403 |
|
Datasheet | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 6 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
5.0SMDJ18ATVS DIODE 18VWM 29.2VC DO214AB |
3,688 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 172A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ24ATVS DIODE 24VWM 38.9VC DO214AB |
16,393 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 129A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ150CATVS DIODE 150VWM 243VC DO214AB |
7,928 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 150V | 167V | 243V | 12.35A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDA15CE3/TR7TVS DIODE 15VWM 24VC 8-SO |
6,801 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | - | 4 | 15V | 16.7V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
5.0SMDJ13ATVS DIODE 13VWM 21.5VC DO214AB |
4,958 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ17ATVS DIODE 17VWM 27.6VC DO214AB |
2,775 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 181A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ15ATVS DIODE 15VWM 24.4VC DO214AB |
4,247 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 205A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg)
|
5.0SMDJ30ATVS DIODE 30VWM 48.4VC DO214AB |
3,369 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ36ATVS DIODE 36VWM 58.1VC DO214AB |
17,362 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ33ATVS DIODE 33VWM 53.3VC DO214AB |
9,810 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ48ATVS DIODE 48VWM 77.4VC DO214AB |
445 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 64.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ20CATVS DIODE 20VWM 32.4VC DO214AB |
4,420 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 155A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ28ATVS DIODE 28VWM 45.4VC DO214AB |
6,569 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 110A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
