TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDJ15CATVS DIODE 15VWM 24.4VC DO214AB |
13,730 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 15V | 16.7V | 24.4V | 122.95A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ30CATVS DIODE 30VWM 48.4VC DO214AB |
7,975 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 30V | 33.3V | 48.4V | 61.98A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ30ATVS DIODE 30VWM 48.4VC DO214AB |
7,597 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 61.98A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
MG2040MUTAGTVS DIODE 5VWM 10VC 18UDFN |
9,092 |
|
Datasheet | 18-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 14 | - | 5V (Max) | 5.5V | 10V | 1A (8/20µs) | - | No | HDMI | 0.35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 18-UDFN (5.5x1.5) |
|
|
SMDJ28CATVS DIODE 28VWM 45.4VC DO214AB |
9,767 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 28V | 31.1V | 45.4V | 66.08A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
AQ2555NUTGTVS DIODE 2.5VWM 19VC 10UDFN |
4,693 |
|
Datasheet | 10-UDFN Exposed Pad | AQ2555N, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 2.5V (Max) | - | 19V | 45A (8/20µs) | 1000W (1kW) | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (3x2) |
|
|
SMDJ58CATVS DIODE 58VWM 93.6VC DO214AB |
4,652 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 58V | 64.4V | 93.6V | 32.05A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ48CATVS DIODE 48VWM 77.4VC DO214AB |
28,169 |
|
- |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 48V | 53.3V | 77.4V | 38.76A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ40CATVS DIODE 40VWM 64.5VC DO214AB |
7,048 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 40V | 44.4V | 64.5V | 46.51A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ170CATVS DIODE 170VWM 275VC DO214AB |
14,696 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 170V | 189V | 275V | 10.91A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM15T33CAYTVS DIODE 28.2VWM 59VC SMC |
5,671 |
|
Datasheet | DO-214AB, SMC | SM15TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 59V | 169A (8/20µs) | 1500W (1.5kW) | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
TPD6E05U06RVZRTVS DIODE 5.5VWM 14VC 14USON |
17,275 |
|
Datasheet | 14-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 5.5V (Max) | 6V | 14V | 2.5A (8/20µs) | 40W | Yes | HDMI | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-USON (3.5x1.35) |
|
|
SM15T39CATVS DIODE 33.3VWM 69.7VC SMC |
2,976 |
|
Datasheet | DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 69.7V | 143A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMDJ51CATVS DIODE 51VWM 82.4VC DO214AB |
5,918 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 51V | 56.7V | 82.4V | 36.41A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP4065-08ATGTVS DIODE 3.3VWM 13.5VC 10MSOP |
5,423 |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | SP4065, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | - | 13.5V (Typ) | 20A (8/20µs) | 300W | Yes | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-MSOP |
|
|
SMDJ100CATVS DIODE 100VWM 162VC DO214AB |
576 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 100V | 111V | 162V | 18.52A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
LC03-6R2GTVS DIODE 5VWM 20VC 8-SOIC |
1,475 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V | 6.8V | 20V | 100A (8/20µs) | 2000W (2kW) | No | General Purpose | 16pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SRDA05-4R2GTVS DIODE 5VWM 12VC 8-SOIC |
24,994 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 12V | 10A (8/20µs) | 500W | Yes | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SMDA24E3/TR7TVS DIODE 24VWM 43VC 8-SO |
2,858 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|

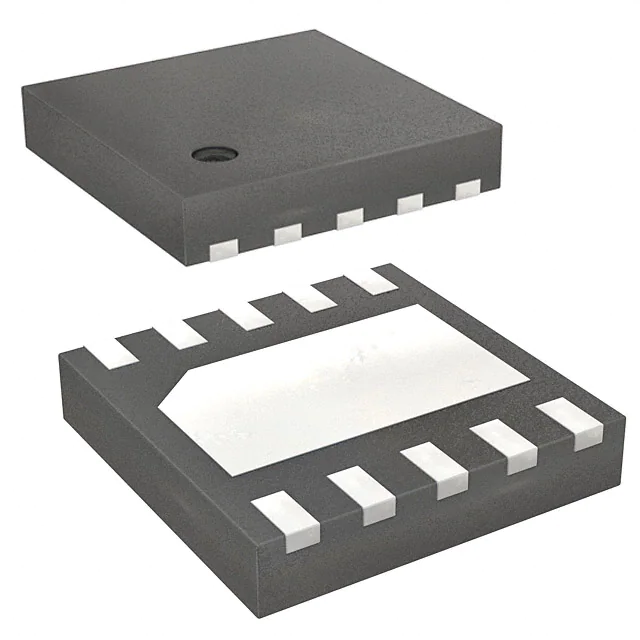

SP3304NUTGTVS DIODE 3.3VWM 11.5VC 10UDFN |
12,402 |
|
Datasheet | 10-UFDFN Exposed Pad | SP3304N, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 11.5V | 20A (8/20µs) | 300W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.6x2.6) |
