TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

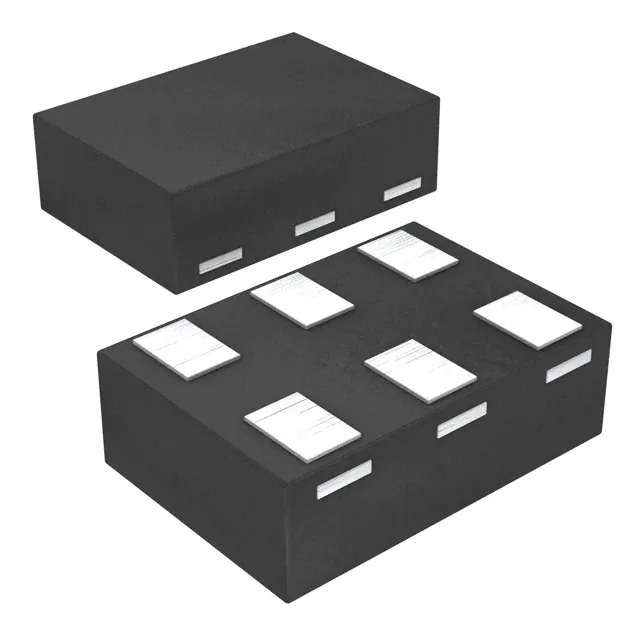

TPD4S012DRYRTVS DIODE 5.5VWM 6SON |
40,252 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | - | 3A (8/20µs) | 60W | Yes | USB | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SON (1.45x1) |
|
SMCJ18CA-13-FTVS DIODE 18VWM 29.2VC SMC |
36,198 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 51.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMA6J33CA-TRTVS DIODE 33VWM 60.8VC SMA |
7,290 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 60.8V | 57A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SM24CANB-02HTGTVS DIODE 24VWM 50VC SOT23-3 |
25,919 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | SM24CANB, SPA® | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.7V | 50V | 10A (8/20µs) | 500W | No | CAN | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SP3002-04JTGTVS DIODE 6VWM 13VC SC70-6 |
1,736 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | SP3002, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 13V | 4.5A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
SP0503BAHTGTVS DIODE 5.5VWM 8.5VC SOT143-4 |
21,787 |
|
Datasheet | TO-253-4, TO-253AA | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 3 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-143-4 |
|
NUP2202W1T2GTVS DIODE 5VWM 20VC SC88/SC70-6 |
14,824 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 20V | 8A (8/20µs) | 500W | Yes | General Purpose | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
SP4203-01FTG-CTVS DIODE 3.3VWM 20VC SOD323 |
6,124 |
|
Datasheet | SC-76, SOD-323 | SP4203, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.5V | 20V | 10A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
TPD4E02B04QDQARQ1TVS DIODE 3.6VWM 8.8VC 10USON |
16,174 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 5.5V | 8.8V | 2A (8/20µs) | 17W | No | - | 0.25pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-USON (2.5x1) |
|
|
SM712-02HTGTVS DIODE 12V 31V SOT23-3 |
86,335 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | * | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max), 7V (Max) | 13.3V, 7.5V | 31V, 19V | 19A (8/20µs) | 600W | No | - | 75pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SESD7L5.0DT5GTVS DIODE 5VWM 10.4VC SOT723 |
14,535 |
|
Datasheet | SOT-723 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.4V | 10.4V | - | - | No | USB | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-723 |
|
AQ36CANA-02HTG36V 7A 30KV SOT23 BI-DIR TVS |
7,956 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | SPA® | Tape & Reel (TR) | Active | Zener | - | 2 | 36V (Max) | 40V | 67V (Typ) | 8A (8/20µs) | 500W | No | - | 23pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMCJ250CATVS DIODE 250VWM 405VC DO214AB |
3,750 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 250V | 279V | 405V | 3.7A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDJ43ATVS DIODE 43VWM 69.4VC DO214AB |
14,132 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 43.23A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPD1E01B04DPLTTVS DIODE 3.6VWM 15VC 2X2SON |
12,664 |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.6V (Max) | 6.4V (Typ) | 15V (Typ) | 2.5A (8/20µs) | 27W | No | HDMI | 0.18pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-X2SON (0.6x0.3) |
|
TPD4E1B06DCKRTVS DIODE 5.5VWM 14.5VC SC70-6 |
6,583 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Zener | - | 4 | 5.5V (Max) | 7V | 14.5V (Typ) | 3A (8/20µs) | 45W | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
SMCJ45CA-13-FTVS DIODE 45VWM 72.7VC SMC |
18,282 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5KE400CATVS D5.4X7.5 342V 1500W BIDIR |
5,224 |
|
- |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 342V | 380V | 548V | 2.8A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SMLVT3V3TVS DIODE 3.3VWM 10.3VC SMB |
18,892 |
|
Datasheet | DO-214AA, SMB | SMLV, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 4.1V | 10.3V | 200A (8/20µs) | 600W | No | General Purpose | 5200pF @ 1MHz | -25°C ~ 175°C (TJ) | - | - | Surface Mount | SMB |
|
USB6B1RLTVS DIODE 5.25VWM 8-SO |
10,628 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | USB | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | - | - | 500W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
