TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCJ60CATVS DIODE 60VWM 96.8VC DO214AB |
3,456 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 60V | 66.7V | 96.8V | 15.5A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMAT70A-13-FTVS DIODE 70VWM 100VC SMA |
92,313 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 100V | 3.5A | 400W | No | General Purpose | 140pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SP1004U-ULC-04UTGTVS DIODE 9.2VC 1004/10DFN |
21,726 |
|
Datasheet | 10-XFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | - | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 1004/10DFN (2.5x1.0) |
;;2.jpg)
|
1.5SMC480ATVS SMC 408V 1500W UNIDIR |
13,400 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 408V | 456V | 658V | 2.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

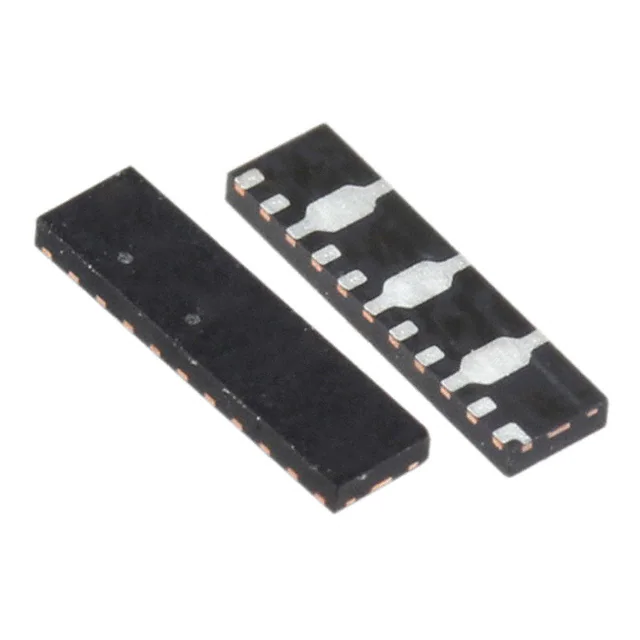

ESD8008MUTAGTVS DIODE 3.3VWM 8.1VC 14UDFN |
11,573 |
|
Datasheet | 14-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 5.5V | 8.1V (Typ) | 16A | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 14-UDFN (5.5x1.5) |
|
AQ4020-01FTGTVS DIODE 3.3VWM 24.5VC SOD323 |
7,154 |
|
Datasheet | SC-76, SOD-323 | AQ4020, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 24.5V (Typ) | 30A (8/20µs) | 735W | No | CAN, Ethernet, USB | 2.5pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMAJ40CATVS DIODE 40VWM 64.5VC DO214AC |
210,911 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SP4020-01FTGTVS DIODE 3.3VWM 21.8VC SOD323 |
46,460 |
|
Datasheet | SC-76, SOD-323 | SP4020, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 3.3V (Max) | 3.5V | 21.8V (Typ) | 30A (8/20µs) | 750W | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SMAJ45CATVS DIODE 45VWM 72.7VC DO214AC |
14,870 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 5.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ36CA-13-FTVS DIODE 36VWM 58.1VC SMC |
8,821 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 25.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TPD4E02B04DQARTVS DIODE 3.6VWM 8.8VC 10USON |
23,498 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 5.5V | 8.8V (Typ) | 5A (8/20µs) | 17W | No | HDMI | 0.27pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|
SZTVS4201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
23,294 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V | 25A (8/20µs) | 500W | Yes | - | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
SMAJ250CATVS DIODE 250VWM 405VC DO214AC |
13,533 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 250V | 279V | 405V | 1A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
AXGD10603NRTVS DIODE 40VC 0603 |
26,019 |
|
Datasheet | 0603 (1608 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | 40V (Typ) | - | - | No | - | 0.09pF @ 250MHz | -65°C ~ 125°C | Automotive | AEC-Q200 | Surface Mount | 0603 |
|
PGB1010603MRHFTVS DIODE 24VWM 150VC 0603 |
9,997 |
|
Datasheet | 0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
ESD9R3.3ST5GTVS DIODE 3.3VWM 7.8VC SOD923 |
95,299 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.8V | 7.8V | 1A (8/20µs) | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SESD0402X1BN-0010-098TVS DIODE 7VWM 10VC 0402 |
29,287 |
|
Datasheet | 2-XDFN | SESD, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 9.8V (Typ) | 10V (Typ) | 2A (8/20µs) | - | No | HDMI | 0.1pF @ 3GHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402 |
|
SMCJ200CATVS DIODE 200VWM 324VC DO214AB |
1,748 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 200V | 224V | 324V | 4.6A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP0502BAHTGTVS DIODE 5.5VWM 8.5VC SOT23-3 |
153,527 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-3 |
|
SP3010-04UTGTVS DIODE 6VWM 12.3VC 10UDFN |
120,649 |
|
Datasheet | 10-UFDFN | SP3010, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 6V (Max) | - | 12.3V (Typ) | 3A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-µDFN (2.5x1.0) |
