TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGD10402KRTVS DIODE 24VWM 40VC 0402 |
36,740 |
|
Datasheet | 0402 (1005 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 250V | 40V | - | - | No | General Purpose | - | - | - | - | Surface Mount | 0402 |
|
SM6T39CATVS DIODE 33.3VWM 53.9VC SMB |
11,756 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 11.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
TPSMA6L48ATVS SMAF 48V 600W UNIDIR |
29,010 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.8A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
TPD2E2U06DRLRTVS DIODE 5.5VWM 12.4VC SOT5 |
22,614 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6.5V | 12.4V (Typ) | 5.5A (8/20µs) | 85W | Yes | Ethernet | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-5 |
|
ESD224DQARTVS DIODE 3.6VWM 14VC 10USON |
12,356 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | - | 4 | 3.6V (Max) | 7.9V | 14V | 2A (8/20µs) | 17W | No | Ethernet, HDMI, USB | 0.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-USON (2.5x1) |
|
ESDS314DBVRTVS DIODE 3.6VWM 6.5VC SOT23-5 |
2,532 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.6V (Max) | 4.5V | 6.5V (Typ) | 25A (8/20µs) | 170W | No | General Purpose | 4.5pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
SP1003-01DTGTVS DIODE 5VWM 12VC SOD723 |
44,498 |
|
Datasheet | SOD-723 | SP1003, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V (Typ) | 7A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-723 |
|
SP4322-01ETGTVS DIODE 5VWM 8VC SOD882 |
28,891 |
|
Datasheet | SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 9V (Typ) | 8V (Typ) | 11A (8/20µs) | - | No | - | 0.4pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
AQ05C-01FTGTVS DIODE 5VWM 14.5VC SOD323 |
28,710 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | - | 14.5V | 30A (8/20µs) | 450W | No | CAN | 200pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMS05T1GTVS DIODE 5VWM 15.5VC SC74 |
20,803 |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6V | 15.5V | 23A (8/20µs) | 350W | No | General Purpose | 250pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
1.5KE33CATVS DIODE 28.2VWM 45.7VC DO201 |
13,429 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 33.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|

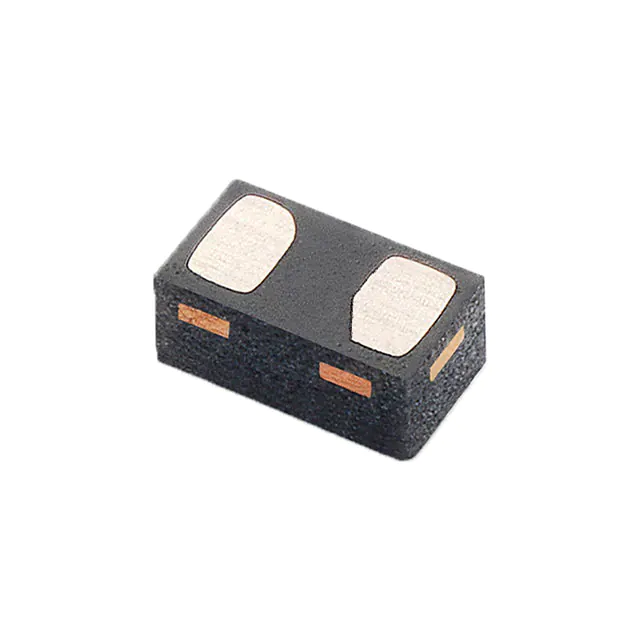

SP3213-01UTGTVS DIODE 5VWM 18VC 0201/2DFN |
6,846 |
|
Datasheet | 0201 (0603 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.2V | 18V | 2A (8/20µs) | - | No | General Purpose | 0.09pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | 0201/DFN0603 |
|
PGB1010603MRTVS DIODE 24VWM 150VC 0603 |
572,675 |
|
Datasheet | 0603 (1608 Metric) | PulseGuard® PGB | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 150V (Typ) | - | - | No | General Purpose | - | -65°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
SMCJ33ATVS DIODE 33VWM 53.3VC DO214AB |
85,086 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
TPD2E001DRLRTVS DIODE 5.5VWM SOT5 |
84,999 |
|
Datasheet | SOT-553 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 11V | - | - | - | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5 |
|
SMA6J24A-TRTVS DIODE 24VWM 44.3VC SMA |
51,202 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 44.3V | 80A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMCJ150CATVS DIODE 150VWM 243VC DO214AB |
7,881 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 2 | 150V | 167V | 243V | 6.2A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
P6KE440CATVS DIODE 376VWM 602VC DO204AC |
17,782 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 376V | 418V | 602V | 1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMCJ28CATVS DIODE 28VWM 45.4VC DO214AB |
17,203 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 33.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
HSP062-2M6TVS DIODE 3VWM 18VC 6UQFN |
14,351 |
|
Datasheet | 6-UFDFN | HSP | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3V | 6V | 18V (Typ) | 3A (8/20µs) | - | Yes | Ethernet, HDMI | 0.6pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 6-uQFN (1.45x1) |
