TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ6.0A-TRTVS DIODE 6VWM 10.3VC SMB |
108,096 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.7V | 10.3V | 61A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ10ATVS DIODE 10VWM 17VC DO214AC |
57,906 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 23.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD122DMYRTVS DIODE 3.6VWM 8.4VC 3X2SON |
32,959 |
|
Datasheet | 3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.6V (Max) | 5.1V | 8.4V (Typ) | 2.5A (8/20µs) | 20W | No | HDMI, USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 3-X2SON (1.3x0.6) |
|
|
SMBJ33A-TRTVS DIODE 33VWM 53.3VC SMB |
24,409 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
ESD7004MUTAGTVS DIODE 5VWM 10VC 10UDFN |
16,650 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 5.5V | 10V | 1A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.5x1) |
|

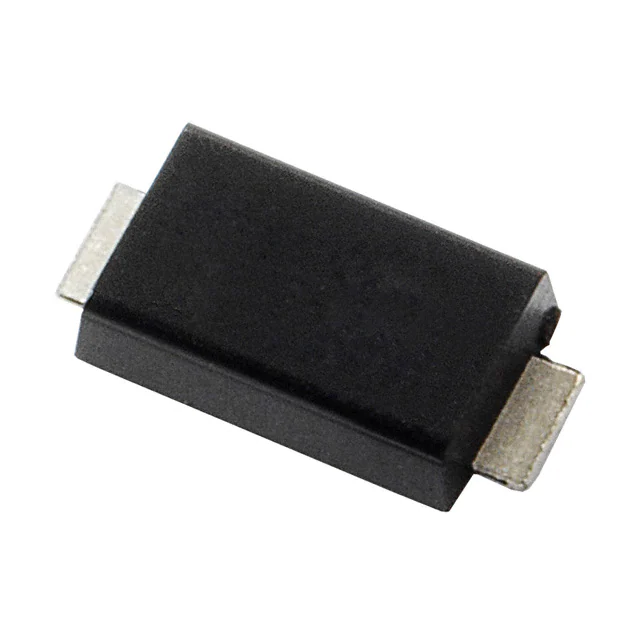

TPSMA6L30ATVS SMAF 30V 600W UNIDIR |
12,418 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
;;2.jpg)
|
SMCJ58ATVS DIODE 58VWM 93.6VC DO214AB |
789,837 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 16.1A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5SMC36ATVS DIODE 30.8VWM 49.9VC DO214AB |
149,837 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
ESD9L3.3ST5GTVS DIODE 3.3VWM 9VC SOD923 |
111,245 |
|
Datasheet | SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 4.8V | 9V | - | - | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-923 |
|
SMAJ30CA-TRTVS DIODE 30VWM 64.3VC SMA |
70,124 |
|
Datasheet | DO-214AC, SMA | SMAJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 64.3V | 36A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PESD0402-240TVS DIODE 24VWM 40VC 0402 |
60,127 |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 40V (Typ) | - | - | - | Ethernet, HDMI | 0.25pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 0402 |
|
TPD2EUSB30ADRTRTVS DIODE 3.6VWM 8VC SOT9X3 |
37,424 |
|
Datasheet | 3-SMD, SOT-23-3 Variant | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.6V (Max) | 4.5V | 8V | 1A (8/20µs) | 45W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-3 |
|

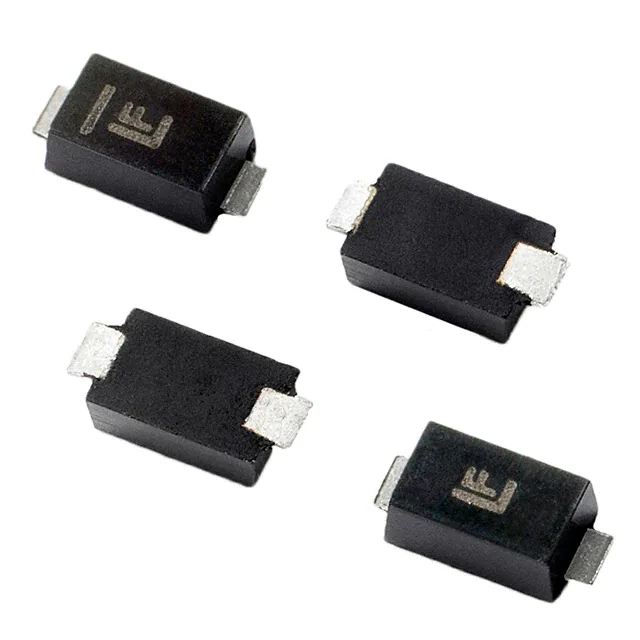

SMF4L36CATVS DIODE 36VWM 58.1VC SOD123FL |
27,689 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 6.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF4L33CATVS DIODE 33VWM 53.3VC SOD123FL |
24,383 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF4L30CATVS DIODE 30VWM 48.4VC SOD123FL |
20,209 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMCJ36ATVS DIODE 36VWM 58.1VC DO214AB |
13,784 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 25.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP1003-01ETGTVS DIODE 5VWM 12VC SOD882 |
6,439 |
|
Datasheet | SOD-882 | SP1003, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V (Typ) | 7A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|

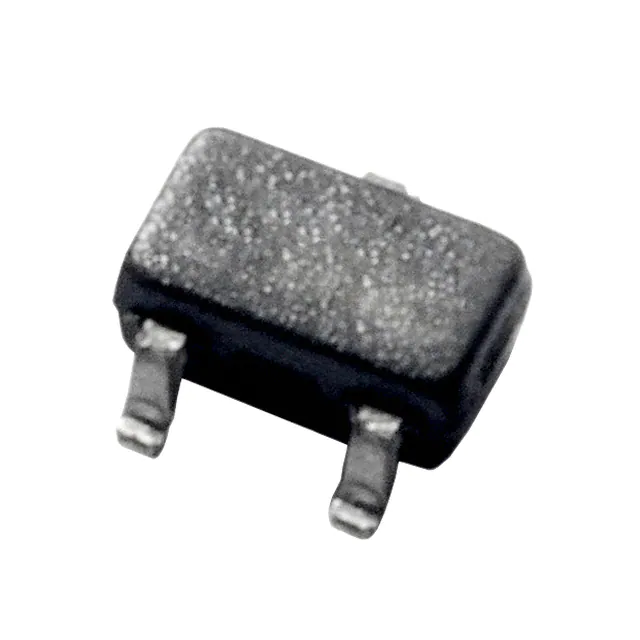

SP1001-02JTGTVS DIODE 5.5VWM 13VC SC70-3 |
279,673 |
|
Datasheet | SC-70, SOT-323 | SP1001, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5.5V (Max) | 7V | 13V | 2A (8/20µs) | - | No | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70-3 |
|

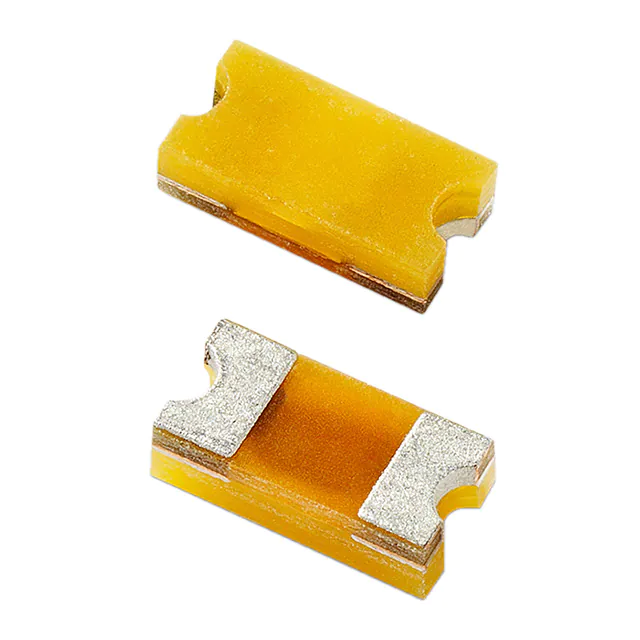

AXGD10402KRTVS DIODE 40VC 0402 |
53,968 |
|
Datasheet | 0402 (1005 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | - | - | 40V (Typ) | - | - | No | - | 0.04pF @ 250MHz | -65°C ~ 125°C | Automotive | AEC-Q200 | Surface Mount | 0402 |
|
SD36C-01FTGTVS DIODE 36VWM 60VC SOD323 |
51,970 |
|
Datasheet | SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | - | 60V | 5A (8/20µs) | 450W | No | - | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
