TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
USBLC6-2P6TVS DIODE 5.25VWM 17VC SOT666 |
48,877 |
|
Datasheet | SOT-563, SOT-666 | USB | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | 17V | 5A (8/20µs) | - | Yes | USB | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-666 |
|
NUP2301MW6T1GTVS DIODE 70VWM SC88/SC70-6 |
40,669 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | - | 2 | 70V | 70V | - | - | - | No | General Purpose | 1.6pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|
SMBJ24CAQ-13-FTVS DIODE 24VWM 38.9VC SMB |
35,092 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
ESDA7P120-1U1MTVS DIODE 5.5VWM 11.5VC 1610 |
5,076 |
|
Datasheet | 2-UDFN | ESDA | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V | 6.4V | 11.5V | 120A (8/20µs) | 1400W (1.4kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1610 |
|
SMF4L28CATVS DIODE 28VWM 45.4VC SOD123F |
3,244 |
|
Datasheet | SOD-123F | SMF4L | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 8.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
1KSMB36CATVS DIODE 30.8VWM 49.9VC DO214AA |
62,033 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 20A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SD12C-01FTGTVS DIODE 12VWM 23VC SOD323 |
33,758 |
|
Datasheet | SC-76, SOD-323 | SD-C, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | - | 23V | 17A (8/20µs) | 450W | No | - | 100pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
;;2.jpg)
|
P6KE30CATVS DO15 25.6V 600W BIDIR |
16,985 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 2 | 25.6V | 28.5V | 41.4V | 14.4A | 600W | Yes | General Purpose | 537.5pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
SM6T33ATVS DIODE 28.2VWM 45.7VC SMB |
10,402 |
|
Datasheet | DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

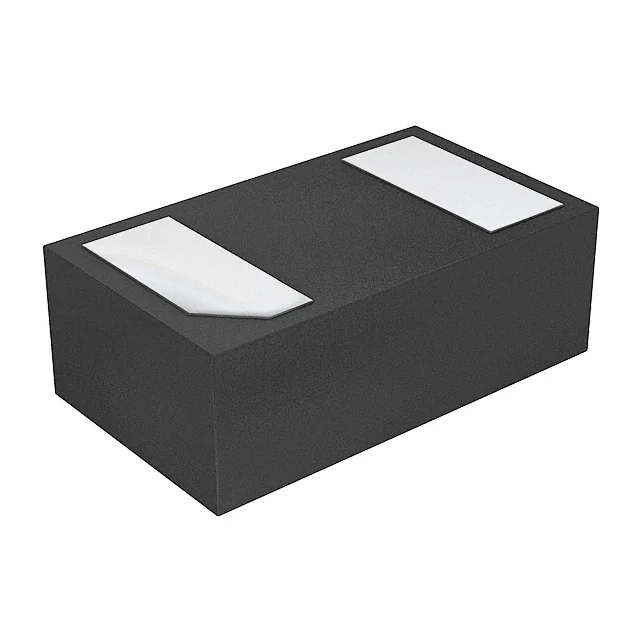

SP0402B-ELC-01ETGTVS DIODE 7VWM 14VC 0402/2DFN |
263,431 |
|
Datasheet | 0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 7V | 9.6V (Typ) | 14V (Typ) | 2.5A (8/20µs) | - | No | General Purpose | 0.15pF @ 1MHz | -30°C ~ 85°C (TA) | - | - | Surface Mount | 0402/2DFN (1x0.60) |
|
|
SP0402U-ULC-01ETGTVS DIODE 5VWM 9.2VC 0402/2DFN |
49,230 |
|
Datasheet | 0402 (1006 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0402/2DFN (1x0.60) |
|
USBLC6-2SC6YTVS DIODE 5.25VWM 17VC SOT23-6 |
38,766 |
|
Datasheet | SOT-23-6 | USBY | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | 17V | 5A (8/20µs) | - | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-6 |
|
AQ36C-01FTGTVS DIODE 36VWM 62VC SOD323 |
16,575 |
|
Datasheet | SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 36V (Max) | - | 62V | 5A (8/20µs) | 450W | No | CAN | 30pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|

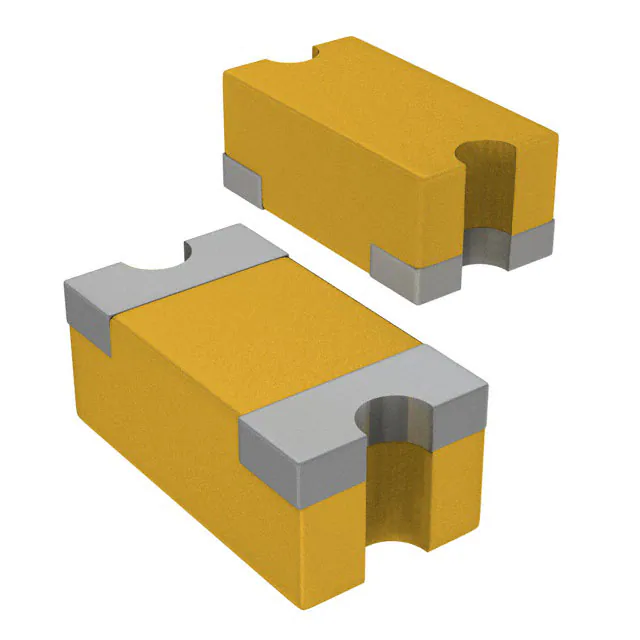

XGD10603MRTVS DIODE 32VWM 40VC 0603 |
10,305 |
|
Datasheet | 0603 (1608 Metric), Concave | XTREME-GUARD™ | Tape & Reel (TR) | Active | Zener | - | 1 | 32V (Max) | - | 40V | - | - | No | General Purpose | - | - | - | - | Surface Mount | 0603 |
|
TPD4E001DRLRTVS DIODE 5.5VWM 6SOT |
8,007 |
|
Datasheet | SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 11V | - | - | 100W | Yes | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-5X3 |
|
PESD0402-140TVS DIODE 14VWM 40VC 0402 |
186,668 |
|
Datasheet | 0402 (1005 Metric) | - | Tape & Reel (TR) | Active | - | - | 1 | 14V (Max) | - | 40V | - | - | No | Ethernet, HDMI | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0402 |
|
|
PESD0603-240TVS DIODE 24VWM 45VC 0603 |
126,731 |
|
Datasheet | 0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | - | 45V | - | - | No | Ethernet, HDMI | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0603 (1608 Metric) |
|
SMF3.3TVS DIODE 3.3VWM 6.8VC SOD123FL |
58,491 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V | 3.4V | 6.8V | 30A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
NSQA6V8AW5T2GTVS DIODE 5VWM 13VC SC88A |
31,470 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 5V | 6.4V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
DALC208SC6TVS DIODE 5VWM SOT23-6 |
28,699 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | - | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | SOT-23-6 |
