TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5.0SMDJ13CATVS DIODE 13VWM 21.5VC DO214AB |
9,416 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 233A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ36CATVS DIODE 36VWM 58.1VC DO214AB |
2,136 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
5.0SMDJ15CATVS DIODE 15VWM 24.4VC DO214AB |
6,479 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 205A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

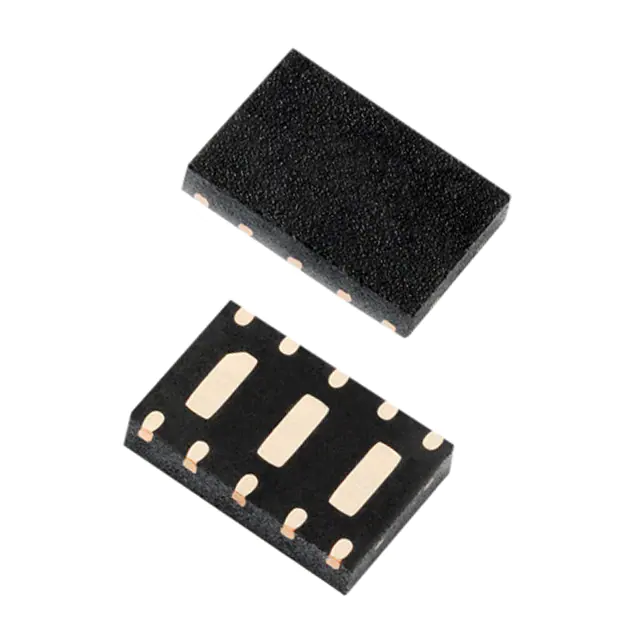

SP3374NUTGTVS DIODE 3.3VWM 18VC 10UDFN |
5,998 |
|
Datasheet | 10-UDFN Exposed Pad | SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 18V | 25A (8/20µs) | 1000W (1kW) | Yes | Ethernet | 3.5pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (3x2) |
|
5KP33CATVS P600 33V 5000W BIDIR |
24,968 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 95.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
5.0SMDJ45ATVS DIODE 45VWM 72.7VC DO214AB |
369 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SLVU2.8-4BTGTVS DIODE 2.8VWM 15VC 8-SOIC |
4,310 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SLVU2.8-4, SPA® | Tape & Reel (TR) | Active | Zener | - | 4 | 2.8V (Max) | 3V | 15V | 40A (8/20µs) | 600W | No | General Purpose | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
5.0SMDJ12CATVS DIODE 12VWM 19.9VC DO214AB |
33,396 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SP03-6BTGTVS DIODE 6VWM 20VC 8-SOIC |
8,352 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SP03-6, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 6V (Max) | 6.8V | 20V | 150A (8/20µs) | 2800W (2.8kW) | Yes | Ethernet | 16pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
;;2.jpg)
|
5.0SMDJ64ATVS DIODE 64VWM 103VC DO214AB |
6,461 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.1V | 103V | 48.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ90ATVS DIODE 90VWM 146VC DO214AB |
2,585 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 34.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ30CATVS DIODE 30VWM 48.4VC DO214AB |
45,103 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
USBQNM50415CE3/TR7TVS DIODE 15VWM 32VC QFN143 |
10,371 |
|
Datasheet | 4-VDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.7V | 32V | 5A (8/20µs) | 500W | No | Ethernet | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | QFN-143 |
|
|
SP2502LBTGTVS DIODE 3.3VWM 20VC 8-SOIC |
3,681 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | SP2502L, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | 3.3V | 20V | 75A (8/20µs) | 2100W (2.1kW) | Yes | Ethernet | 5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
5.0SMDJ51ATVS DIODE 51VWM 82.4VC DO214AB |
14,052 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 60.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ85CATVS DIODE 85VWM 137VC DO214AB |
5,667 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ64CATVS DIODE 64VWM 103VC DO214AB |
9,803 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 48.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ26CATVS DIODE 26VWM 42.1VC DO214AB |
3,057 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28.9V | 42.1V | 119A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ33CATVS DIODE 33VWM 53.3VC DO214AB |
3,655 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ40CATVS DIODE 40VWM 64.5VC DO214AB |
8,407 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 77.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
