Protection Relays & Systems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Voltage - Supply | Trip Range | Delay Time | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PGR-3100GRND FAULT INDICAT SYST LED 30V |
9 |
|
Datasheet | PGR-3100 | Bulk | Active | Ground Fault | 600VAC | - | - | Panel Mount | Screw Terminal | Test Button | - |
|
EL3100-00GRND FAULT INDICATE SYST 3PHASE |
18 |
|
Datasheet | EL3100 | Bulk | Active | Ground Fault | 208 ~ 600VAC | - | - | Chassis Mount, DIN Rail | Screw Terminal | - | - |
|
MP8000MOTOR OVERLOAD PROTECTION 8000 |
7 |
|
Datasheet | MP8000 | Bulk | Active | - | 90 ~ 690VAC | 0.5 ~ 1000A | - | Chassis Mount | Screw Terminal | Automatic Reset, Manual Reset | -40°C ~ 70°C |
|
777-P23-PHASE OLR/200-480V/2-800FLA+ |
6 |
|
Datasheet | 777 | Bulk | Active | Multiple | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
777-LR-P23-PHASE OVERLOAD RELAY/200-480 |
5 |
|
Datasheet | 777 | Bulk | Active | - | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | - | - | -20°C ~ 70°C |
|
SE-701-0UMONITOR GRND FALT RELAY 120/240V |
17 |
|
Datasheet | SE-701 | Bulk | Active | Ground Fault | 120/240VAC/DC | - | 0.5 ~ 2.5s | Chassis Mount, DIN Rail | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | -40°C ~ 60°C |
|
PGR-4700-24SENS GRND FAULT RELAY 24VDC SUP |
6 |
|
Datasheet | POWR-GARD® | Bulk | Active | Ground Fault | 24VDC | 0.01 ~ 3A | 0 ~ 1.5s | DIN Rail | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | - |
|
AF0100-10ARC-FLASH RELAY 24VDC SUPPLY |
3 |
|
Datasheet | AF0100 | Bulk | Active | Arc-Flash | 24 ~ 48VDC | 10 ~ 25 klux | - | Chassis Mount, DIN Rail | Screw Terminal | - | -40°C ~ 70°C |
|
SE-601-0DDC GROUND FAULT RELAY 9-36 VDC |
2 |
|
Datasheet | SE-601 | Bulk | Active | Ground Fault, Overcurrent | 12/24VDC | 0.1 ~ 0.2A | 0.5 ~ 2.5s | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset, Test Button | -40°C ~ 60°C |
|
SE-105GROUND FAULT MONITOR |
16 |
|
Datasheet | SE-105 | Bulk | Active | Ground Fault | 120VAC | 0.5 ~ 5A | 0.1 ~ 1s | Chassis Mount | Screw Terminal | Automatic Reset, Manual Reset | - |
|

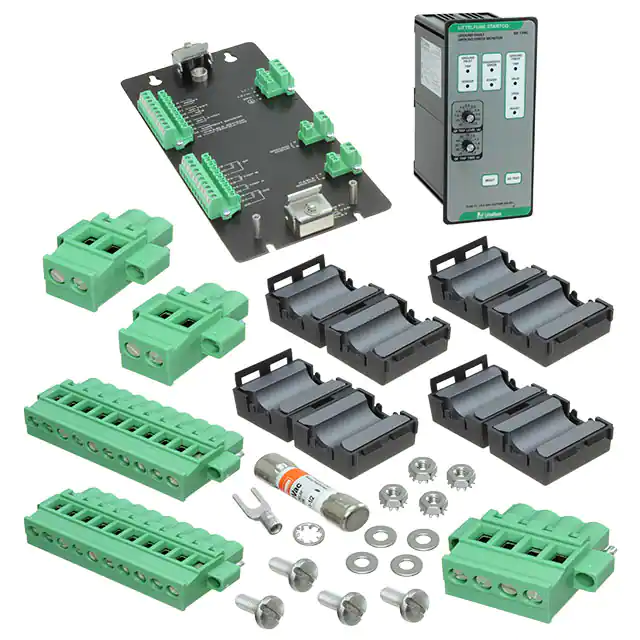

SE-134C-00GROUND CONTINUITY MONITOR |
9 |
|
Datasheet | SE-134C | Bulk | Active | Ground Fault | 120/240VAC/DC | - | 0.1 ~ 2.5s | Panel Mount | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | -40°C ~ 60°C |
|

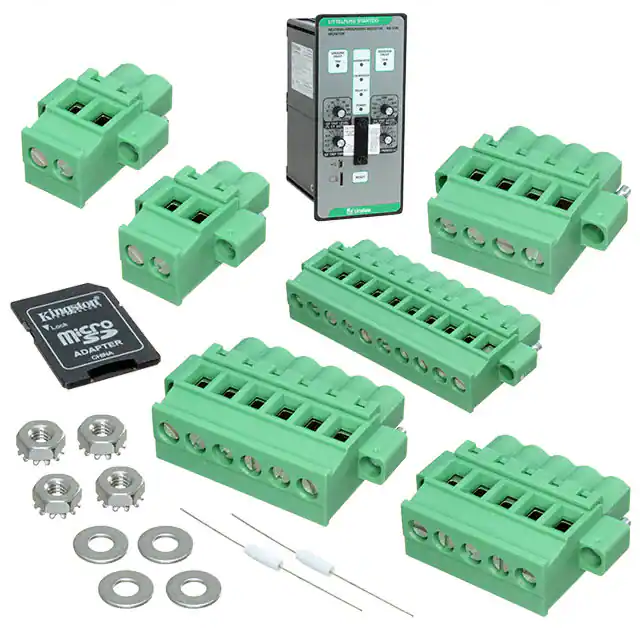

SE-330-00-00GRND RESISTOR RELAY UNIVERSAL |
3 |
|
Datasheet | SE-330 | Bulk | Active | Ground Fault | 120/240VAC/DC | 20 ~ 10000VAC | 0.1 ~ 10s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | -40°C ~ 60°C |
|

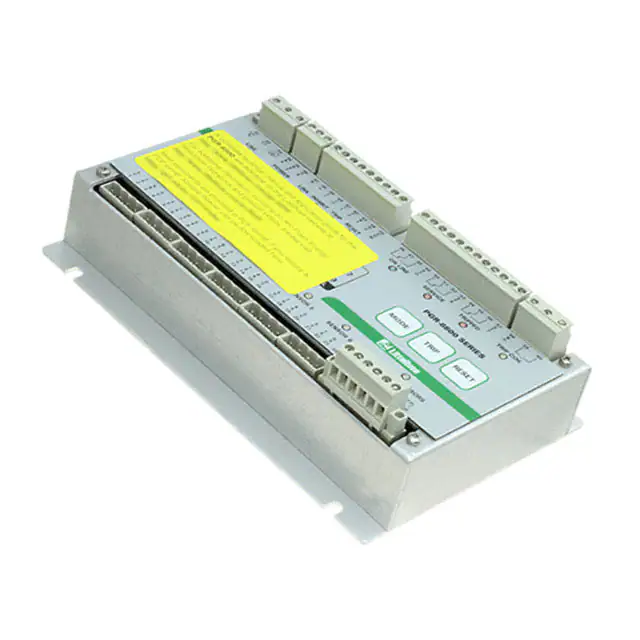

PGR-8800-00ARC-FLASH RELAY NO COMM. UL&C-TI |
3 |
|
Datasheet | PGR-8800 | Bulk | Active | Arc-Flash, Overcurrent | 100 ~ 240VAC, 110 ~ 250VAC, 14 ~ 48VDC | 9 ~ 25 klux | 0 ~ 20s | Chassis Mount, DIN Rail | Screw Terminal | - | -40°C ~ 70°C |
|
SE-330-03-00GRND RES RELAY ETHERNET UNIV |
2 |
|
Datasheet | SE-330 | Bulk | Active | Ground Fault | 120/240VAC/DC | 20 ~ 10000VAC | 0.1 ~ 10s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | -40°C ~ 60°C |
|

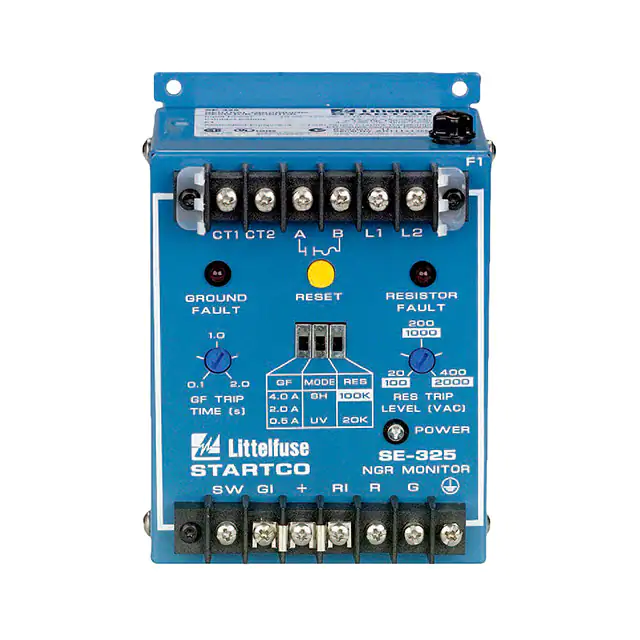

SE-325NGR MONITOR 120VAC SUPPLY |
2 |
|
Datasheet | SE-325 | Bulk | Active | Ground Fault | 120VAC | 0.5 ~ 4A | 0.1 ~ 2s | Chassis Mount | Screw Terminal | Manual Reset | - |
|

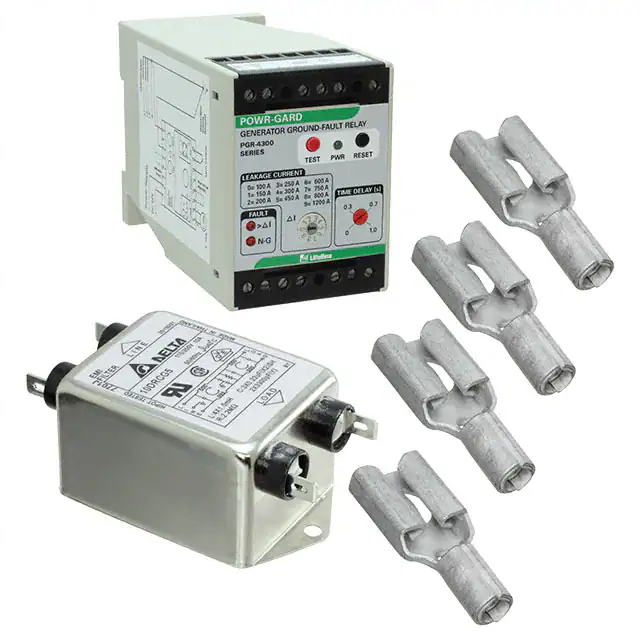

PGR-4300-24GEN GRND FAULT RELAY-24VDC SUP |
4 |
|
Datasheet | PGR-4300 | Bulk | Active | Ground Fault | 24VDC | 100 ~ 1200A | 0 ~ 1s | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset, Test Button | -10°C ~ 60°C |
|

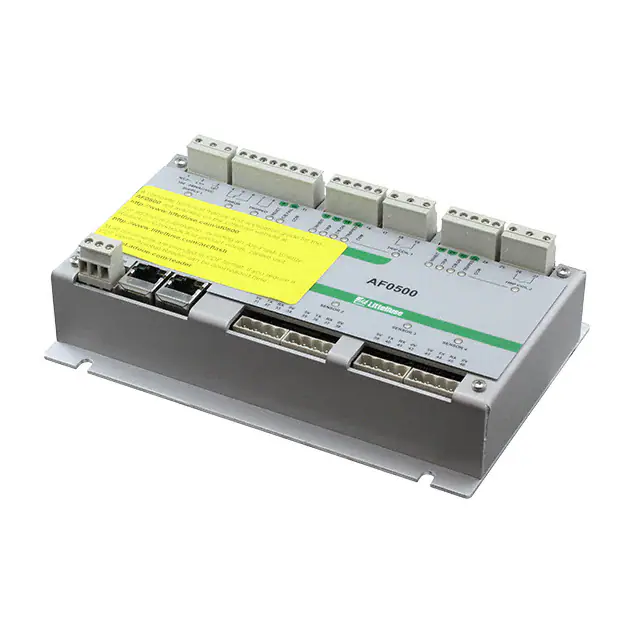

AF0500-00ARC-FLASH RELAY |
2 |
|
Datasheet | AF0500 | Bulk | Active | Arc-Flash | 100 ~ 240VAC, 110 ~ 250VDC, 24 ~ 48VDC | - | - | Chassis Mount | Screw Terminal | - | -40°C ~ 70°C |
|
|
SE-330-20-00GRND RES RELAY LOCAL ONLY DC SUP |
2 |
|
Datasheet | SE-330 | Bulk | Active | Ground Fault | 48VDC | 20 ~ 10000VAC | 0.1 ~ 10s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | -40°C ~ 60°C |
|
77C1-PHASE OVERLOAD RELAY/ 100-24 |
3 |
|
Datasheet | 77C | Bulk | Active | - | 100 ~ 240VAC | 100 ~ 240V AC | - | Chassis Mount | - | - | -20°C ~ 70°C |
|
777-575-P23-PH OVERLOAD REL./500-600V/ |
16 |
|
Datasheet | 777/77C | Bulk | Active | Multiple | 500 ~ 600VAC | 2 ~ 800A, 450 ~ 660VAC | 0 ~ 999s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
