Protection Relays & Systems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Voltage - Supply | Trip Range | Delay Time | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

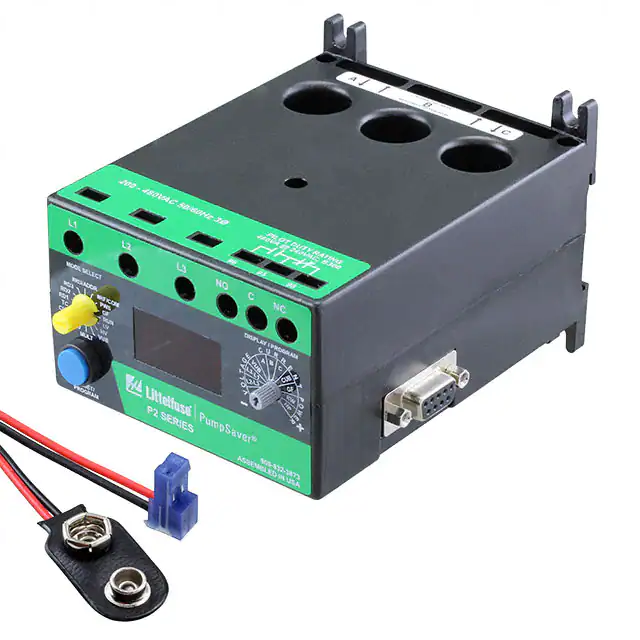

777-575-KW/HP-P23-PHASE POWER MONITOR/500-600V |
3 |
|
Datasheet | 777-KW/HP-P2 | Bulk | Active | Multiple | 500 ~ 600VAC | 2 ~ 800A, 450 ~ 660VAC | 0 ~ 999s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
SE-704-0UMONITOR EARTH LEAKAGE 120/240VAC |
2 |
|
Datasheet | SE-704 | Bulk | Active | Ground Fault | 120 ~ 240VAC/DC | 0.01 ~ 5A | 0.03 ~ 20s | DIN Rail | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | - |
|
SE-TA6TERM ASSY 5.6V 50W |
1 |
|
Datasheet | SE-TA6 | Bulk | Active | Ground Fault | - | - | - | Chassis Mount | Screw Terminal | - | - |
|
SE-704-0DSENSITIVE GF RELAY 9 36 VDC |
0 |
|
Datasheet | SE-704 | Bulk | Active | Ground Fault | 12 ~ 24VDC | 0.01 ~ 5A | 0.03 ~ 20s | DIN Rail | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | - |
|
SE-601-0UDC GRND FAULT RELAY 55-75 VDC SU |
0 |
|
Datasheet | SE-601 | Bulk | Active | Ground Fault, Overcurrent | 120 ~ 240VAC/DC | 1 ~ 20mA | 0.05 ~ 2.5s | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset, Test Button | -40°C ~ 60°C |
|
SE-701-0DMONITOR GRND FAULT RELAY 12/24V |
0 |
|
Datasheet | SE-701 | Bulk | Active | Ground Fault | 12 ~ 24VDC | - | 0.05 ~ 2.5s | DIN Rail | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | - |
|
PGR-3200-120GROUND FAULT&INSUL MONITOR 120V |
1 |
|
Datasheet | PGR-3200 | Bulk | Active | Ground Fault | 120VAC | - | - | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset, Test Button | -10°C ~ 60°C |
|
SE-135-00GROUND-FAULT GROUND CHECK MON |
1 |
|
Datasheet | SE-135 | Bulk | Active | Ground Fault | 65 ~ 265VAC, 85 ~ 275VDC | - | 0.1 ~ 2.5s | Panel Mount | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | -40°C ~ 60°C |
|
SE-330-00-01NGR MONITOR NC |
1 |
|
Datasheet | SE-330 | Bulk | Active | Ground Fault | 120/240VAC/DC | 20 ~ 10000VAC | 0.1 ~ 10s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | -40°C ~ 60°C |
|
SE-330AU-00-00NEUTRAL-EARTHING-RESISTOR MONITO |
0 |
|
Datasheet | SE-330AU | Bulk | Active | Ground Fault | 120 ~ 240VAC/DC | 0.125 ~ 30A | 0.1 ~ 0.5s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | - |
|
SE-134C-10GFGC MONITOR LOW VOLTAGE |
1 |
|
Datasheet | SE-134C | Bulk | Active | Ground Fault | 24 ~ 48VDC | - | 0.1 ~ 2.5s | Panel Mount | Screw Terminal | CT Loop Monitoring, Harmonic Filtering, Manual Reset, Test Button | -40°C ~ 60°C |
|
777-KW/HP-P23-PHASE POWER MONITOR/200-480V |
1 |
|
Datasheet | 777-KW/HP-P2 | Bulk | Active | Multiple | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
777-LR-KW/HP-P23-PHASE POWER MONITOR/200-480V |
1 |
|
Datasheet | 777-KW/HP-P2 | Bulk | Active | Multiple | 200 ~ 480VAC | 1 ~ 800A, 170 ~ 528VAC | 0 ~ 999s | DIN Rail | Screw Terminal | - | -20°C ~ 70°C |
|
|
777-TS3-PHASE OVERLOAD RELAY/190-480 |
1 |
|
Datasheet | 777/77C | Bulk | Active | Multiple | 200 ~ 480VAC | 2 ~ 800A, 170 ~ 528VAC | 0.2 ~ 500s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
EL731-00-00AC/DC EARTH-LKGE RELAY 75-275V |
1 |
|
Datasheet | EL731 | Bulk | Active | Ground Fault, Overtemperature | 120 ~ 240VAC/DC | 0.03 ~ 5A | 0.05 ~ 2s | Panel Mount | Spring Terminal | CT Loop Monitoring, Harmonic Filtering | - |
|

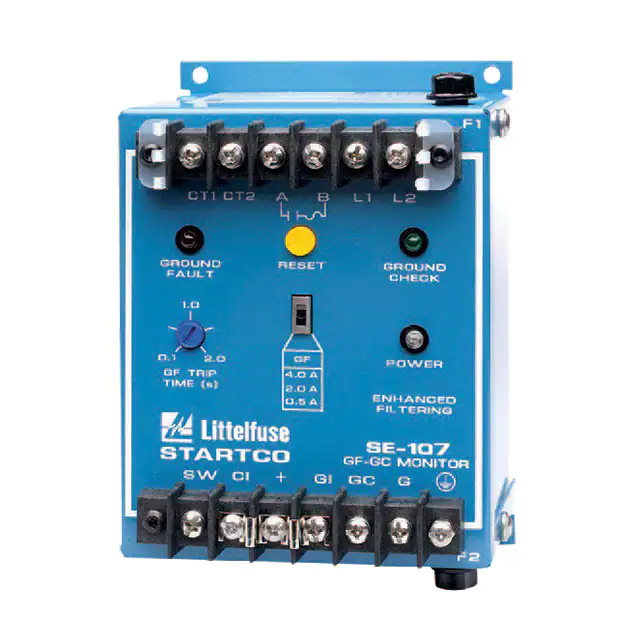

SE-107GROUND-FAULT GROUND-CHECK MON |
1 |
|
Datasheet | SE-107 | Bulk | Active | Ground Fault | 120VAC | 0.5 ~ 5A | 0.1 ~ 1s | Chassis Mount | Screw Terminal | Automatic Reset, Manual Reset | - |
|
AF0100-00ARC-FLASH RELAY, UNIVERSAL SUPPL |
0 |
|
Datasheet | AF0100 | Bulk | Active | Arc-Flash | 100 ~ 240VAC/DC, 24 ~ 48VDC | 10 ~ 25 klux | - | Chassis Mount, DIN Rail | Screw Terminal | - | -40°C ~ 70°C |
|
SE-601-0D-CCSE-601-0D WITH CONFORMAL COATING |
0 |
|
Datasheet | SE-601 | Bulk | Active | Ground Fault, Overcurrent | 12 ~ 24VDC | 0.1 ~ 0.2A | 0.5 ~ 2.5s | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset, Test Button | -40°C ~ 85°C |
|
PGR-6100-240MOTOR GROUND FAULT & INSUL RELAY |
1 |
|
Datasheet | PGR-6100 | Bulk | Active | Ground Fault | 240VAC | 10mA ~ 3A | 0.05 ~ 1s | Chassis Mount, DIN Rail | Screw Terminal | Harmonic Filtering, Manual Reset, Test Button | - |
|
RES100KNGR MONITOR TEST RESISTOR 100 KO |
1 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - |
