Protection Relays & Systems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Voltage - Supply | Trip Range | Delay Time | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AF0025-00SIMPLIFIED ARC-FLASH RELAY |
0 |
|
Datasheet | AF0025 | Box | Active | Arc-Flash, Undervoltage | 24VDC | 3klux | 0.005s | Chassis Mount, DIN Rail | Screw Terminal | Manual Reset | -40°C ~ 70°C |
|
|
777-HVR-KW/HP-P23-PH POWER MONITOR/340-480V/ |
1 |
|
Datasheet | 777-KW/HP-P2 | Bulk | Active | Multiple | 340 ~ 480VAC | 2 ~ 800A, 340 ~ 528VAC | 0 ~ 999s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
SE-325ENGR MONITOR 240VAC SUPPLY |
1 |
|
Datasheet | SE-325 | Bulk | Active | Ground Fault | 240VAC | 0.5 ~ 4A | 0.1 ~ 2s | Chassis Mount | Screw Terminal | Manual Reset | - |
|
EL731-20-00AC/DC EARTH-LKGE RELAY |
1 |
|
Datasheet | EL731 | Bulk | Active | Ground Fault, Overtemperature | 24VDC | 0.03 ~ 5A | 0.05 ~ 2s | Panel Mount | Screw Terminal | CT Loop Monitoring, Harmonic Filtering | -40°C ~ 60°C |
|
MPU-32-04-00MPR W/TIA-232/ETHERNET |
1 |
|
Datasheet | POWR-GARD® | Bulk | Active | Multiple | 65 ~ 265VAC, 80 ~ 275VDC | - | - | Panel Mount | Screw Terminal | - | -40°C ~ 60°C |
|
SE-330-03-01NGR MONITOR NC ETHERNET |
1 |
|
Datasheet | SE-330 | Bulk | Active | Ground Fault | 120/240VAC/DC | 20 ~ 10000VAC | 0.1 ~ 10s | Panel Mount | Screw Terminal | Harmonic Filtering, Manual Reset | -40°C ~ 60°C |
|
RES020KNGR MONITOR TEST RESISTOR 20 KOH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - |
|
|
RES200KNGR MONITOR TEST RESISTOR 200 KO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - |
|
|
777-P2-DEMO777-P2 STANDALONE DEMO |
0 |
|
- |
777 | Bulk | Obsolete | Multiple | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | Screw Terminal | Demo Kit with CIO-EN | -20°C ~ 70°C |
|
|
777-P2-DEMO-2P2 DEMO KIT W/ RM1K |
0 |
|
- |
777 | Bulk | Obsolete | Multiple | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | Screw Terminal | Demo Kit with CIO-EN and RM-1000 | -20°C ~ 70°C |
|
77C-KW/HP1-PHASE POWER MONITOR/ 100-240 |
0 |
|
Datasheet | 77C-KW/HP | Bulk | Active | Arc-Flash, Overload | 100 ~ 240VAC | 2 ~ 90A, 85 ~ 264VAC | 0.2 ~ 500s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
|
77C-LR1-PHASE OVERLOAD RELAY/ 100-24 |
0 |
|
Datasheet | 77C | Bulk | Active | Multiple | 100 ~ 240VAC | 1 ~ 9A, 85 ~ 264VAC | 0.2 ~ 500s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
|
77C-LR-KW/HP1-PHASE POWER MONITOR/ 100-240 |
0 |
|
Datasheet | 77C-KW/HP | Bulk | Active | Arc-Flash, Overload | 100 ~ 240VAC | 1 ~ 9A, 85 ~ 264VAC | 0.2 ~ 500s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
|
|
D1200.0010CAPACITOR TRIP UNIT |
0 |
|
- |
D1200 | Bulk | Obsolete | Arc-Flash | 220 ~ 250VAC, 200 ~ 300VDC | - | - | - | - | - | - |
|
|
777-P2-DEMO-3P2 DEMO KIT W/ RM1K RM2K |
0 |
|
- |
777 | Bulk | Obsolete | Multiple | 200 ~ 480VAC | 200 ~ 480V AC | - | Chassis Mount | Screw Terminal | Demo Kit with CIO-EN and RM-1000/2000 | -20°C ~ 70°C |
|
SE-100TGROUND FAULT MONITOR |
0 |
|
Datasheet | - | Bulk | Active | Ground Fault | 120VAC | - | - | Chassis Mount | Screw Terminal | Test Button | -40°C ~ 50°C |
|

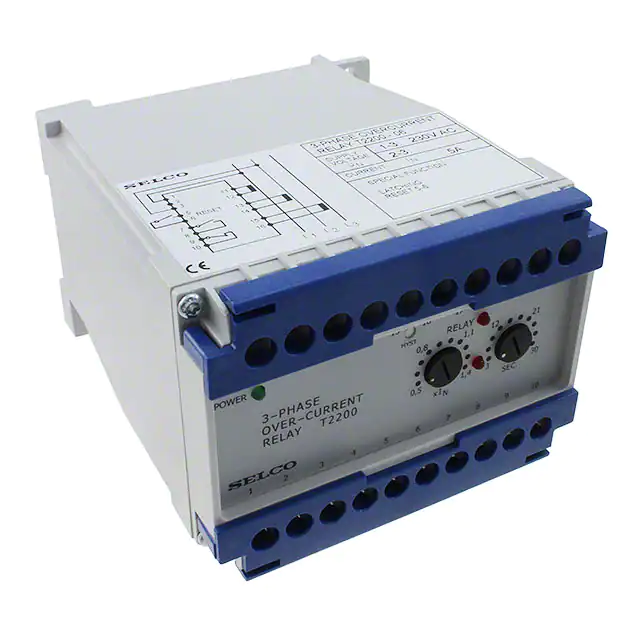

T2200.0030OVERCURRENT RELAY |
1 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Overcurrent | 230VAC | - | 3 ~ 30s | Chassis Mount | Screw Terminal | Automatic Reset | -20°C ~ 70°C |
|

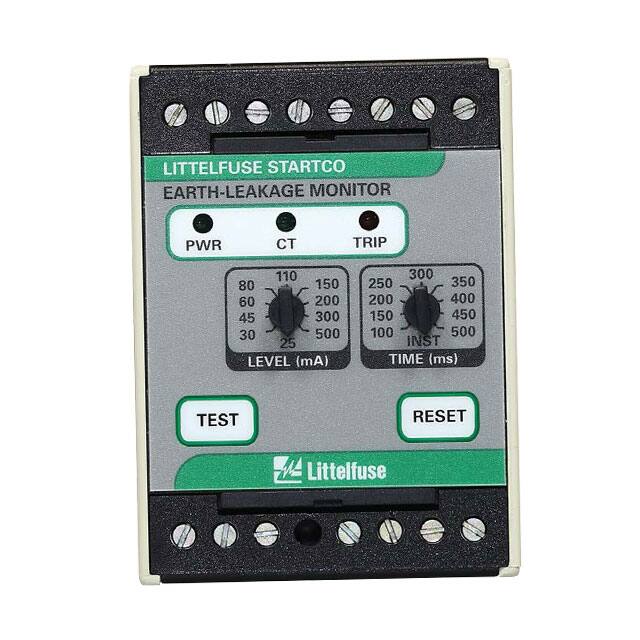

SE-703-03MONITOR EARTH LEAKAGE 24VDC |
0 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - |
|
SE-703-0UMONITOR EARTH LEAKAGE 120/240VAC |
0 |
|
Datasheet | * | Bulk | Obsolete | - | - | - | - | - | - | - | - |
|
|
777-575-LR-P23-PHASE OVERLOAD RELAY/500-600 |
0 |
|
Datasheet | 777/77C | Bulk | Active | Multiple | 500 ~ 600VAC | 1 ~ 800A, 170 ~ 528VAC | 0 ~ 999s | Chassis Mount | Screw Terminal | - | -20°C ~ 70°C |
